5G N12 Interface Emulation

MAPS™ 5G-N12 interface can emulate and test Authentication Server Function (AUSF) and Access and Mobility Management Function (AMF) elements via the Nausf service-based N12 interface.

  Brochure
MAPS™ 5G N12 Interface Simulation

Overview

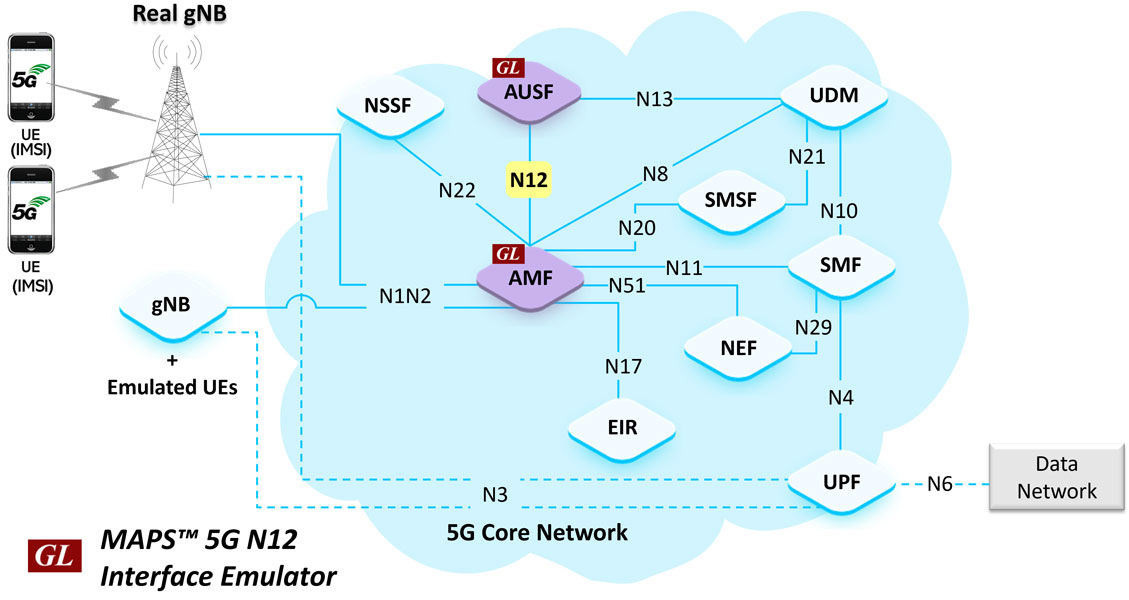

MAPS™ 5G N12 interface can emulates AUSF, within the 5G Core Network offering services to the AMF via the Nausf service based N12 interface.

MAPS™ N12 Interface Emulator supported Procedures are -

  • Nausf_UEAuthentication (Authentication and Key Agreement)
  • Authentication Result Removal with 5G AKA method

GL has enhanced its MAPS™ protocol emulation tool to emulate multi-protocol and multi-interface offering a complete range of test solutions, covering the entire 2G, 3G, 4G and 5G network.

By mimicking real-world customer behavior in lab environments, our solutions allow mobile operators and equipment manufacturers to verify their 5G networks before deployment.

GL also provides a GUI based Multi-Protocol Analyzer for on-line capture and decode of the signaling in real-time both during tests and as a stand-alone tracer for live systems.

GL's Message Automation & Protocol Simulation (MAPS™) 5G System as a service-based architecture, includes a set of Network Functions (NFs) providing services as defined in 3GPP standards. The service-based interfaces use HTTP/ HTTP2 protocol with JavaScript Object Notation (JSON) as the application layer serialization protocol.

Main Features

  • Emulates AUSF and AMF elements
  • Supports Authentication and Key Agreement (AKA) and Authentication Result Removal with 5G AKA method services via Nausf service based N12 interface
  • Services use REST APIs based on HTTP and JSON data format
  • Supports TLS and TCP transports
  • Supports scripted call generation and automated call reception
  • Supports customization of call flow and message templates to create valid and invalid scenarios
  • Ready-to-use scripts for quick testing
  • Provides Call Statistics and Events Status
  • Emulates Multiple Subscribers using CSV Profiles
  • Automation, Remote access, and Schedulers to run tests 24/7

Supported Protocols Standards

Protocols Standards

Protocols Standards

Supported Protocols
Standard / Specification

N12 Interface (AUSF - AMF)

TS29.509 Release 17, version 0.0.0

JavaScript Object Notation (JSON)

IETF RFC 8259

HTTP
HTTP/2

IETF RFC 7231
IETF RFC 7540/RFC 7541

TLS

IETF RFC 8446

TCP

IETF RFC 793

IPv4

IETF RFC 791 [5]
IETF RFC 2460 [6]

Use Cases

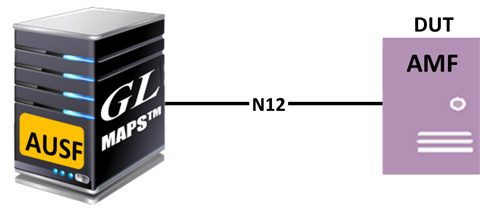

MAPS™ N12 configured as AUSF to test AMF (DUT)

MAPS™ N12 configured as AUSF to test AMF (DUT)

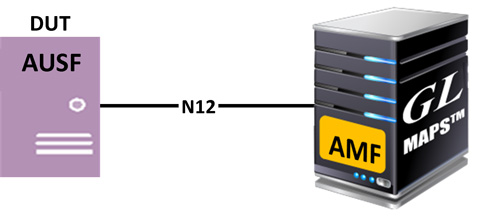

MAPS™ N12 configured as AMF to test AUSF (DUT)

MAPS™ N12 configured as AMF to test AUSF (DUT)

5G N12 Interface Procedures

In 5G N12 interface, MAPS™ acts as either AMF to test AUSF or SMF to test AMF simulating the following procedures.

  • Nausf_UEAuthentication (Authentication and Key Agreement)
  • Authentication Result Removal with 5G AKA method
UE Authentication Service

UE Authentication Service

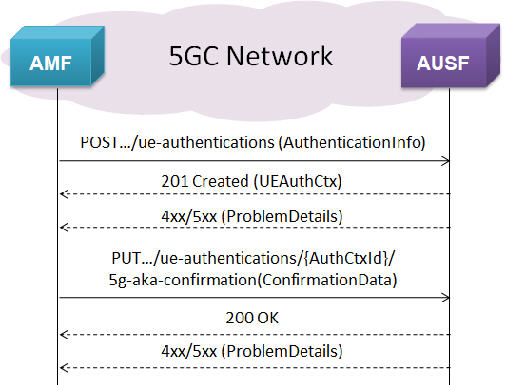

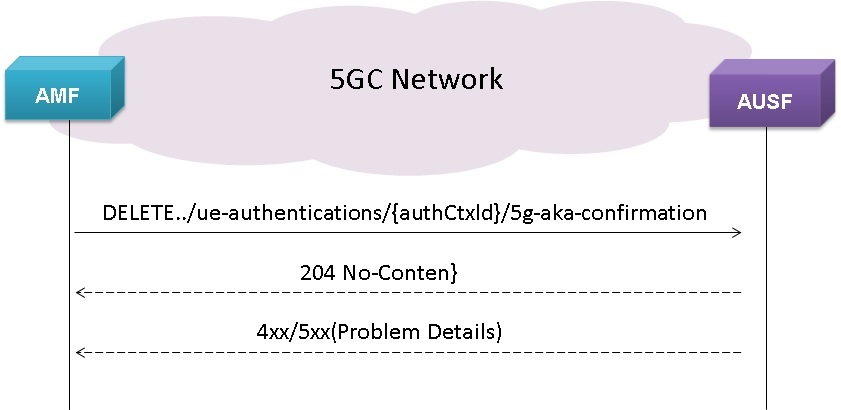

Authentication Result Removal with 5G AKA method

Authentication Result Removal with 5G AKA method


The below figures depict the Call Generation and Reception of 5G N12 interface between AMF and AUSF.

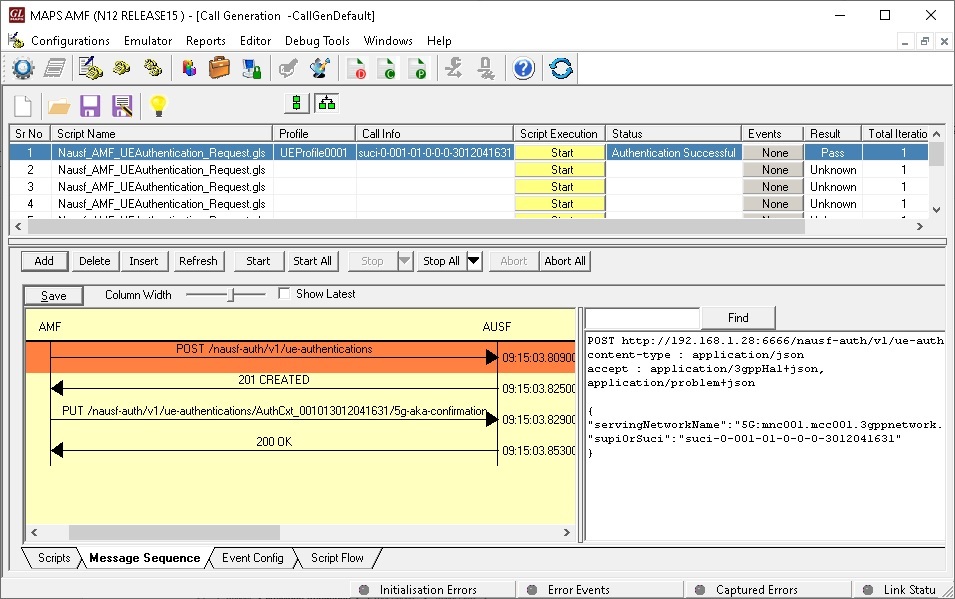

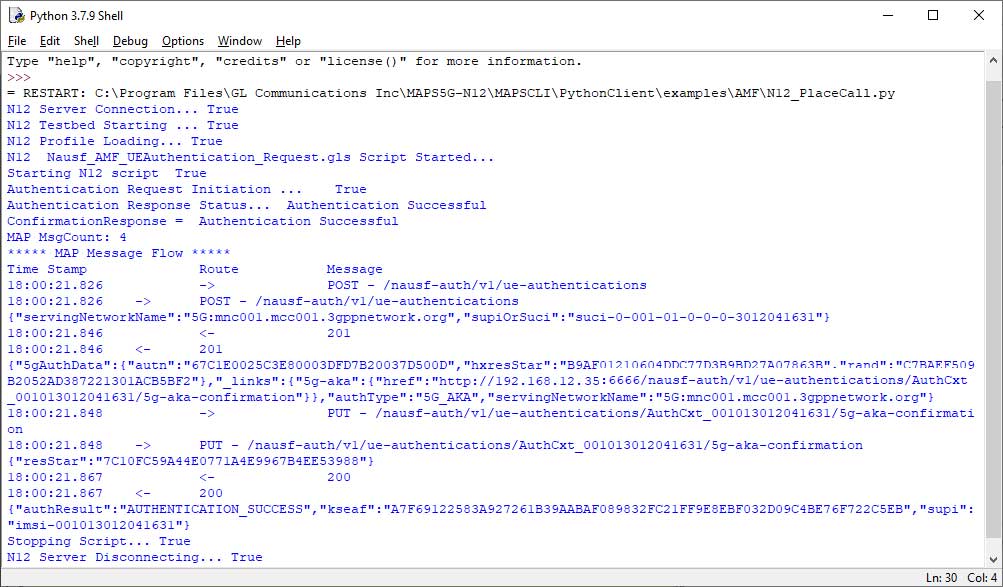

5G N12 interface Call Generation at AMF Node

5G N12 interface Call Generation at AMF Node

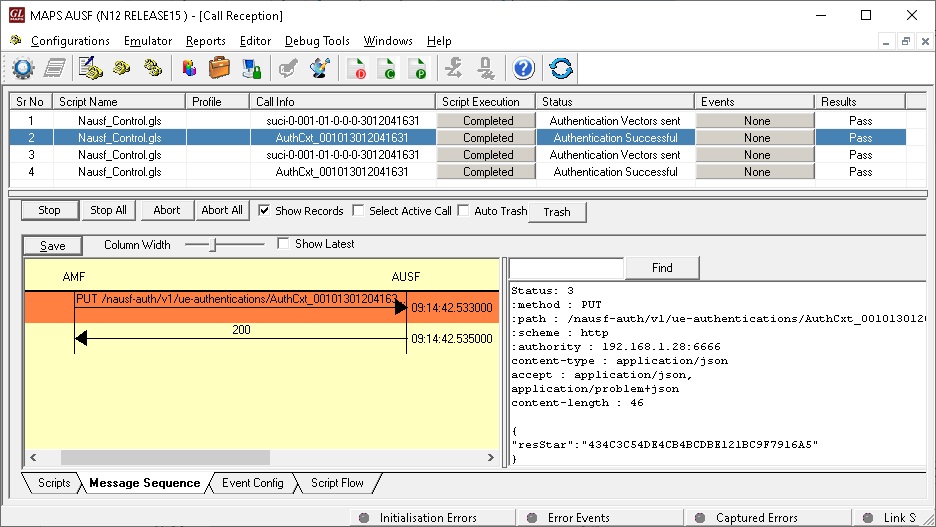

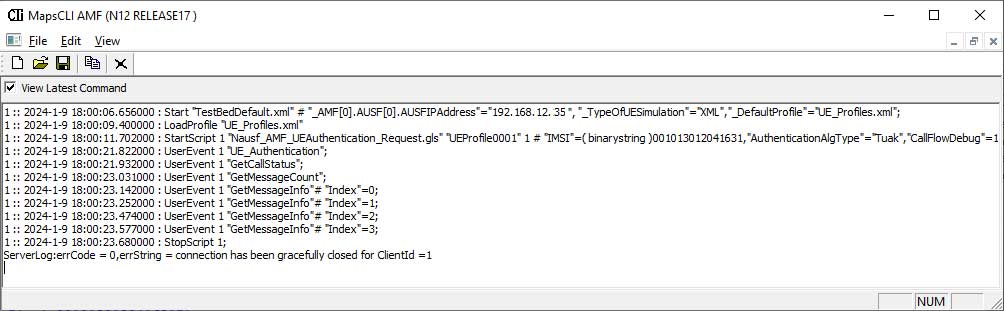

5G N12 interface Call Reception at AUSF Node

5G N12 interface Call Reception at AUSF Node

Resources

Please Note: The XX in the Item No. refers to the hardware platform, listed at the bottom of the Buyer's Guide, which the software will be running on. Therefore, XX can either be ETA or EEA (Octal/Quad Boards), PTA or PEA (tProbe Units), UTA or UEA (USB Units), HUT or HUE (Universal Cards), and HDT or HDE (HD cards) depending upon the hardware.
