5G N20 Interface Emulation

MAPS™ 5G-N20 can emulate and test Access and Mobility Management Function (AMF) and Short Message Service Function (SMSF) entities in 5G Core Network (5GC) elements via the service-based N20 interface.

  Brochure
MAPS™ 5G N20 Interface Simulation

Overview

MAPS™ 5G N20 interface can emulate Access and Mobility Management Function (AMF), within the 5G Core Network offering services to Short Message Service Function (SMSF) via the service based N20 interface.

MAPS™ N20 Interface emulator supports Nudm_UEAuthentication Services : Get and ResultConfirmation operations.

GL has enhanced its MAPS™ protocol emulation tool to emulate multi-protocol and multi-interface offering a complete range of test solutions, covering the entire 2G, 3G, 4G and 5G network.

By mimicking real-world customer behavior in lab environments, our solutions allow mobile operators and equipment manufacturers to verify their 5G networks before deployment.

The product supports Mobile traffic core - GTP (ETH101) emulation for user-plane packet transmission and reception services between any two nodes in 5G network. Mobile Traffic Core - Gateway (ETH102) module allows emulation of Gateway Traffic to test media gateway telephony interfaces over IP. These modules also support generation and verification of data traffic such as Email, FTP, Web (HTTP), Video, and more.

GL also provides a GUI based Multi-Protocol Analyzer for on-line capture and decode of the signaling in real-time both during tests and as a stand-alone tracer for live systems.

GL's Message Automation & Protocol Simulation (MAPS™) 5G System as a service-based architecture, includes a set of Network Functions (NFs) providing services as defined in 3GPP standards. The service-based interfaces use HTTP/HTTP2 protocol with JavaScript Object Notation (JSON) as the application layer serialization protocol.

Main Features

  • Emulates Access and Mobility Management Function (AMF) and Short Message Service Function (SMSF) elements
  • Supports Nsmsf_SMService Procedure
  • Services use REST APIs based on HTTP and JSON data format
  • Supports TLS and TCP transports
  • Supports scripted call generation and automated call reception
  • Supports customization of call flow and message templates using Script Editor
  • Ready-to-use scripts for quick testing
  • Provides Call Statistics and Events Status
  • Emulates Multiple Subscribers using CSV Profiles

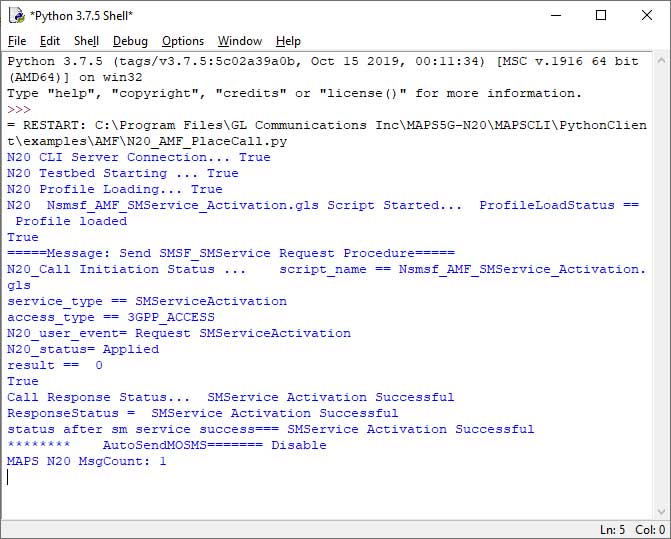

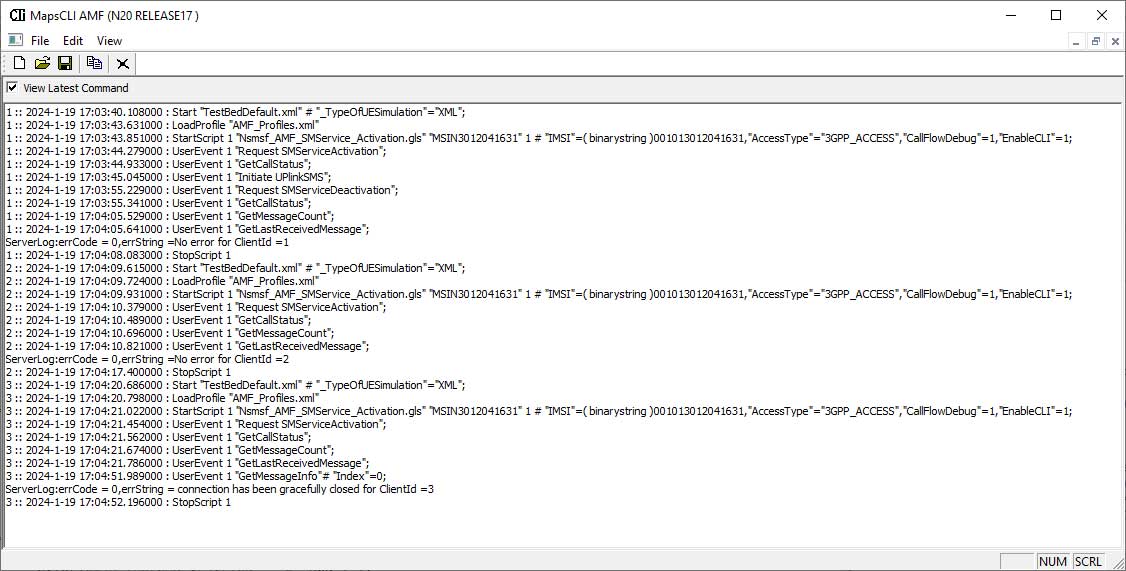

  • Automation, Remote access, and Schedulers to run tests 24/7

Supported Protocols Standards

Protocols Standards

Protocols Standards

Supported Protocols
Standard / Specification

N20 Interface (SMSF - AMF)

TS29.540 Release 16
TS29.518 Release 16

JavaScript Object Notation (JSON)

IETF RFC 8259

HTTP
HTTP/2

IETF RFC 7231
IETF RFC 7540/RFC 7541

TLS

IETF RFC 8446

TCP

IETF RFC 793

IPv4

IETF RFC 791 [5]
IETF RFC 2460 [6]

Use Cases

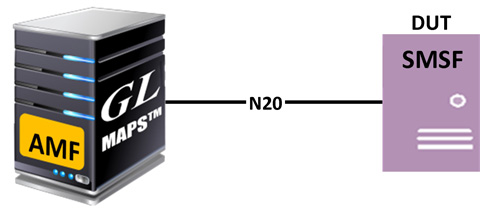

MAPS™ N20 configured as AMF to test SMSF (DUT)

MAPS™ N20 configured as AMF to test SMSF (DUT)

MAPS™ N20 configured as AMF (DUT) to test SMSF

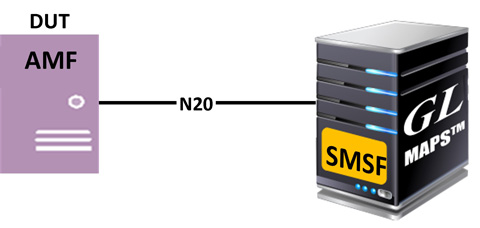

MAPS™ N20 configured as SMSF to test AMF (DUT)

5G N20 Interface Procedure

In 5G N20 interface, MAPS™ acts as either AMF to test SMSF or SMSF to test AMF emulating the procedure Nsmsf_SMService Operation.

Registration procedure using Activate service operation Services

Registration procedure using Activate service operation Services


The below figures depict the Call Generation and Reception of 5G N20 interface between AMF and SMSF.

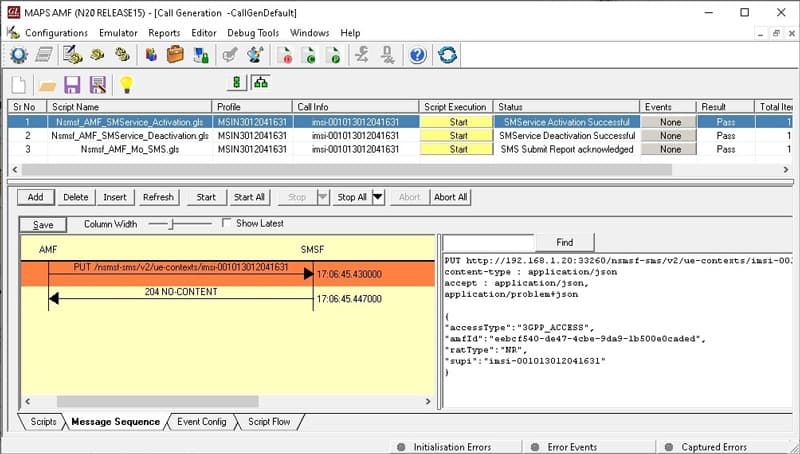

5G N20 interface Call Generation at AMF Node

5G N20 interface Call Generation at AMF Node

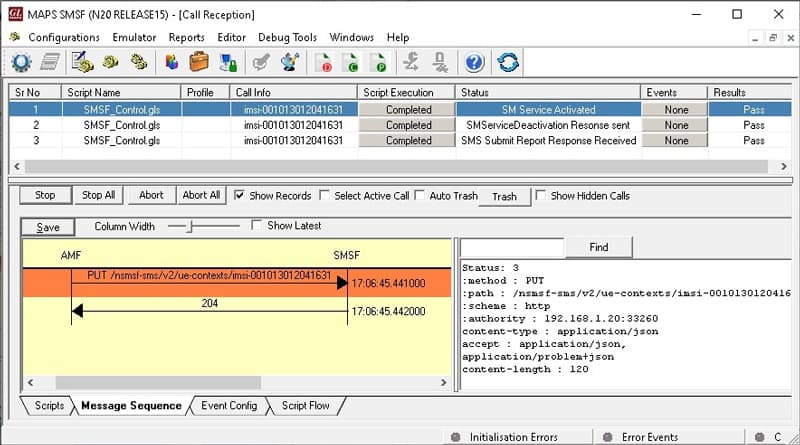

5G N20 interface Call Reception at SMSF Node

5G N20 interface Call Reception at SMSF Node

Resources

Please Note: The XX in the Item No. refers to the hardware platform, listed at the bottom of the Buyer's Guide, which the software will be running on. Therefore, XX can either be ETA or EEA (Octal/Quad Boards), PTA or PEA (tProbe Units), UTA or UEA (USB Units), HUT or HUE (Universal Cards), and HDT or HDE (HD cards) depending upon the hardware.

Item Description
PKS508 MAPS™ 5G N20 Interface Emulator (Requires PKS502)
PKS502 MAPS™ 5G Service based Emulation (Prerequisite base license for all service based (Open API) interface emulations)
  Related Software
PKS500 MAPS™ 5G N1/N2 Interface Emulator
PKS501 MAPS™ 5G N4 Interface Emulator
PKS503 MAPS™ 5G N8 Interface Emulator (Requires PKS502)
PKS504 MAPS™ 5G N10 Interface Emulator (Requires PKS502)
PKS505 MAPS™ 5G N11 Interface Emulator (Requires PKS502)
PKS506 MAPS™ 5G N12 Interface Emulator (Requires PKS502)
PKS507 MAPS™ 5G N13 Interface Emulator (Requires PKS502)
PKS502 MAPS™ 5G N17 Interface Emulator
PKS509 MAPS™ 5G N21 Interface Emulator (Requires PKS502)
  GTP Mobile Traffic Options
ETH100 Packet Traffic Simulation - GTP
ETH101 Mobile Traffic Core - GTP
ETH102 Mobile Traffic Core - Gateway
