5G N13 Interface Emulation
MAPS™ 5G-N13 can emulate and test Authentication Server Function (AUSF) and User Data Management (UDM) elements via the Nausf service-based N13 interface.
BrochureOverview
MAPS™ 5G N13 interface can emulate Authentication Server Function (AUSF), within the 5G Core Network offering services to User Data Management (UDM) via the Nausf and Nudm service-based N13 interface respectively
MAPS™ N13 Interface Emulator supported Procedures are -
- Nudm_UEAuthentication Services: Get and ResultConfirmation operations
GL has enhanced its MAPS™ protocol emulation tool to emulate multi-protocol and multi-interface offering a complete range of test solutions, covering the entire 2G, 3G, 4G and 5G network.
By mimicking real-world customer behavior in lab environments, our solutions allow mobile operators and equipment manufacturers to verify their 5G networks before deployment.
The product supports Mobile traffic core - GTP (ETH101) emulation for user-plane packet transmission and reception services between any two nodes in 5G network. Mobile Traffic Core - Gateway (ETH102) module allows emulation of Gateway Traffic to test media gateway telephony interfaces over IP. These modules also support generation and verification of data traffic such as Email, FTP, Web (HTTP), Video, and more.
GL also provides a GUI based Multi-Protocol Analyzer for online capture and decode of the signaling in real-time both during tests and as a stand-alone tracer for live systems.
GL's Message Automation & Protocol Simulation (MAPS™) 5G System as a service-based architecture, includes a set of Network Functions (NFs) providing services as defined in 3GPP standards. The service-based interfaces use HTTP/2 protocol with JavaScript Object Notation (JSON) as the application layer serialization protocol.
Main Features
- Emulates Authentication Server Function (AUSF) and Unified Data Management (UDM) elements
- Supports Nudm_UEAuthentication Services Procedure
- Services use REST APIs based on HTTP and JSON data format
- Supports TLS and TCP transports
- Supports scripted call generation and automated call reception
- Supports customization of call flow and message templates to create valid and invalid scenarios
- Ready-to-use scripts for quick testing
- Provides Call Statistics and Events Status
- Emulates Multiple Subscribers using CSV Profiles

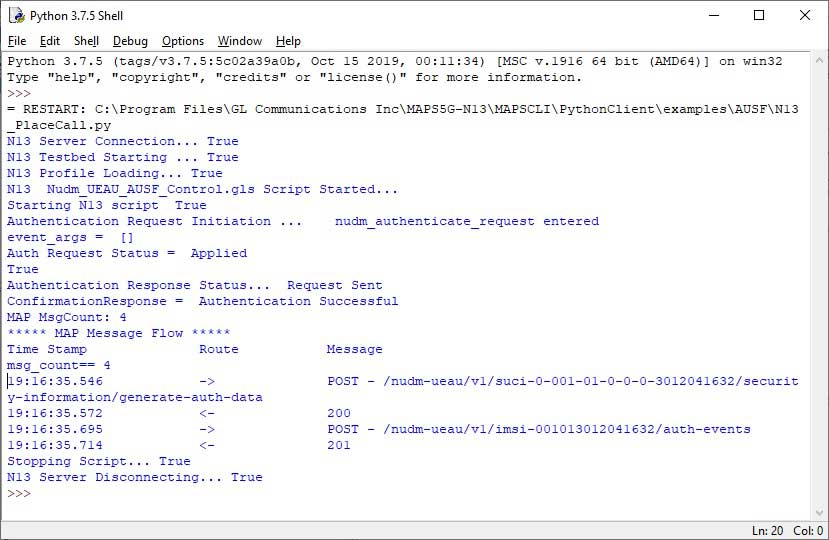

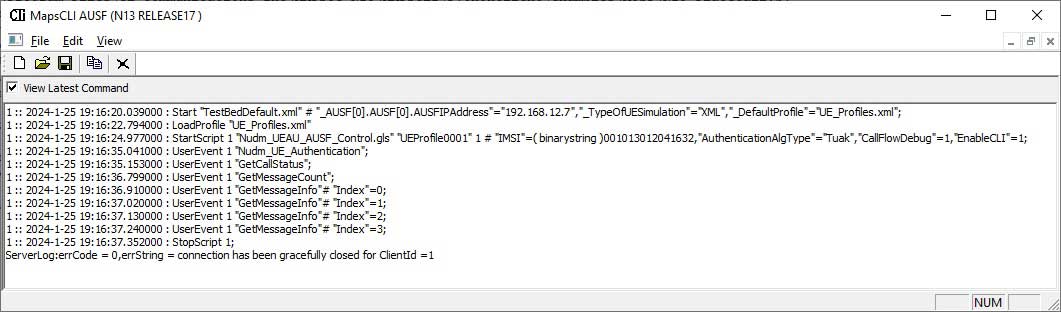

- Automation, Remote access, and Schedulers to run tests 24/7
Supported Protocols Standards
N13 Interface (UDM - AUSF) |
TS29.509 Release 17 |
JavaScript Object Notation (JSON) |
IETF RFC 8259 |
HTTP |
IETF RFC 7231 |
TLS |
IETF RFC 8446 |
TCP |
IETF RFC 793 |
IPv4 |
IETF RFC 791 [5] |
Use Cases
5G N13 Interface Procedures

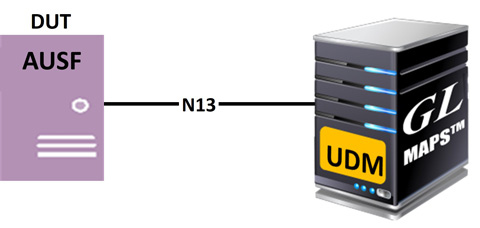

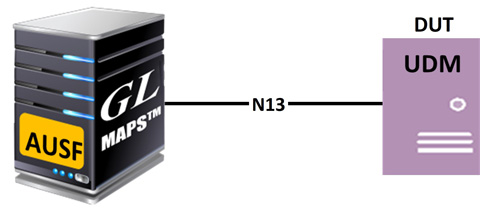

In 5G N13 interface, MAPS™ acts as either UDM to test AUSF or AUSF to test UDM emulating the following procedure.
- Nudm_UEAuthentication Services

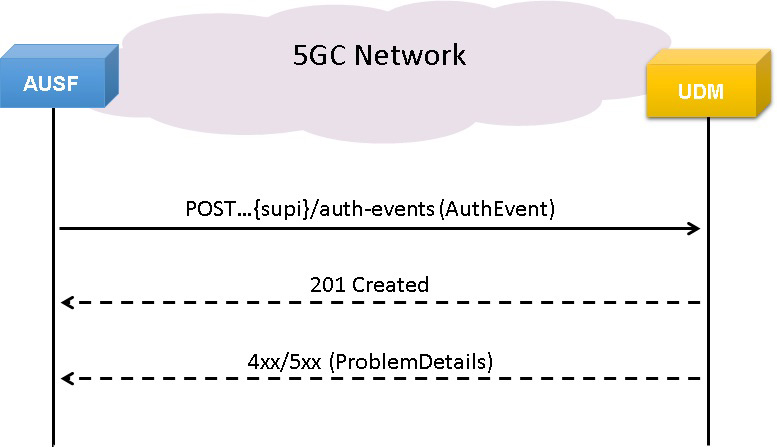

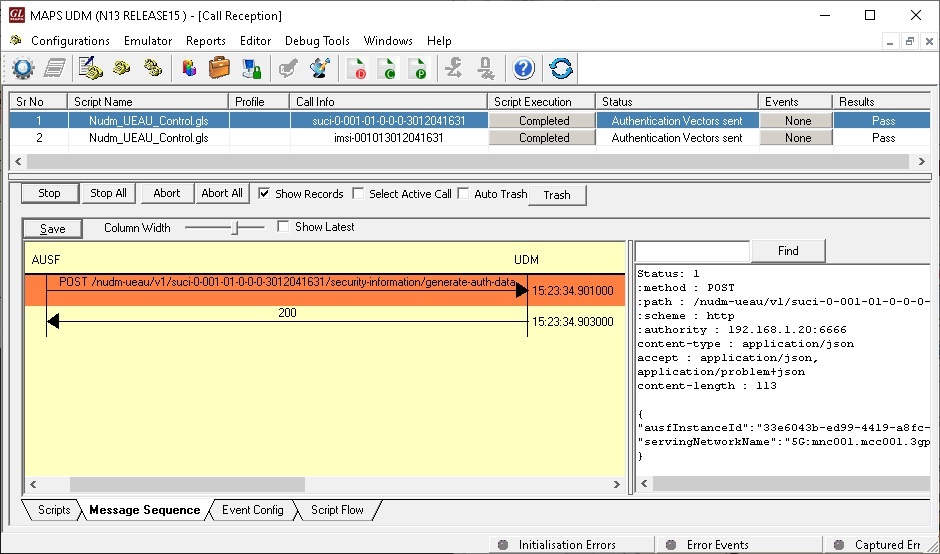

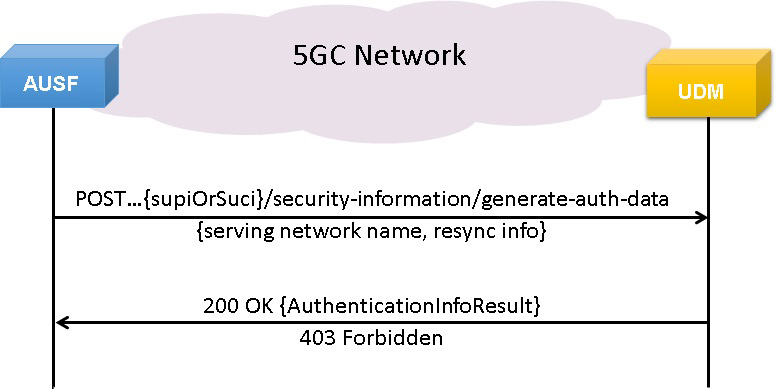

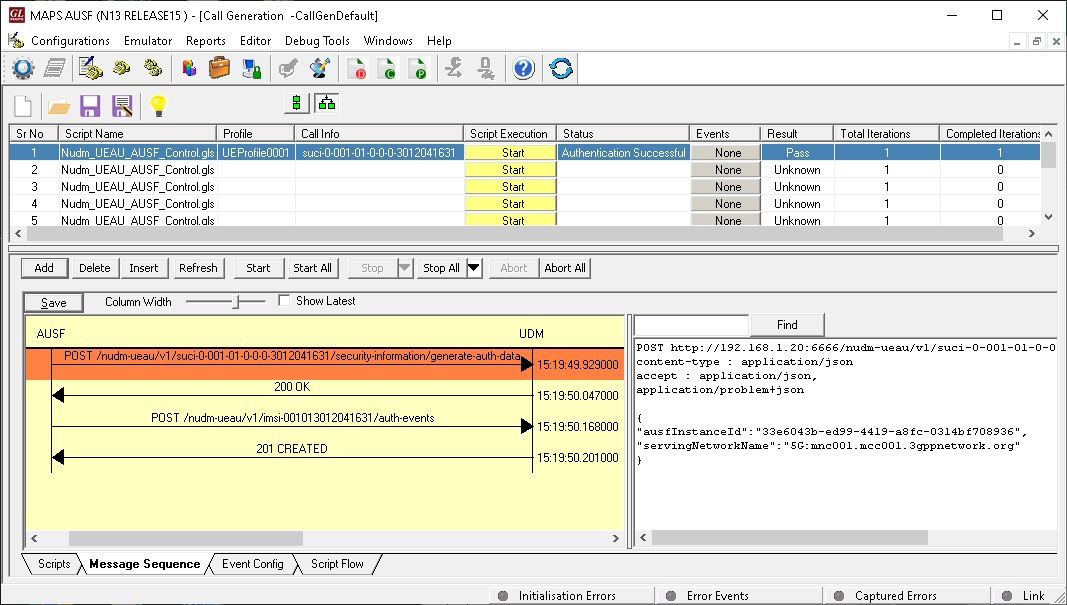

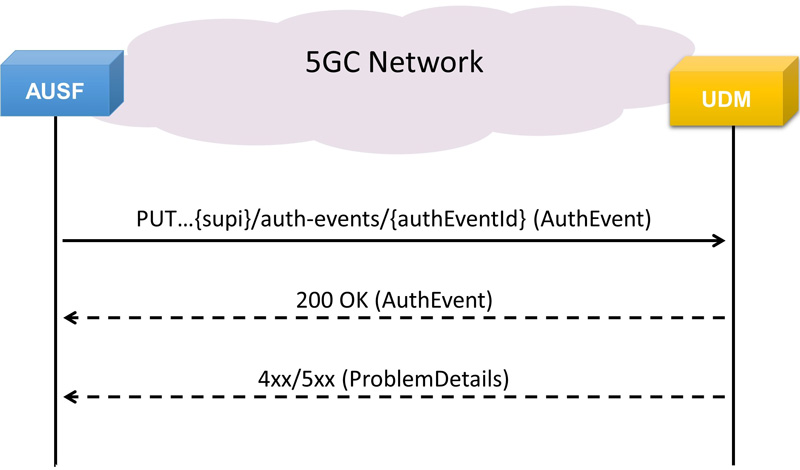

The below figures depict the Call Generation and Reception of 5G N13 interface between UDM and AUSF.
