Automated G.168 EC Compliance Testing of Gateways - TDM / VoIP Interfaces

Automated G.168 EC Compliance Testing of Gateways - TDM / VoIP Interfaces

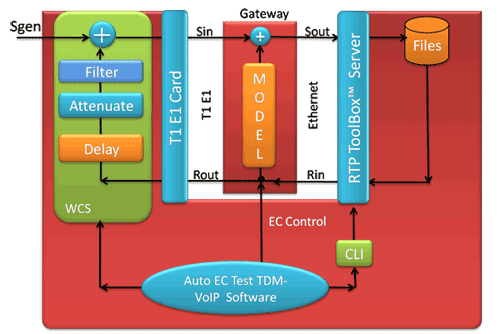

  • Automated testing of all G.168 cases using AutoEC TDM-VoIP application

  • Echo Path Loss (EPL), Echo Path Delay (EPD), and hybrid dispersion fully controllable in T1/E1 card

  • Use of RTP ToolBox™ (PKB100) and Client-Server (PKB110) for automation on IP side

  • Requires Dual HD T1/E1 card (HDT001 or HDE001) or USB T1 E1 Analyzer (UTE001)

  • Use of Windows Client Server (xx600, xx610, and xx630) for automation on TDM side

  • Automatic procedures are very similar to the procedures provided at Fully Automated EC Compliance Testing per G.168 for TDM systems

  • Test ECs in Gateways


Please Note: The XX in the Item No. refers to the hardware platform, listed at the bottom of the Buyer's Guide, which the software will be running on. Therefore, XX can either be ETA or EEA (Octal/Quad Boards), PTA or PEA (tProbe Units), UTA or UEA (USB Units), HUT or HUE (Universal Cards), and HDT or HDE (HD cards) depending upon the hardware..

Item No. Item Description
PKB080 AutoECTest TDM-VoIP Fully Automated EC Testing per G.168 for combined TDM-VoIP Interfaces
PKB100 RTP ToolBox™ (Included)
PKB110 Client / Server for RTP Toolbox™ (Included)
XX105 ISDN Emulator
  Related Software
PKB067 AutoECTest - Automatic G.168 Compliance Test Suite
PKV100 PacketScan™ (Online and Offline)
XX062 Echo Path Delay/Loss Simulation Software
XX630 DSP Functionality (Included)
XX610 Transmit and Receive File Capability (Included)
PKB081 Automated Acoustic Echo Cancellation (AEC) Compliance Test Software
  Related Hardware
HDT001/HDE001 Legacy HD T1 or E1 (PCI) Cards with Basic Analyzer Software
UTE001 Portable USB based Dual T1 or E1 Laptop Analyzer with Basic Analyzer Software

USB Cable 2.0 (portable only) (1)
5 V Power Adapter (1)
Short Crossover Cable (1)
  Recommended Accessories
SA013 T1 / E1 On Site Training Class (not including travel or hotel)
SA021 File Edit Software
SA026 Adobe Audition Multitrack Sound File Viewing and Editing Software
SA048 Goldwave Software
SA017A RJ48C to RJ48C Straight Cable, 10ft. cable
SA017A RJ48C to RJ48C Crossover Cable, 10ft. cable
SA008a Handset Adapter with Handset
SA022 Extended 1 Yr. Software Upgrades and Hardware Warranty, and Comprehensive Support for Basic and Optional Software
