Features
- Versatility
- Portability
- Flexibility
- Comprehensiveness
- Connect to Type II PCMCIA Slot or Enhanced Parallel Port (EPP)
- Single or Dual T1 / E1 Units
With Accompanying Basic Software
- Full / Fractional T1 and E1 BERT with Drop & Insert
- Transmit Tone, User-defined Multiframe, Signaling Bits, Noise
- Error Insertion
- Tx_Rx Loopback
- Measure Propagation Delay
- Precision Delay Measurement
- Monitor T1 / E1 Status
- Four Wire VF Interface with Drop & Insert
- Internal Speaker for DS0 Monitoring
- Clock options: Internal, External, & Recovered
- Connection Options: Terminate, Bridge, Monitor
- Extensive Use of Graphics for Rx Signal Monitoring
- Bytes Values Display for all time slots
- Monitor signaling bits
- Power Level Display for all time slots
- Frequency Display for all time slots
- Time Slot Byte Display
- Multiframe Byte Display
- Real Time Multiframe Monitoring
- Real Time Oscilloscope Display of DS0
- Real Time Power Spectral Display of DS0
With Various Optional Software (See Buyer's Guide)
- Record / Playback Disk Files
- Record from multiple cards
- Capture / Transmit Dialed Digits (DTMF / MF Detection and Generation)
- Scripted Control Test and Simulation Software
- Voice Quality Assesment
- Call Capture and Analysis (Full Duplex Capture w/ Dual Unit)
- Protocol Analysis (HDLC, LAP-D, Frame Relay, SS7, GR-303)
- Real-Time ISDN Protocol Analyzer
- T1/E1 Traffic Classifier
- Echo Path Delay/Loss Simulation/Measurement Software
- G.168 Echo Canceller Test Suite for T1 & E1 Systems
- MFC-R2 Capture & Analysis
- ESF Facility Data Link Software
- DCME Analyzer
- Multiplex/Demultiplex Feature
- Measure Loopdelay/ERL Feature
- Delay Attenuate Timeslots
- D-Channel capture and analysis
- Signaling Transitions Recording
- Scripted Control Software
Description

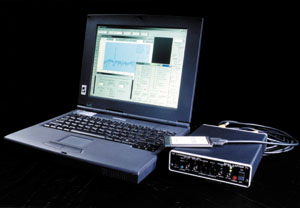

The Laptop T1 (E1) Analyzer is an innovative new product that consolidates the essential
pieces of industry-standard test equipment into a powerful, portable, PC-Based T1 (E1) testing solution. Utilizing
familiar computer user interfaces, it provides a comprehensive and versatile
T1 or E1 test set at a competitive price.
The Laptop T1 (E1)
transforms your notebook, laptop, or desktop computer into a sophisticated T1 or E1 analyzer.
The Laptop T1 (E1) features in-service monitoring of T1 (E1) circuit connections,
including 64-Kbps channels within a T1 or E1. It provides out-of-service troubleshooting, such as bit-error-rate testing. Drop
and Insert capabilities provide access to DS0s without disrupting service.
The Laptop T1 (E1) Analyzer can be used for routine testing of errors, such as bit errors,
frame errors, and bipolar violation; signals, including received frequency, received signal level,
and data bits; and timing including signal-loss seconds, test length etc. Alarm monitoring and time-stamped logging
provide windows into the network performance.
The Laptop T1
(E1) decodes all 24 (32) channels simultaneously for Signaling Bits, Power Level, Frequency and Multi-Frame
Data. DTMF / MF generation and detection, signaling bit manipulation and recording provide complete signaling capabilities.
Emulation of real networks can be achieved by using Delay Simulation, Sophisticated Error Insertion, and
Record/Playback capabilities.
Graphical views simplify the understanding
of PCM data. Time-domain is presented using an oscilloscope display, and frequency domain using spectral and spectrogram displays.
Voice Frequency Access: Besides providing
access to in-band PCM data, the Laptop T1 (E1) provides VF interface for monitoring and inserting audio with Drop and Insert. The unit also
provides convenient handset interface for voice over the T1 or E1 line.
Remote testing and monitoring can be done by remoting the PC using familiar software.
Precision Delay Measurement under basic software measures the Round trip Delay of a system. Round trip delay measurement is done by sending a BER pattern with the insertion
of an errored bit and timing the reception of the errored bit. Measurement is precise and accurate to the microsecond level. A delay up to 8 seconds can be measured.
The internal delay of the card is subtracted from the round trip delay.
Powered by rechargeable NiCad batteries, the unit operates for four hours on a single charge. An AC Adapter is also
provided.
Screenshots
(Note: these
pages all take approximately 30 seconds to load when using a 28.8K modem)
With Basic Software:
With Optional Software (See Buyer's Guide)
Specifications
Physical Interface
| T1/E1 Signal |
(Single) Tx and Rx Bantam Jacks; (Dual) Two RJ-45 Jacks |
| Audio Signal |
(Single) Tx and Rx Bantam Jacks, Handset RJ11 Interface; (Dual) Two Mini-Headphone Jacks |
| External Clock |
SMB Coaxial Jack(s) |
| PC Interface |
Parallel Port / PCMCIA Type II |
T1/E1 PCM Access
| Format |
DS-1 AMI or B8ZS Line Code (E1: HDB3) |
| Framing Format |
D4 Superframe, Extended Superframe, Unframed
(E1: CAS Mode & CCS Mode) | |
Input Frequency | 1.544 Mbps (E1: 2.048
Mbps) | | Input Impedance |
Terminate: 100 Ohms nominal Bridge: >1000 Ohms (E1: 120 Ohms Termination)
| | Input Level |
75 mV to 6V base to peak or -30 dBsx to -6 dBsx |
| Output Level |
3.0V ± 0.2 Base to Peak, Selectable 0-655 ft. Pulse Equalization Setting (T1 Short Haul)
or line build-outs for 0 dB to -22.5 dB (T1 Long Haul) | | Receiver Interface |
Terminate, Monitor, and Bridge |
| Output Clock Source |
Recovered, Internal (+/- 1 or 3 ppm), or External |
PCM Channel Simulation Sources
| Synthesized
Tone | 15 Hz to 3975 Hz selectable
in 1 Hz steps, +3.0 dBm to -40.0 dBm in 0.1 steps selectable, Frequency Sweep |
|---|
| Dual Tone |
Single or any combination of tones | | Supervision |
User defined states of A,B (C,D) bits |
| Signalling |
DTMF/MF Dialing Digits |
| File Playback |
User Created or Recorded file |
| Special Codes |
Milliwatt Codes, CSU Loop Up/Down Codes |
| Error Insertion | Bipolar Violation, Blue Alarms, Yellow
Alarms, Frame Error, CRC Errors, Bit Errors, Burst Frames, Fixed Error Rate, Random Error Rate, Remote Alarm, Distant Multiframe Alarm |
PCM Channel Receiver
| Displays for All Channels |
Signalling Bits, Power Level, Frequency, Data |
| Graphical Displays |
Oscilloscope, Spectral, Spectrogram, Signal-to-Noise |
| Signalling |
DTMF/MF Dialed Digit Detection and Analysis |
| Recorder | Record Full/Fractional T1/E1 Timeslots
to Hard Disk File |
Facility Data Link
| T1 ESF Mode |
Transmit/ Receive Messages, Bit-Oriented Messages, and Files |
Drop and Insert
| Digital/Analog |
Any Contiguous set of digital Timslots and/or Audio Input |
Pattern Generation
| BERT | 63(26
- 1), 511(29 - 1), 2047(211 - 1), 32767(215
- 1),1048575(220-1), 8388607(223 - 1), QRSS, All Ones, All Zeros, 1:1, 1:7, 3-IN-24, User Defined 24- Bits, Auto Logic &
BPV error insertion from 10-2 - 10-9 for selectable 56/64 Kbps channels |
| International, National & Extra Bits |
User Defined (E1) |
Result Display and Logging
| BERT |
Bit Errors, Bit Error Rate, Error Seconds, Error Free Seconds, %EFS, Severely Error Seconds,
%SES, Degraded Minutes, %Dmin, Loss Pattern Sync Count, Loss of Sync Seconds, Available Seconds, %Available Seconds, Unavailable Seconds. Bipolar Violations,
BPV Rate, BPV Seconds, BPV Free Seconds, Frame Errors, FE Rate, FE Seconds, FE Free Seconds, with detailed logging into disk file |
| Alarms |
Resync In Progress, Loss of Signal, Blue Alarm, Change Of Frame Alignment, Bipolar Violation, Frame
Error, Carrier Loss, Yellow Alarm, Out of Frame Events Counter, Errored Superframe Counter, Bipolar Violations Counter, Remote Alarm, Distant Multiframe
Alarm, Signalling All Ones, CAS Multiframe Error, CRC4 Error |
Audio Channel Access
| VF Input/Output Impedance |
600 Ohms |
| Audio Monitoring |
Built-in-speaker or Handset |
| Volume Control |
User Specified Software Controlled |
| Audio Insertion |
Selected DS0 replaced with inserted audio from VF Input or Handset with selected gain |
Propagation Delay
| Measurement |
Up to 2 Seconds |
Precision Delay
| Measurement |
Up to 8 Seconds |
Computer Requirement
| Pentium or better with MS-Windows
95 or 98, Enhanced Parallel Port or Type II PCMCIA Slot (with optional PCMCIA Adapter--SA015) |
Physical Dimensions
| Dimension |
8.2L x 5.8 W x 1.8
H | | Weight |
2 lbs. |
Specifications subject to change without notice.
