TDM Protocol Identifier



Overview

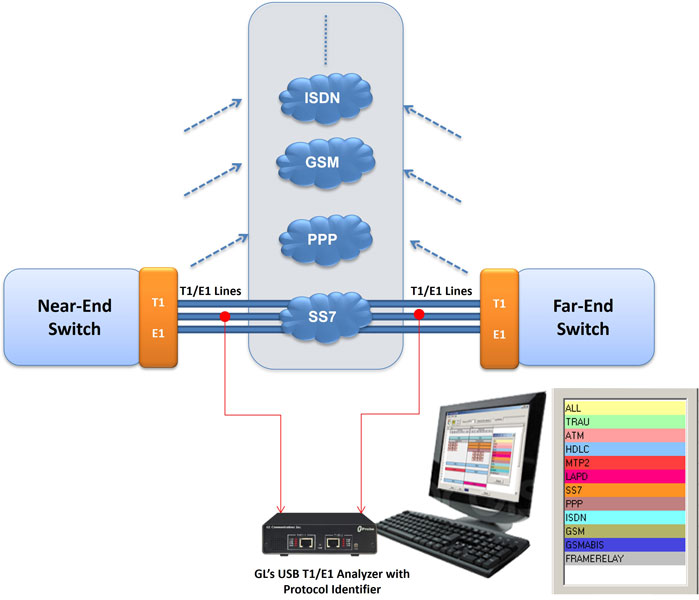

The Protocol Identifier application can identify various protocols carried on T1 or E1 lines. It is capable of detecting protocols such as ISDN, ATM, HDLC, MTP2, LAPD, SS7, PPP, GSM, GSM Abis, TRAU and Frame Relay. The timeslots and the subchannels within timeslots are also identified. Once identified, detailed analysis can be carried out by individual Protocol Analyzers. This application is helpful in identifying traffic types at a concentrated point, DSX patch panel, or multiplexed facility.



pdf
User's Guide

pdf
Product Brochure

View Presentation

Applications

  • Snapshot: Obtain a real-time snapshot of protocol traffic on T1E1 lines.

  • Surveillance : Identify protocol traffic on all the timeslots/sub channels simultaneously on multiple T1E1 lines.

  • Maintenance: Helps technicians to quickly identify the content of any T1 or E1.

  • Troubleshooting: Signaling (SS7, ISDN,) can be detected on any T1/E1 timeslots; this helps technicians to quickly identify the timeslot of signaling links for further protocol analysis

Main Features

  • Capable of identifying and classifying traffic over T1E1 based on HDLC, ATM, and TRAU protocols.

  • Classification of HDLC based protocols such as ISDN, SS7, PPP, Frame Relay, and GSM.

  • Graphical view displays the timeslots and subchannels of the identified protocols.

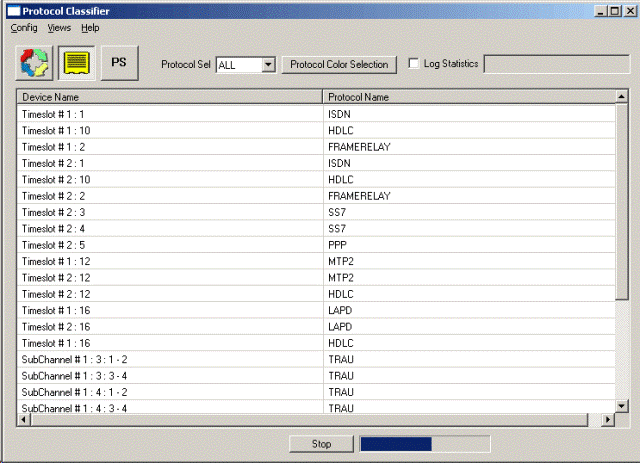

  • Statistical view displays the different protocols with the details of port, timeslots and subchannel.

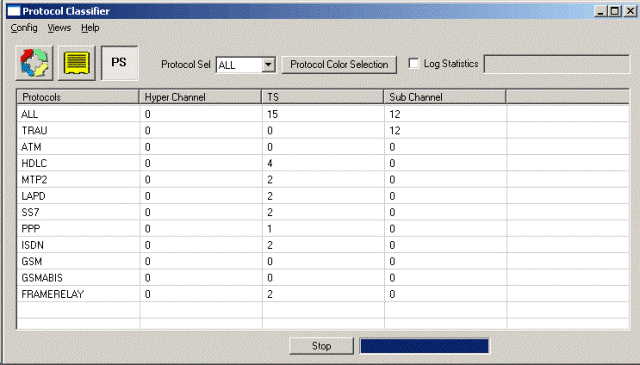

  • Stream Statistics view shows the count of total number of timeslots, sub-channels, and hyper-channels used by each protocol.

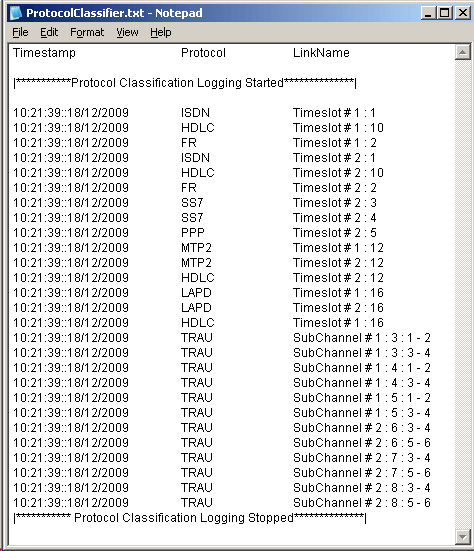

  • Provides an option to log the protocol detected with device and channel information into a text file.

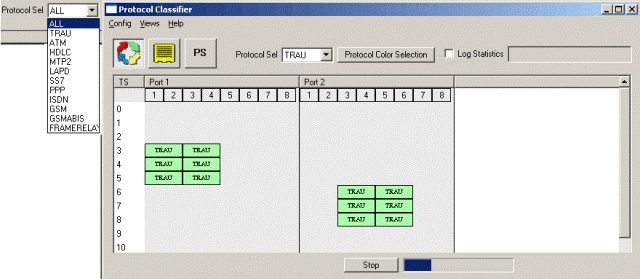

  • Supports filtering to display the unique selected protocol.


  • Supports custom configuration of the colors to easily distinguish protocols.
  • Provides options to select or deselect HDLC, TRAU, and ATM protocols in Capture Options for detecting respective protocols

Buyer's Guide:

Please Note1: The XX in the Item No. refers to the hardware platform, listed at the bottom of the Buyer's Guide, which the software will be running on. Therefore, XX can either be ETA or EEA (Octal/Quad Boards), PTA or PEA (tProbe Units), UTA or UEA (USB Units), HUT or HUE (Universal Cards), and HDT or HDE (HD cards) depending upon the hardware.

Item No. Item Description
XX089 Protocol Identifier
  Related Software Protocol Analyzers
XX153 TRAU Capture and Playback Software
XX160 ATM Analyzer
XX090 HDLC Capture and Playback Software
XX120 SS7 Analyzer
XX135 MLPPP Analyzer
XX100 ISDN Analyzer
XX150 GSM Analyzer
XX130 Frame Relay Protocol Analyzer
  Related Software Protocol Emulators
XX600 Basic Windows Client/Server Scripted Control Software (Included with Basic Software)
XX090 Multi-Channel TRAU Tx/Rx Emulation and Analysis
XX634 Multi-Channel HDLC Emulation and Analysis & File based High Throughput HDLC Record/Playback
XX629 ISDN Emulator (T1 or E1) w/ command line interface
XX649 MAPS™ ISUP Emulator
XX636 MC-MLPPP Emulation and Analysis
XX648 MAPS™ ISDN Emulator
XX655 Client-Server MFR Emulation
XX692 GSM A Interface Emulator
XX693 MAPS™ GSM Abis Interface Emulator
  Related Hardware
PTE001 tProbe™ Dual T1 E1 Laptop Analyzer with Basic Analyzer Software
HTE001 Universal T1/E1 Card with Basic Analyzer Software
UTE001 USB Based T1 or E1 Analyzer Unit with Basic Analyzer Software
HDT001/HDE001 Legacy HD T1 or E1 (PCI) Cards with Basic Analyzer Software

Specifications are subject to change without notice.
