Complete Accessories List
Click on the item description for more detailed information
| Item No. |
Description |
Notes |
| SA000 |
High Stability Internal Clock for Single Ultra Cards |
Upgrades Internal clock to +1 ppm stability |
| SA000a |
High Stability Internal Clock for Dual Ultra Cards |
Upgrades Internal clock to +1 ppm stability |
| SA000b |
High Stability Internal Clock for Single Laptop Analyzers |
Upgrades Internal clock to +1 ppm stability |
| SA000c |
High Stability Internal Clock for Dual Laptop Analyzers |
Upgrades Internal clock to +1 ppm stability
(Standard stability rating is + 2.5 ppm) |
| SA001 |
Bantam Cable
(Photo) |
12 ft Bantam plug to Bantam plug Cable |
| SA002b |
Dual 75/120 Ohm Transformer
(Photo) |
DUAL: 75 ohm BNC to 120 ohm RJ48C |
| SA003a |
Additional DOS User's Manual |
For Super Cards |
| SA003b |
Additional WIN 95 User's Manual |
For Super, Ultra, & Laptop Units |
| SA004 |
T1/E1 Accessory Kit |
Includes
SA007d Dual Bantam to RJ-45 Cables (2)
SA010d Bantam-to-EZ Hook Prongs (1)
SA010b 5' Bantam-to-BNC (2)
SA010e Terminating Plugs - 100 Ohms T1 & 120
Ohms E1 (2 ea) SA007e RJ-45 Y Bridge (2)
SA007k 3.5 mm Dual Mono Plug 3.5 mm Stereo
Jack "Y" Cable (1)
SA007f RJ-45 to RJ-45 Female to Female (2)
SA017A RJ-45 to RJ-45 Straight Cable (2)
SA017B RJ-45 to RJ-45 Crossover Cable (2)
SA007j 3.5 mm Stereo Plug to 3.5 mm Stereo
Plug Cable (2)
SA007m Bantam Loopback Jack (4) |
| SA005b |
LunchBox PC - Ruggedized - Dolch |
Ruggedized PC System |
| SA005c |
PCI Expansion Chasis |
PCI Expansion Chasis |
| SA005d |

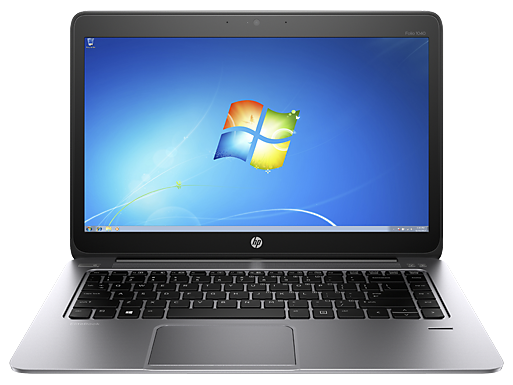

Notebook PC |
Notebook PC(e.g. Sony Vaio) |
| SA005e |

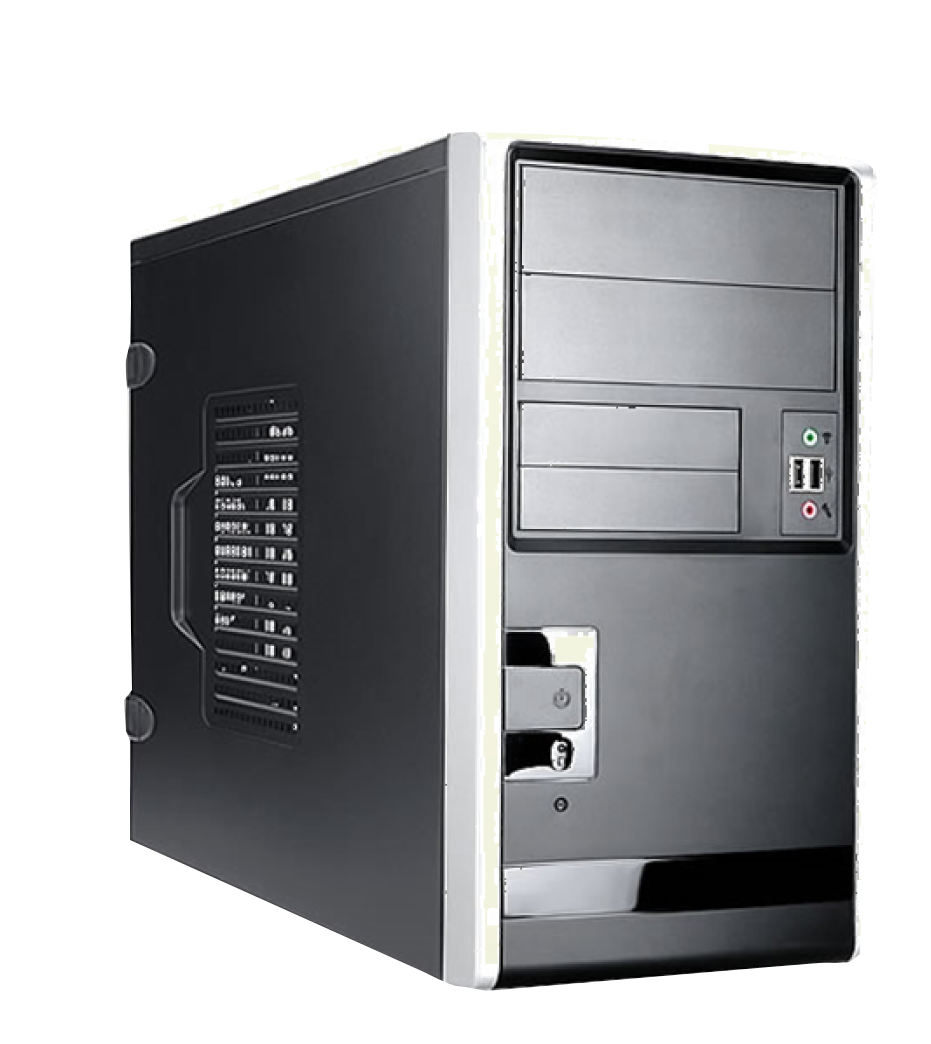

Mini-Tower (Desktop) PC |
PC w/o Monitor or Keyboard |
| SA005f |
Explorer Chassis/PC |
Brick sized PC for Portable/Remote Use |
| SA005g |
MaxVision PC |
Briefcase size PC - w/o Monitor or Keyboard |
| SA005h |
"Shuttle" PC |
Portable PC - w/o Monitor or Keyboard |
| SA005i |

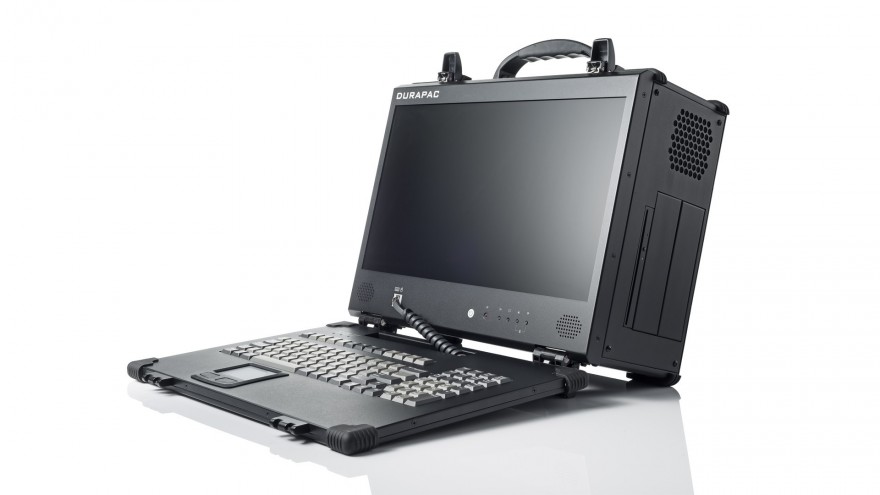

LunchBox PC - Enhanced |
Portable PC System - Recommended |
| SA005j |
Little PC - 1 slot |
Portable little PC with 1 pci slot |
| SA005k |
ITX PC - 2 slot |
Portable mini pc with 2 pci slots |
| SA007a |
Single Bantam to RJ48C - Tx Cable, 10 ft. length |
Single bantam plug to RJ48C plug - pins 4,5 |
| SA007b |
Single Bantam to RJ48C - Rx Cable, 10 ft. length |
Single bantam plug to RJ48C plug - pins 1,2 |
| SA007c |
Dual Bantam to RJ48C cable kit - 3 pc. Set |
1 SA007a Tx cable, 1 SA007b Rx cable, 1 SA007e RJ-48 Bridge |
| SA007d |

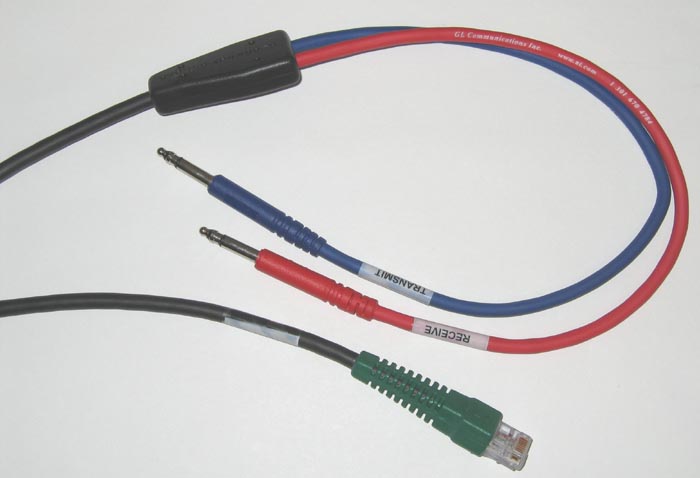

Dual Bantam to RJ48C - Integrated Cable, 10 ft. length
(Photo) |
All-in-One cable: Single RJ48C plug to Dual Bantam plugs - 1 Tx and 1 Rx |
| SA007e |

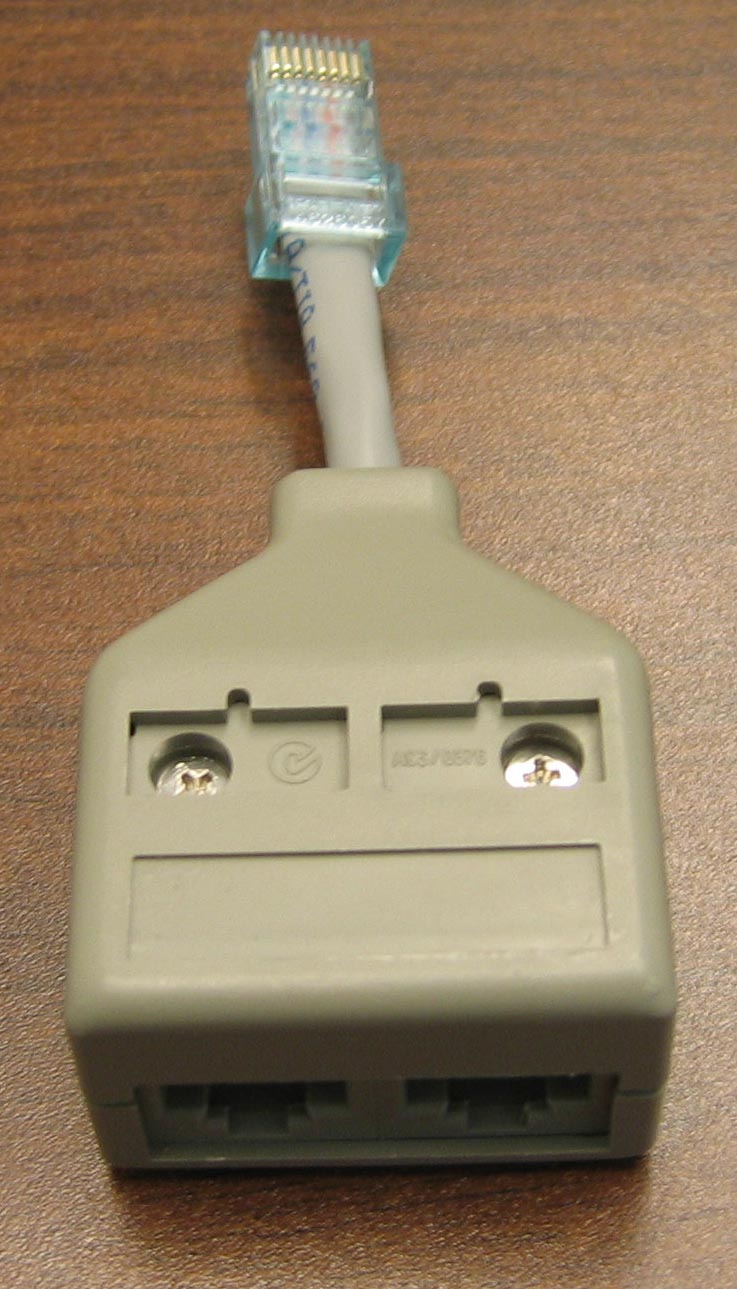

RJ48 Y Bridge - Splits one RJ48 into two complete |
RJ48 plug to 2 RJ48 jacks - All pins thru |
| SA007f |

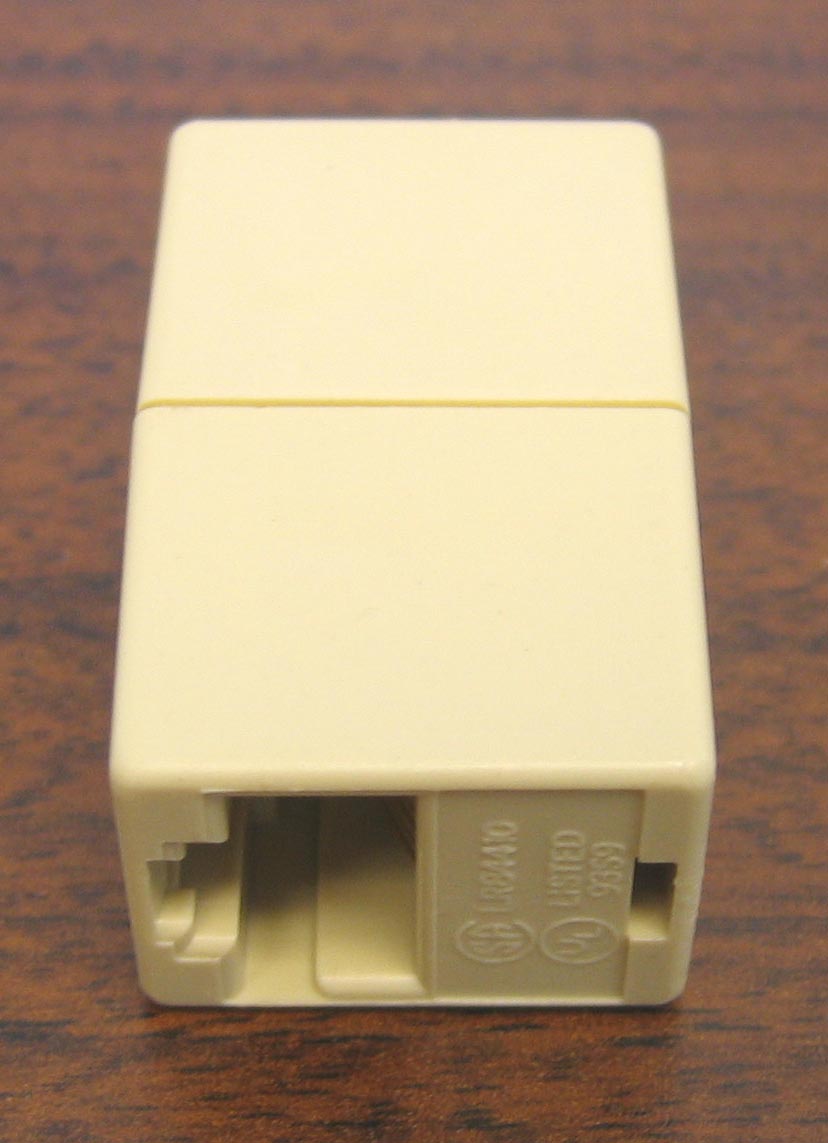

RJ48 to RJ48 Female to Female Coupler |
RJ48 jack to RJ48 jack - All pins thru |
| SA007i |

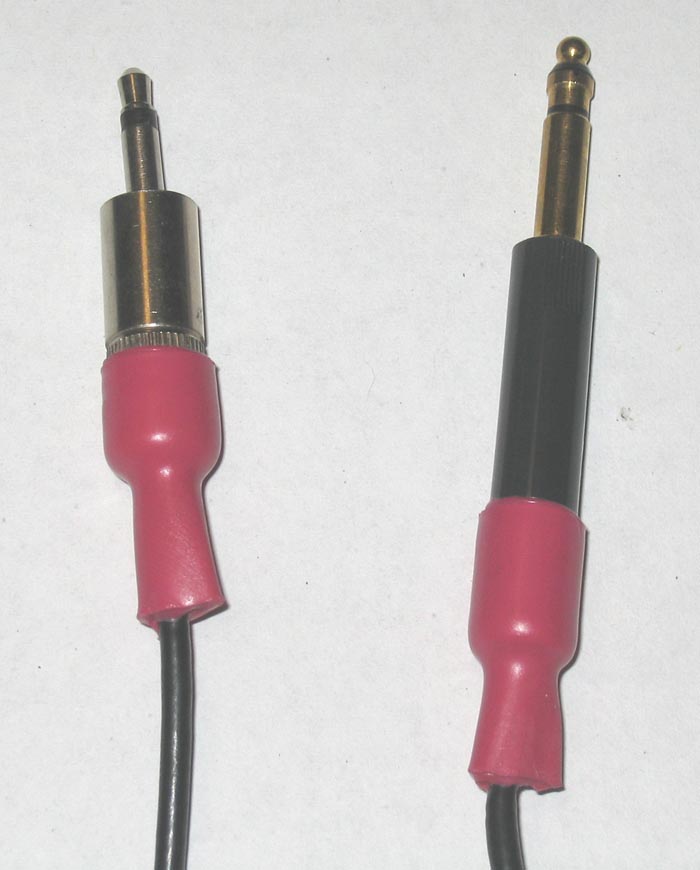

Bantam to Miniature Phone Plug, 6 ft. length
(Photo) |
Single Bantam plug to Single 3.5mm plug |
| SA007j |

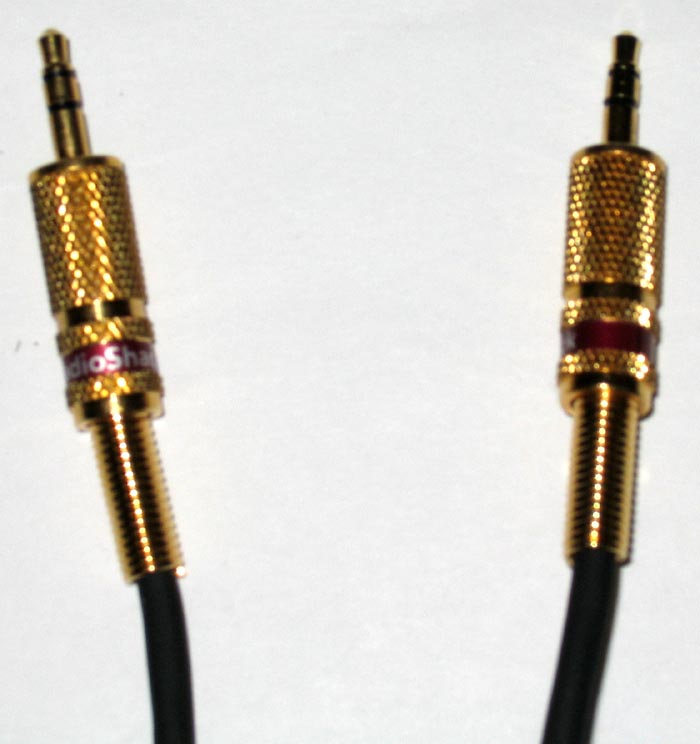

Mini Phone Plug to Mini Phone Plug Cable, 6 ft. length
(Photo) |
Single 3.5mm plug to Single 3.5mm plug |
| SA007k |

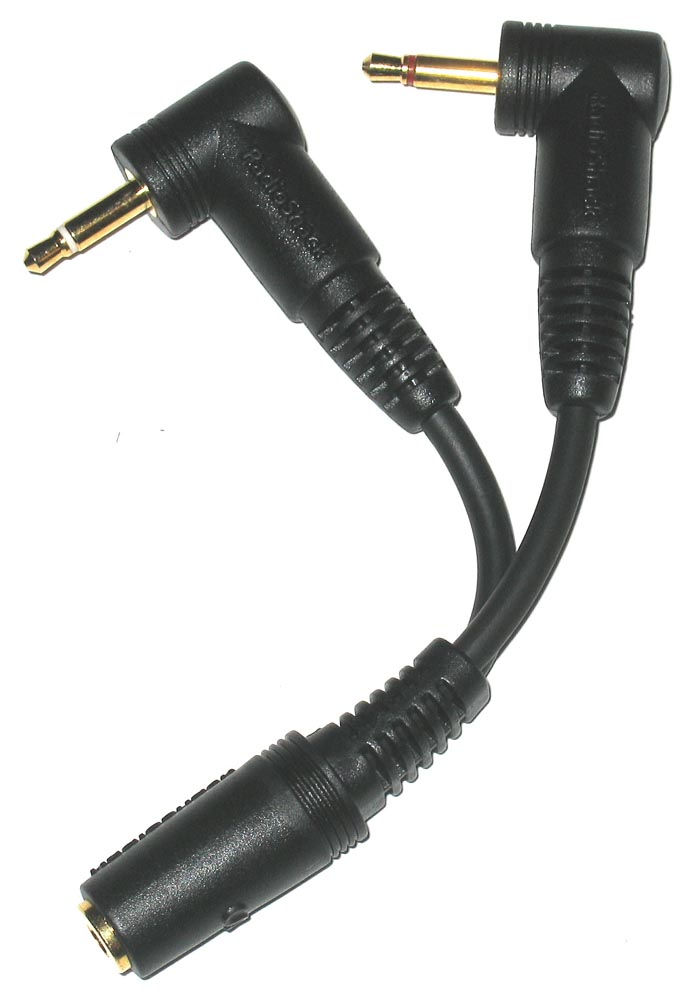

Mono to Stereo Mini Phone Cable (Y Cable), 6 in. length
(Photo) |
Single 3.5mm STEREO jack to 2 Single 3.5mm MONO jacks (L & R) |
| SA007m |
Bantam Loopback Jack
(Photo) |
Bantam jack to Bantam jack - All pins thru |
| SA007n |

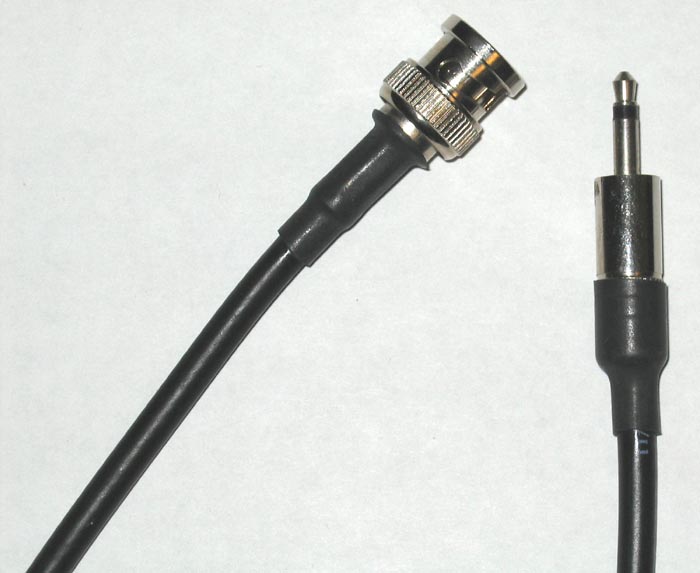

Male BNC to Miniature Two Conductor Phone Plug cable
(Photo) |
BNC Male to 3.5mm Mono plug |
| SA007p |

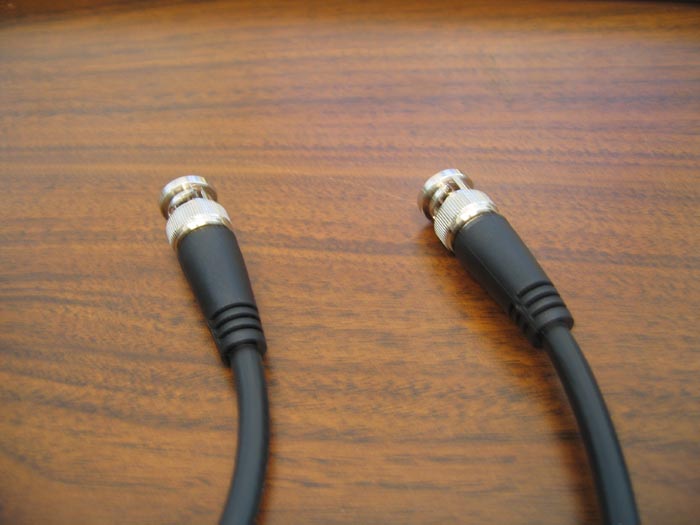

BNC to BNC 75 ohm Coaxial Cable, 6 ft. length
(Photo) |
BNC to BNC for T3 Signal Interconnect |
| SA007s |

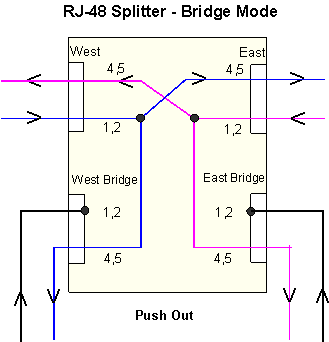

RJ-48 Splitter
Or
RJ-48 Splitter (use with Cross Over Cables) |
Permits Drop/Insert and Bridging from RJ48 Connections
(schematic 1,
schematic 2)
Permits Drop/Insert and Bridging from RJ48
Connections
(schematic 3,
schematic 4) |
| SA007t |
RJ-48 High Impedance T-Tap |
Permits High-Impedance Monitoring of T1 E1 lines
|
| SA007x |

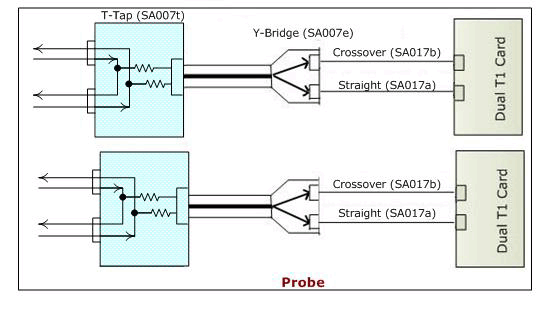

Monitoring Kit #1 w/High Impedance T-Tap |
1-SA007t, 1-SA007e, 1-SA017a, 1-SA017b, 1-SA007k |
| SA007y |
Monitoring Kit #2 w/RJ-48c splitters for Bridging |
2-SA007e, 2-SA017a, 1-SA017b, 1-SA007k |
| SA007z |
Monitoring Kit #3 w/ High Impedance T-Tap and D/I |
1-SA007s, 2-SA017b, 1-SA017a, 1-SA007k |
| SA008a |

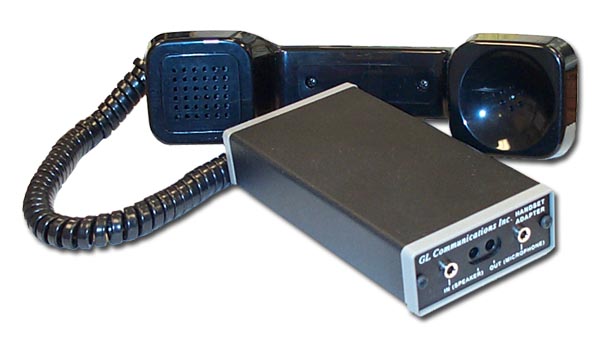

Bantam to Handset Adapter w/Handset |
4-wire Audio Handset Interface Unit: use with included handset to connect to Audio (VF) interface on
GL cards; to talk and listen on a timeslot (NOT necessary on Laptop Analyzer units) |
| SA008b |
Telephone Handset Only w/RJ11 Cable |
Handset Only for use with Laptop Analyzers |
| SA009 |
2/4 Wire Hybrid
(Photo) |
2-wire to 4-wire Telephone Interface Unit: use with any standard telephone to connect to Audio (VF)
interface on GL cards; to talk and listen on a timeslot. NOT for connection to a live PSTN POTS line. |
| SA010a |
Bantam to RJ11, 6 ft. length
(Photo) |
Single Bantam to Single RJ11 modular |
| SA010b |

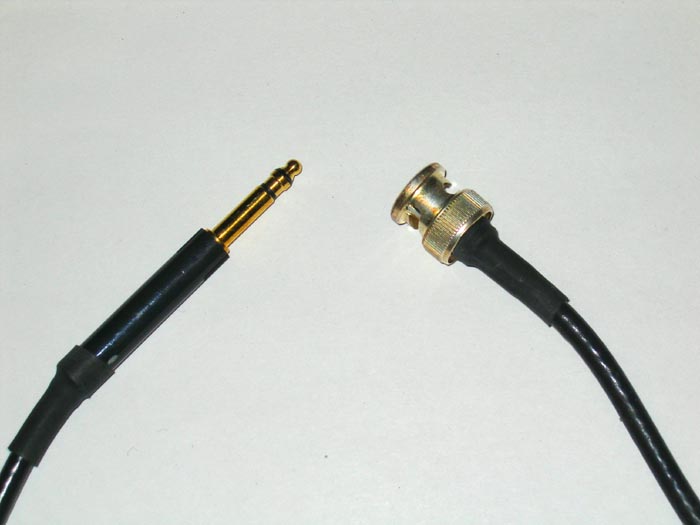

Bantam to BNC, 8 ft. length
(Photo) |
Single Bantam to Single BNC Male plug |
| SA010c |

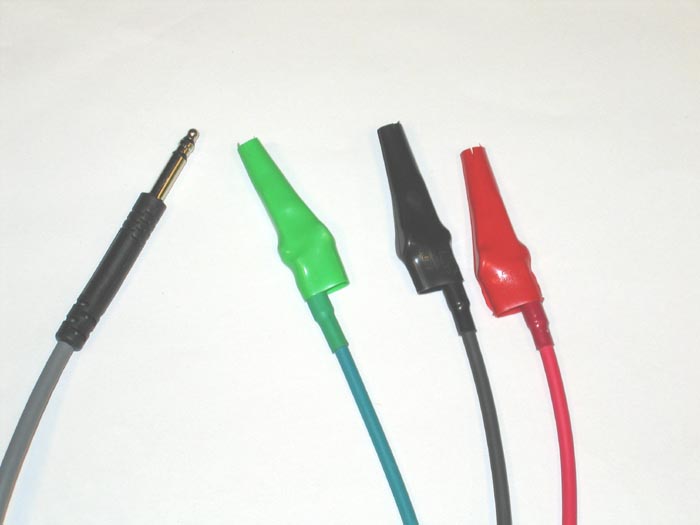

Bantam to Alligator, 8 ft. length
(Photo) |
Single Bantam to 3 Alligator Clips |
| SA010d |

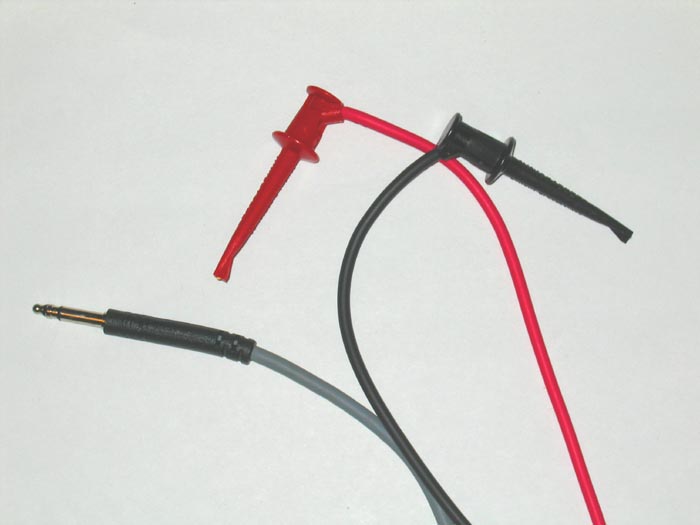

Bantam to EZ Hooks, 8 ft. length
(Photo) |
Single Bantam to 2 EZ-Hook Clips |
| SA010e |
Terminating Plugs for 100 and 120 Ohms
(Photo) |
Single Bantam Termination Resistor plugs (2 100 ohm Black, 2 120 ohm Red) |
| SA011a |
One Pair (2) of: Single Bantam plug to single RCA plug cables
(Photo) |
Connects SA009 2/4 Wire Hybrid to older GL products with Bantam Audio interface |
| SA011b |
One Pair (2) of: Single 3.5mm plug to single RCA plug cables
(Photo) |
Connects SA009 2/4 Wire Hybrid to current GL products with 3.5mm Audio interface |
| SA012a |
Lunchbox PC Shipping Case w/ Built-in Cart |
Special PC Hardshell Shipping Case |
| SA012b |
Larger PC Shipping Case w/ Built-in Cart |
Special PC Hardshell Shipping Case |
| SA013 |
T1/E1 On-Site Training Class |
Customized Training w/ Training Guide |
| SA014 |
DCME On-Site Training Class |
DCME Training - Call for Arrangements |
| SA015 |
PCMCIA to Parallel Port - Card & Adapter Cable, for Laptop T1 or E1
Analyzers |
Plugs into PCMCIA slot on Laptop PC, provides a Parallel Port interface for a using a GL T1 or E1 Laptop
Analyzer on the PC |
| SA016a |
Parallel Port Cable for Laptop T1 or E1 Analyzer
(Photo) |
For connecting a GL T1 or E1 Laptop Analyzer Directly to the Parallel Port of a Laptop PC
(PC's Parallel Port settings MUST support EPP mode—if not, use SA015). |
| SA016b |
BNC to SMB Cable for External Clock Connection
(Photo) |
Connects to EXT CLK port on GL ISA cards and Single Laptop Analyzers |
| SA016c |
BNC to MCX Cable for External Clock Connection
(Photo) |
Connects to EXT CLK port on all GL PCI cards (Single & Dual) and Dual Laptop Analyzers |
| SA017a |

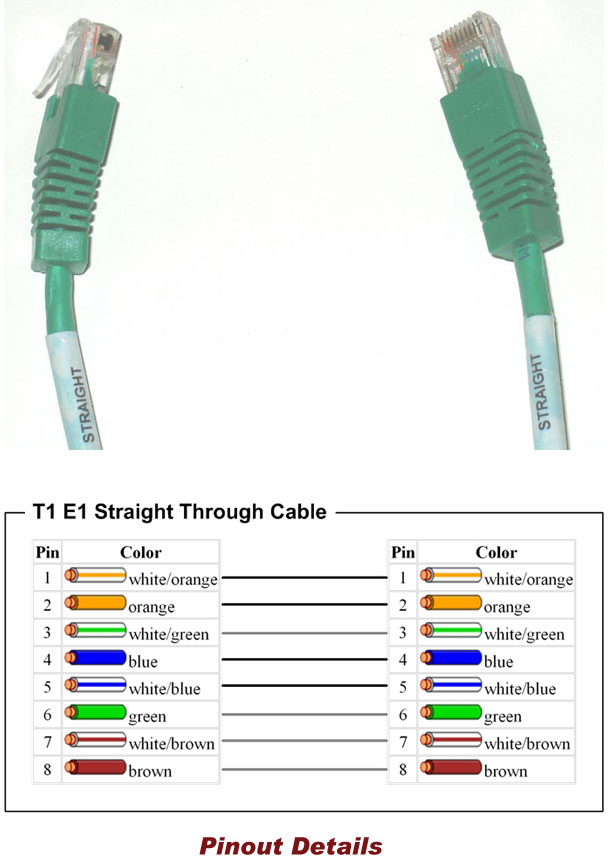

RJ48C to RJ48C Straight Cable, 10 ft. length
(Photo) |
RJ48C: pins 1,2 to 1,2; 4,5 to 4,5; 7,8 to 7,8 |
| SA017b |
RJ48C to RJ48C Crossover Cable, 10 ft. length
(Photo) |
RJ48C: pins 1,2 to 4,5; 4,5 to 1,2; 7,8 to 8,7 |
| SA018 |

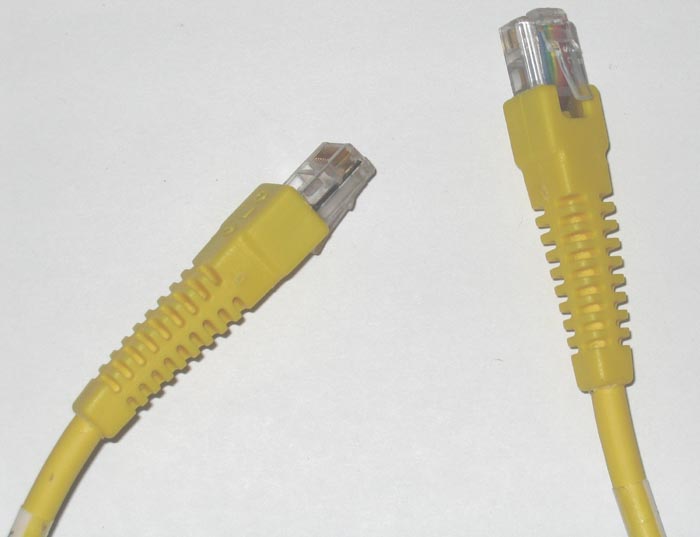

Short RJ-48C Crossover Cable(Photo) |
For Cross-Connect of GL Cards, other eqpt. |
| SA019 |

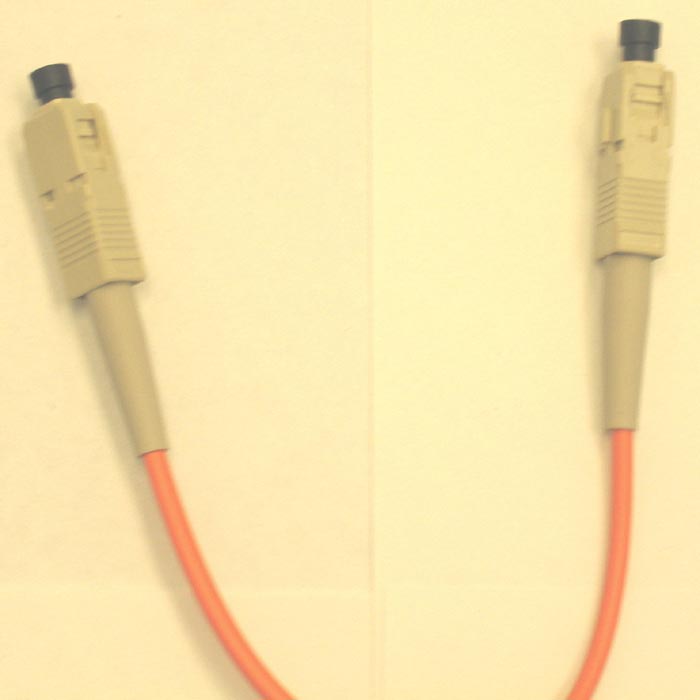

Fiber Optic Cable with SC Connectors
(Photo) |
Simplex multi-mode 6.5' |
| SA021 |
File Edit Software |
To View and Edit Binary Captured Files |
| SA022 |
Extended 1 Yr. Software Upgrades and Comprehensive Support (per card) |
For coverage beyond standard 1 Yr. |
| SA023 |
Extended 1 Yr Hardware Warranty (per card) |
For coverage beyond standard 1 Yr. |
| SA024 |
Extended 1 Yr Hardware Warranty for Laptop Analyzers |
For coverage beyond standard 1 Yr. |
| SA026 |
Adobe Audition Multitrack Sound File Viewing and
Editing Software (Formerly Cool Edit) |
For detailed Viewing and Recording of Multiple Sound Files |
| SA027 |
Extended 1 Yr PC Warranty - Lunchbox PC |
Per year cost for coverage beyond standard 1 Yr.(**) |
| SA028 |
Extended 1 Yr PC Warranty - Briefcase PC |
Per year cost for coverage beyond standard 1 Yr.(**) |
| SA029 |
Installation CD |
Copy of Installation CD - if available |
| SA039 |
Recalibration of T1 or E1 Cards or Portable Units |
Recalibration of the clock / oscillator on Cards or Portable units |
| SA040 |
Seven Port USB 2.0 Hub |
Required for connecting multiple nodes to a single PC |
| SA048 |
Goldwave Software |
For detailed Viewing and Recording of Multiple Sound Files |
RTC150
RTC160 |
Real-Time Strip Chart Kit (2-Channel)
Real-Time Strip Chart Kit (4-Channel) |
Real-time recording and viewing with Adobe Audition or Cool Edit Pro plus cables and accessories |
| PKA001 |
600 Ohm-to-Sound Card Transformer/Adapter (Photo
front view &
back view) |
Adapts Sound Card Interface to 600 Ohms |
**PC Warranty - excludes damage due to abuse, screen burn-in, improper surge protection, and computer virus
Detailed Description of Accessories Items
SA000 High Stability Internal Clock Option for Ultra, PCI, and Laptops
Provides higher precision 1.0 ppm internal T1 (or E1) reference oscillator as compared to the standard oscillator which is 2.5 ppm.
SA001 Bantam Cable
12 ft. shielded cable with Male 3-conductor Bantam connectors (plugs) at both ends. Click
here for picture.

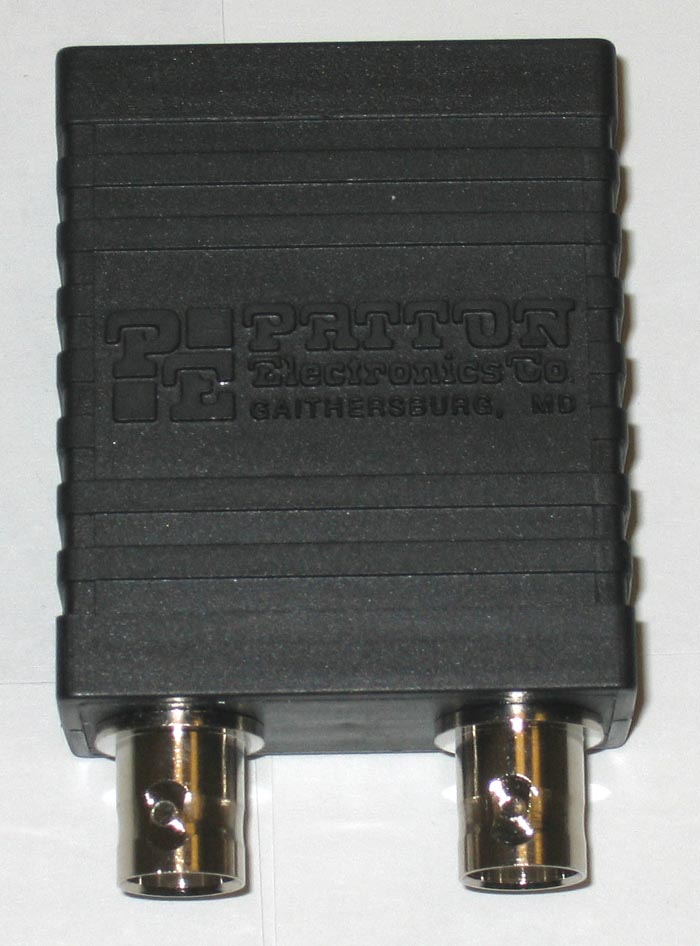

SA002b Dual 75/120 Ohm Transformer
Dual Impedance Matching transformer (balun). Two transformers in a single housing - allows connection to both Tx and Rx of an E1
circuit. Female BNC connectors for each of the 75 ohms windings, Single 8-pin RJ-45 jack carries connections to both 120 ohms
windings (pins 1,2 and 4,5). Click here for picture.
SA004 T1/E1 Accessory Kit includes:
| Item |
Quantity |
|---|
| 12 ft. Bantam-to-Bantam Cable | 4 |
| 6 ft. Bantam-to-Alligator Clip Cable | 1 |
| 5 ft. Bantam-to-EZ Hook Prongs Cable | 1 |
| 5 ft. Bantam-to-BNC Cable | 1 |
| 100 ohms (T1) Bantam Terminating Plug | 2 |
| 120 ohms (E1) Bantam Terminating Plug | 2 |
| Dual Bantam Jacks to 3.5mm Stereo (Headphone) Jack Adapter | 1 |
| Dual Miniature Mono Phone Plugs to Stereo (Headphone) Jack 'Y' Cable | 1 |
| Dual Bantam to RJ45 'Y' Cable | 1 |
| Single RJ45 Plug to Dual RJ45 Jack 'Y' Bridge | 2 |
| RJ45 Female to RJ45 Female Coupler | 1 |
| RJ45 Male to RJ45 Male 'Straight' Cable | 1 |
| RJ45 Male to RJ45 Male 'Crossover' Cable | 1 |
| Bantam Plug to 3.5mm Mono Phone Plug Cable | 2 |
| Dual Bantam Loopback Jack Coupler | 4 |
SA005 Lunchbox PC
Includes PC Documentation, Software Disks for OS and Drivers, and power cord. Click
here for picture.

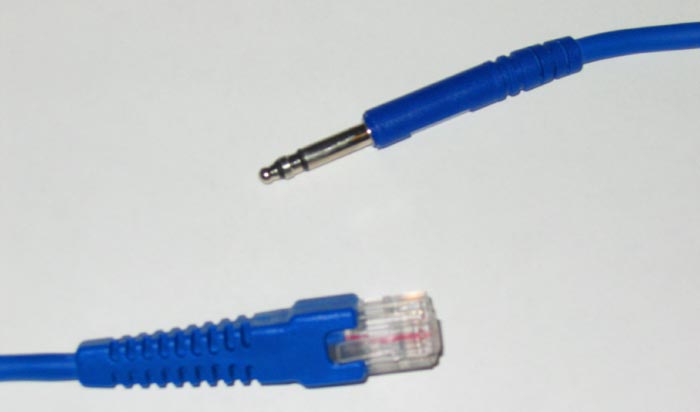

SA007a Single Bantam to RJ48C - Tx Cable, 10 ft. length
10 foot Blue shielded cable with 3-conductor Bantam Plug at one end and Male 8-pin RJ45 Plug at the other end. Tip connection from
the Bantam Plug connects to RJ45 pin 5, Ring connection to
RJ45 pin 4. Bantam sleeve connection (ground) connects via the cable shield to RJ45 pin 8. Click here for picture.

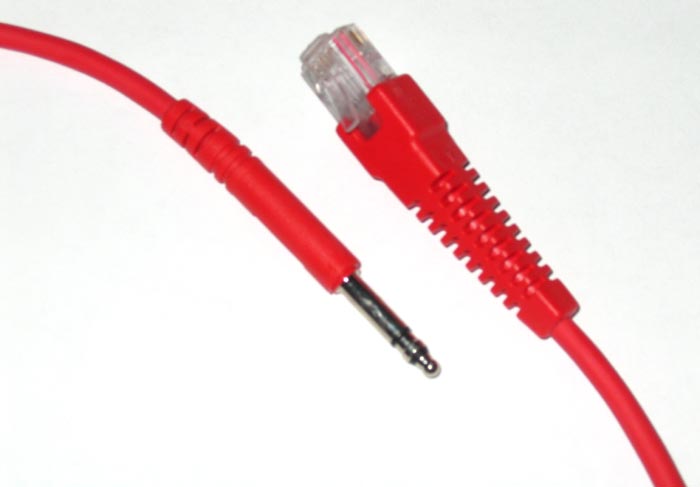

SA007b Single Bantam to RJ48C - Rx Cable, 10 ft. length
10 ft. Red shielded cable with 3-conductor Bantam Plug at one end and Male 8-pin RJ45 Plug at the other end. Tip connection from the Bantam Plug connects to RJ45 pin 2, Ring connection to RJ45 pin 1.
Bantam sleeve connection (ground) connects via the cable shield to RJ45 pin 7. Click
here for picture.
SA007c Dual Bantam to RJ48C cable kit - 3 pc. Set
Includes one SA007a Tx Cable, one SA007b Rx Cable, and one SA007e RJ45 'Y' Bridge. When assembled, it is functionally the same as
one SA007d Cable,
but in 3 separate pieces, it allows greater flexibility for unusual configurations.
SA007d Dual Bantam to RJ48C - Integrated Cable, 10 ft. length
10 ft. shielded cable with Single RJ45 Plug at one end, splits into two 3-conductor Bantam Plugs at the other end. Red 'Rx' Bantam Plug
connects to RJ45 pins 1 and 2 (Ring to 1, Tip to 2). Blue 'Tx' Bantam Plug
connects to RJ45 pins 4 and 5 (Ring to 4, Tip to 5). Both Bantam Sleeves (ground) connect via the cable shield to RJ45 pins 7 and 8.
Click here for picture.
SA007e RJ48 Y Bridge - Splits one RJ48 into two complete
Single RJ45 Male (Plug) to Two RJ45 Female (Jacks). All 8 conductors of the Male RJ45 Plug are carried to each of the RJ45 Jacks. Makes
one available RJ45 Jack into two.
Click here for picture.
SA007f RJ48 to RJ48 Female to Female Coupler
Connects two RJ45 Male Plugs to each other. Click here for picture.
SA007i Bantam to Miniature Phone Plug, 6 ft. length
10 ft. shielded cable with Bantam Male Plug at one end and 3.5mm Mono Phone Plug at the other end.
Click here for picture.
SA007j Mini Phone Plug to Mini Phone Plug Cable, 6 ft. length
10 ft. shielded cable with 3.5mm Mono Phone Plug at both ends. Click here for
picture.
SA007k Mono to Stereo Mini Phone Cable (Y Cable), 6 in. length
Dual 3.5mm Mono Phone Plugs feeding into a single 3.5mm Stereo Phone jack. Connects to 2 VF OUT ports on GL Analyzer products to
allow listening to both sources (typically both EAST and WEST of a
particular timeslot) simultaneously. Can connect a pair of standard stereo headphones, or use additional cable to route both channels
to a PC sound card.
Click here for picture.
SA007m Bantam Loopback Jack
Two Bantam Jacks simply connected 'straight' to each other in a very small housing. Allows connecting 2 Bantam Plug cables together.
Click here for picture.
SA007n Male BNC to Miniature Two Conductor Phone Plug cable
10 ft. shielded cable with 3.5mm Mono Phone Plug at one end and Male BNC connector at the other end.
Click here for picture.
SA008a Bantam to Handset Adapter w/Handset
Interface box (4-wire to 4-wire) to allow connection of a telephone handset to the VF IN and VF OUT (Audio) ports of GL
Communications Analyzer products. Allows you to listen and talk on a timeslot. RJ11 jack for connection of handset, 3.5mm phone jacks
OR Bantam Jacks for cable connections to GL Analyzer. Includes Hi-Gain Electret Mic handset. NOTE: This adapter is NOT required for
any GL LAPTOP Analyzer; LAPTOP Analyzers already have this adapter built in. Click here
for more information. Click here for picture.
SA008b Telephone Handset Only w/RJ11 Cable
Telephone Handset with Hi-Gain Electret Mic. Includes coil cord. Click here
for more information.
SA009 2/4 Wire Hybrid
Interface box (2-wire to 4-wire) to allow connection of any standard (POTS) Telephone to the VF IN and VF OUT (Audio) ports of GL
Communications Analyzer products. Allows you to listen and talk on a timeslot, and allows use of features on the telephone such as
the DTMF Keypad and Redial. DOES NOT connect to a telephone line. Click here
for more information. Click here for picture.
SA010a Bantam to RJ11, 6 ft. length
6 ft. cable with Bantam Plug at one end and RJ11 Plug at the other end. Click
here for picture.
SA010b Bantam to BNC, 8 ft. length
6 ft. shielded cable with Bantam Plug at one end and BNC Male at the other end. Click
here for picture.
SA010c Bantam to Alligator, 8 ft. length
6 ft. shielded cable with Bantam Plug at one end and Alligator clips at the other end. Click
here for picture.
SA010d Bantam to EZ Hooks, 8 ft. length
6 ft. shielded cable with Bantam Plug at one end and EZ Hook prongs (also known as Mini-Grabbers) at the other end. Click
here for picture.
SA010e Terminating Plugs for 100 and 120 Ohms
Kit containing two 100 ohms (T1) and two 120 ohms (E1) Bantam terminatng plugs. Click
here for picture.
SA011a One Pair (2) of: Single Bantam plug to single RCA plug cables
3 ft. shielded cable with Bantam Plug at one end and Male RCA Phono plug at the other end. Set of two cables. This cable set is
included with the SA009 2/4 Wire Hybrid, when the SA009 is ordered for use with GL Ultra and Single Laptop products.
Click here for picture.
SA011b One Pair (2) of: Single 3.5mm plug to single RCA plug cables
3 ft. shielded cable with 3.5mm Miniature Mono Phone Plug at one end, and Male RCA Phono plug at the other end. Set of two cables. This cable set is included with
the SA009 2/4 Wire Hybrid, when the SA009 is ordered for use with GL PCI and Dual Laptop products. Click here for picture.
SA012a Lunchbox PC Shipping Case
Rugged 'Hard-shell' shipping/travel case with wheels, pop-up telescoping pull-along handle and combination lock. For smaller 'Lunchbox' PC.
SA012b Enhanced Lunchbox PC Shipping Case
Rugged 'Hard-shell' shipping/travel case with wheels, pop-up telescoping pull-along handle and combination lock. For larger 'Lunchbox' PC.
SA015 PCMCIA to Parallel Port - Card & Adapter Cable, for Laptop T1 or E1 Analyzers
Use to connect a GL Laptop T1/E1 Analyzer to a Notebook PC via a PCMCIA slot. Complete kit with PCMCIA Card, cable for connecting the PCMCIA Card to the GL Analyzer Parallel Port, PCMCIA Card software, installation instructions, and other documentation.
SA016a Parallel Port Cable for Laptop T1 or E1 Analyzer
Use to connect a GL Laptop T1/E1 Analyzer to a Notebook PC via the Parallel Port on the PC. Six ft. shielded IEEE-1284 Compliant cable with DB25M at one end, and DB25F at the other end. Click here for picture.
SA016b BNC to SMB Cable for External Clock Connection
5 ft. thin coax cable with BNC Male at one end, and SMB female at the other end. Allows connection of other clock source to GL Ultra cards and Single Laptop Analyzers. Click here for picture.
SA016c BNC to MCX Cable for External Clock Connection
5 ft. thin coax cable with BNC Male at one end, and MCX Male at the other end. Allows connection of other clock source to GL PCI cards and Dual Laptop Analyzers. Click here for picture.
SA017a RJ48C to RJ48C Straight Cable, 10 ft. length
10 ft. shielded cable with RJ45 Male Plugs at each end. All conductors are connected 'Straight' through, i.e. pin 1 at one end connects to pin 1 at the other end, pin 2 to pin 2, pin 3 to pin 3, etc., etc.
Click here for picture.
SA017b RJ48C to RJ48C Crossover Cable, 10 ft. length
10 ft. shielded cable with RJ45 Male Plugs at each end. Wire pair on pins 1 and 2 at one end connect (crossover) to pins 4 and 5 at the other end (respectively); and vice versa. Pin 7 at one end is also
crossed over to pin 8 at the other end, and vice versa. (These are usually the ground connections.) Pins 3 and 6 are carried 'straight' through to the same pin at both ends. Used to connect 2 like-wired
T1 or E1 ports or devices to each other 'back to back' so that they can 'talk' to each other. Click here for picture.
SA019 Fiber Optic Cable with SC Connectors
Simplex multimode fiber optic cable with SC connector at both ends, 2 meter (6.5 feet) in length. Click here for picture.
Recommended accessories for Voiceband and Echo Canceller Applications
| Item No. |
Item |
Quantity |
| SA007x or SA007y or SA007z |
Monitoring Kit #1, #2, or #3 |
1 |
| SA008b |
Telephone Handset Only w/RJ11 Cable (USB only) |
1 |
| SA008a |
Handset Adapter with Handset (Cards only) |
1 |
| SA009 |
2/4 Wire Hybrid |
1 |
| SA016c |
BNC to MCX Cable for External Clock Connection |
2 |
| SA023 |
Extended 1 Yr. Hardware Warranty for cards (per card) |
1 |
| SA024 |
Extended 1 Yr. Hardware Warranty for Laptop / USB Analyzers |
1 |
| SA022 |
Extended 1 Yr. Software Upgrades & Comprehensive Support |
1 |
| SA013 |
T1/E1 Onsite Training |
1 |
As required for special connections, for E1, and for echo cancellation testing
| Item No. |
Item |
Quantity |
| SA002b |
Dual 75/120 Ohm Transformer for E1 |
2 |
| SA007d |
Dual Bantam to RJ-48c - Integrated Cable |
2 |
| SA007m |
Bantam Loopback Jacks |
4 |
| SA040 |
Seven Port USB 2.0 Hub (USB only) |
1 |
Recommended accessories for Protocol Analyzer Applications
| Item No. |
Item |
Quantity |
| SA007x or SA007y or SA007z |
Monitoring Kit #1, #2, or #3 |
1 |
| SA024 |
Extended 1 Yr. Hardware Warranty for Laptop / USB Analyzers |
1 |
| SA022 |
Extended 1 Yr. Software Upgrades & Comprehensive Support |
1 |
| SA013 |
T1/E1 Onsite Training |
1 |
As required for special connections, for E1, and for echo cancellation testing
| Item No. |
Item |
Quantity |
| SA002b |
Dual 75/120 Ohm Transformer for E1 |
2 |
| SA007d |
Dual Bantam to RJ-48c - Integrated Cable |
2 |
| SA040 |
Seven Port USB 2.0 Hub (USB only) |
1 |
Recommended Accessories for T1/E1 PCI Card
| Item No. |
Item |
Quantity |
|---|
| SA000a | High Stability Internal Clk Option for Ultra Cards | 1 |
| SA002b | Dual 75/120 Ohm Transformer with Description (E1 Only) | 1 |
| SA007d | Dual Bantam to RJ45 - Integrated Cable | 2 |
| SA007e | RJ45 Y Bridge - Splits one RJ45 into two | 2 |
| SA007f | RJ45 to RJ45 Female to Female | 1 |
| SA017A | RJ45 to RJ45 Straight Cable | 1 |
| SA017B | RJ45 to RJ45 Turnover Cable | 1 |
| SA007j | Miniature Phone Plug to Miniature PHone Plug Cable | 1 |
| SA007k | Mono to Stereo Miniature Phone Cable (Y Cable) | 1 |
| SA007m | Bantam Loopback Jack | 2 |
| SA008a | Bantam to Handset Adapter w/ Handset
Two (2) Short Bantam Cables or
Two (2) Short Mini-Phone Plug Cable
Label on the Bottom of Handset Adapter | 1 |
| SA009 | 2/4 Wire Hybrid and Users Guide
AC Adapter with Label (1)
RJ-11 to RJ-11 Cable (1) | 1 |
| SA016c | BNC to MCX Cable for External Clock Connection | 1 |
| SA026 | 'Adobe Audition' Software with 2 disks
Adobe Audition Registration
Adobe Audition Manual | 1 |
| SA048 | Goldwave Software | 1 |
| SA021 | File Edit Software with 1 disk
File Edit Manual - Electronic Version | 1 |
Recommended Accessories for Single T1/E1 Laptop Units
| Item No. |
Item |
Quantity |
|---|
| SA000b | High Stability Internal Clk Option for Single Laptops | 1 |
| SA001 | Bantam Cable | 2 |
| SA002b | Dual 75/120 Ohm Transformer with Description (E1 Only) | 1 |
| SA007d | Dual Bantam to RJ45 - Integrated Cable | 1 |
| SA007e | RJ45 Y Bridge - Splits one RJ45 into two | 1 |
| SA007f | RJ45 to RJ45 Female to Female | 1 |
| SA007i | Bantam to Miniature Phone Plug Cable | 1 |
| SA008a | Bantam to Handset Adapter w/ Handset
Two (2) Short Bantam Cables or
Two (2) Short Mini-Phone Plug Cable
Label on the Bottom of Handset Adapter | 1 |
| SA008b | Telephone Handset Only w/ RJ11 cable | 1 |
| SA009 | 2/4 Wire Hybrid and Users Guide
AC Adapter with Label (1)
RJ-11 to RJ-11 Cable (1)
SA011a (1) - For Ultra and Single Laptops
SA011b (1) - For PCI Cards and Dual Laptops | 1 |
| SA015 | PCMCIA Card for Laptop T1/E1 Analyzer
'Special Label on PCMCIA Card'
SPP-100 Installation Help Guide
SPP-100 Installation Manual
| 1 |
| SA016a | Parallel Port Cable for Laptop T1/E1 Analyzer | 1 |
| SA016b | BNC to SMB Cable for External Clock Connection | 1 |
| SA026 | 'Adobe Audition' Software with 2 disks
Adobe Audition Registration
Adobe Audition Manual | 1 |
| SA048 | Goldwave Software | 1 |
| SA021 | File Edit Software with 1 disk, File Edit Manual - Electronic Version | 1 |
Recommended Accessories for Dual T1/E1 Laptop Units
| Item No. |
Item |
Quantity |
|---|
| SA000c | High Stability Internal Clk Option for Dual Laptops | 1 |
| SA002b | Dual 75/120 Ohm Transformer with Description (E1 Only) | 1 |
| SA007d | Dual Bantam to RJ45 - Integrated Cable | 2 |
| SA007e | RJ45 Y Bridge - Splits one RJ45 into two | 2 |
| SA007f | RJ45 to RJ45 Female to Female | 1 |
| SA017A | RJ45 to RJ45 Straight Cable | 1 |
| SA017B | RJ45 to RJ45 Turnover Cable | 1 |
| SA007j | Miniature Phone Plug to Miniature PHone Plug Cable | 1 |
| SA007k | Mono to Stereo Miniature Phone Cable (Y Cable) | 1 |
| SA007m | Bantam Loopback Jack | 2 |
| SA008b | Telephone Handset Only w/ RJ-11 | 1 |
| SA009 | 2/4 Wire Hybrid and Users Guide
AC Adapter with Label (1)
RJ-11 to RJ-11 Cable (1) | 1 |
| SA016c | BNC to MCX Cable for External Clock Connection | 1 |
| SA026 | 'Adobe Audition' Software with 2 disks
Adobe Audition Registration
Adobe Audition Manual | 1 |
| SA048 | Goldwave Software | 1 |
| SA021 | File Edit Software with 1 disk
File Edit Manual - Electronic Version | 1 |
Recommended Accessories for T1/E1 ISA Card
| Item No. |
Item |
Quantity |
|---|
| SA000a | High Stability Internal Clk Option for Ultra Cards | 1 |
| SA001 | Bantam Cable | 2 |
| SA002b | Dual 75/120 Ohm Transformer | 1 |
| SA007d | Dual Bantam to RJ45 - Integrated Cable | 2 |
| SA007e | RJ45 Y Bridge - Splits one RJ45 into two | 2 |
| SA007f | RJ45 to RJ45 Female to Female | 1 |
| SA007i | Bantam to Miniature Phone Plug Cable | 1 |
| SA008a | Bantam to Handset Adapter w/ Handset
Two (2) Short Bantam Cables or
Two (2) Short Mini-Phone Plug Cable
Label on the Bottom of Handset Adapter | 1 |
| SA009 | 2/4 Wire Hybrid and Users Guide
AC Adapter with Label (1)
RJ-11 to RJ-11 Cable (1)
SA011a (1) - For Ultra and Single Laptops
SA011b (1) - For PCI Cards and Dual Laptops | 1 |
| SA016b | BNC to SMB Cable for External Clock Connection | 1 |
| SA026 | 'Adobe Audition' Software with 2 disks
Adobe Audition Registration
Adobe Audition Manual | 1 |
| SA048 | Goldwave Software | 1 |
| SA021 | File Edit Software with 1 disk
File Edit Manual - Electronic Version | 1 |
Back to Accessories and Adapters Index Page
![(Photo)](javascript:myOpen("images/sa001.jpg")){kind=link}
![(Photo)](javascript:myOpen("images/sa002b.jpg")){kind=link}
![(Photo)](javascript:myOpen("images/sa007d.jpg")){kind=link}
![(Photo)](javascript:myOpen("images/sa007i.jpg")){kind=link}
![(Photo)](javascript:myOpen("images/sa007j.jpg")){kind=link}
![(Photo)](javascript:myOpen("images/sa007k.jpg")){kind=link}
![(Photo)](javascript:myOpen("images/sa007m.jpg")){kind=link}
![(Photo)](javascript:myOpen("images/sa007n.jpg")){kind=link}
![(Photo)](javascript:myOpen("images/sa007p.jpg")){kind=link}
![schematic 1](javascript:myOpen("images/sa007s_schematic1.gif")){kind=link}
![schematic 2](javascript:myOpen("images/sa007s_schematic2.gif")){kind=link}
![schematic 3](javascript:myOpen("images/sa007s_schematic3.gif")){kind=link}
![schematic 4](javascript:myOpen("images/sa007s_schematic4.gif")){kind=link}
![Permits High-Impedance Monitoring of T1 E1 lines](javascript:myOpen("images/sa007t.gif")){kind=link}
![(Photo)](javascript:myOpen("images/sa009.jpg")){kind=link}
![(Photo)](javascript:myOpen("images/sa010a.jpg")){kind=link}
![(Photo)](javascript:myOpen("images/sa010b.jpg")){kind=link}
![(Photo)](javascript:myOpen("images/sa010c.jpg")){kind=link}
![(Photo)](javascript:myOpen("images/sa010d.jpg")){kind=link}
![(Photo)](javascript:myOpen("images/sa010e.jpg")){kind=link}
![(Photo)](javascript:myOpen("images/sa011a.jpg")){kind=link}
![(Photo)](javascript:myOpen("images/sa011b.jpg")){kind=link}
![(Photo)](javascript:myOpen("images/sa016a.jpg")){kind=link}
![(Photo)](javascript:myOpen("images/sa016b.jpg")){kind=link}
![(Photo)](javascript:myOpen("images/sa016c.jpg")){kind=link}
![(Photo)](javascript:myOpen("images/sa017a.jpg")){kind=link}
![(Photo)](javascript:myOpen("images/sa017b.jpg")){kind=link}
![(Photo)](javascript:myOpen("images/sa018.jpg")){kind=link}
![(Photo)](javascript:myOpen("images/sa019.jpg")){kind=link}
![front view](javascript:myOpen("images/pka001_frontview.jpg")){kind=link}
![back view](javascript:myOpen("images/pka001_backview.jpg")){kind=link}
![here](javascript:myOpen("images/at_portable_front.jpg")){kind=link}
![here](javascript:myOpen("images/sa007a.jpg")){kind=link}
![here](javascript:myOpen("images/sa007b.jpg")){kind=link}
![here](javascript:myOpen("images/sa007e.jpg")){kind=link}
![here](javascript:myOpen("images/sa007f.jpg")){kind=link}
![here](javascript:myOpen("images/sa008a.jpg")){kind=link}
