A brief overview of the protocols supported by PacketScan™ with the specifications are listed in the table below:

  Supported Protocols Standards / Specifications Used
SIP
Megaco3525 MAC IEEE 802.3
Megaco3015 IP RFC 791
MGCP TCP RFC 793
H323 UDP RFC 768
  ICMP RFC 792
  SIP RFC 3261
  SIP Extensions RFC 3262, RFC 3311, RFC 3455,
RFC 3515 RFC 3310, RFC 3263
  RTSP RFC2326

eCPRI

Supported 5G Protocols
N1N2 Protocol Stack

N1N2 Protocol Stack
N4 Protocol Stack

N4 Protocol Stack
N8 Protocol Stack

N8 Protocol Stack
N12 Protocol Stack

N12 Protocol Stack
N13 Protocol Stack

N13 Protocol Stack
Supported Protocols Standard / Specification
System Architecture for the 5G 3GPP TS 23.501
NG Application Protocol (NGAP) 3GPP TS 38.413
Non-Access-Stratum (NAS) 3GPP TS 24.501
GPRS Tunneling Protocol for User Plane (GTP-U) 3GPP TS 29.281
NR and NG-RAN Overall Description 3GPP TS 28.300
Packet Forwarding Control Protocol (PFCP) 3GPP TS 29.244
UDP IETF RFC 768
IPv4 IETF RFC 791 [5]
IPv6 IETF RFC 2460 [6]
JavaScript Object Notation (JSON) IETF RFC 8259
HTTP/2 IETF RFC 7231
IETF RFC 7540/RFC 7541
TLS IETF RFC 8446
TCP IETF RFC 793
eCPRI
eCPRI protocol stack

eCPRI Protocol Stack
LTE

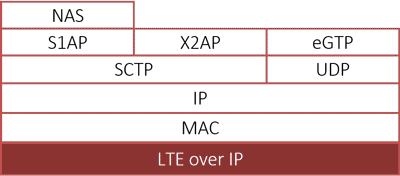

LTE Protocol Stack

LTE Protocol Stack
Supported Protocols Standard / Specification
S1AP 3GPP TS 36.413 V9.0.0
X2AP 3GPP TS 36.423 V9.0.0
NAS 3GPP TS 24.301 V9.0.0
eGTP 3GPP TS 29.274 V8.0.0
SCTP RFC 4960
Evolved GTP (eGTP) for EPS 3GPP TS 29.274 V8.0.0 (2008-12)
Evolved GTP (eGTP) for EPS 3GPP TS 29.274 V9.2.0 (2010-03)
Diameter
Diameter Protocol Stack


Diameter Protocol Stack
Supported Protocols Standard / Specification
S6a, S6d, S13 3GPP TS 29.272 V10.3.0
Rx 3GGP TS 29214-b10
Cx/Dx 3GPP TS 29.228 & TS29.229
Gx 3GPP TS 29.212 & TS 23.203
Zn/Zh 3GPP TS 29.109 & TS 33.220
Wx 3GPP TS 29.234
Gx 3GPP TS 29.212 & TS 23.203
Gy 3GPP TS 32.29, TS 32.251 & RFC 4006
Gq 3GPP TS 29.209
Sh/Dh 3GGP TS 29.328 & TS 29.329
Rf/RO 3GGP TS 32.225, 3GPP TS 32.299 3GPP TS 29.061
Wg/Wm/Wa/Wd/Pr 3GPP TS 29.234
UMTS over IP
UMTS over IP

UMTS over IP
Supported Protocols Standard / Specification
RANAP 3GPP TS 25.413 V6.3.0 (2004-09)
RNSAP 3GPP TS 25.423 V6.4.0 (2004-12)
NBAP 3GPP TS 25.433 V6.3.0 (2004-09)
M3UA RFC 3332
SCCP ITU ITU-T Q.711-Q.714
GMM (GPRS Mobility Management) 3GPP TS 24.008 V5.0.0
CC 3GPP TS 24.008 V5.0.0
MM 3GPP TS 24.008 V5.0.0
RR 3GPP TS 04.18 V8.13.0
GCC (Group Call Control) 3GPP TS 44.068 V9.0.0
BCC (Broadcast Call Control) 3GPP TS 44.069 V9.0.0
SMG (GPRS Session Management) 3GPP TS 24.008 V5.0.0
SMS 3GPP TS 03.40 V7.5.0 & 3GPP TS 04.11 V7.1.0 GSM 03.38 version 7.2.0
GPRS Gb and Gn over IP

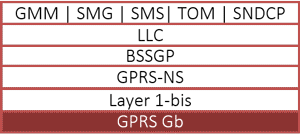

GPRS Gb Interface

GPRS Gb Interface


GPRS Gn Interface

GPRS Gn Interface
Supported Protocols Standard / Specification
SMG 3GPP TS 04.08 V7.19.0
SNDCP
(Subnetwork Dependent Convergence Protocol) 		3GPP TS 04.64 V8.7.0
BSSGP 3GPP TS 08.18 V8.10.0
LLC
 (Logical Link Control) 		3GPP TS 04.64 V8.7.0
GMM
(GPRS Mobility Management) 		3GPP TS 04.08 V7.19.0
SMS 3GPP TS 03.40 V7.5.0 / GSM 03.38 version 7.2.0
TOM 3GPP TS 04.64 V8.7.0 (2001-12)-Annex B
NS (Network Service Frame Relay) GSM 8.16 ETSI TS 101 299 V8.0.0
GTP / GTPv2 / GTP
(GPRS Tunnelling Protocol) 		3GPP TS 09.60 V7.9.0 / 3GPP TS 29.060 V6.5.0 / 3GPP TS 32.005 V3.7.0 and 3GPP TS 32.015 V3.12.0
LAPF Q.922
GSMA and GSMAbis over IP

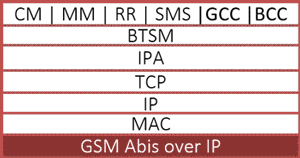

GSM Abis over IP

GSM Abis over IP

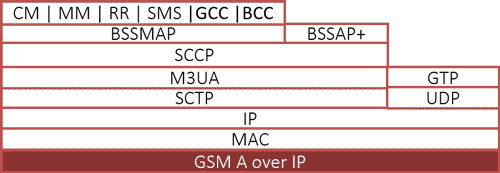

GSM A over IP

GSM A over IP
Supported Protocols Standard / Specification
BSSAP+ 3GPP TS 29.018 V6.0.0
BSSAP-LE (BSSMAP-LE/DTAP-LE) 3GPP TS 49.031 V7.3.0
CC 3GPP TS 04.08 V7.17.0
MM 3GPP TS 04.08 V7.17.0
GCC (Group Call Control) 3GPP TS 44.068 V9.0.0
BCC (Broadcast Call Control) 3GPP TS 44.069 V9.0.0
RR 3GPP TS 04.08 V7.17.0
BSSGP 3GPP TS 08.18 V8.10.0
LLC 3GPP TS 04.64 V8.7.0
GMM 3GPP TS 04.08 V7.19.0
BTSM 3GPP TS 08.58 V8.6.0

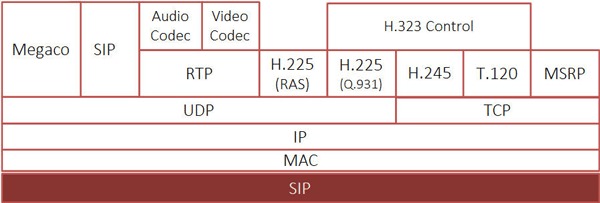

SIP Protocol Stack
SIP Protocol Stack

SIP Protocol Stack
Supported Protocols Standard / Specification
RTP, RTCP RFC 3550
MEGACO RFC 3525
MEGACO RFC 3015
MGCP RFC 3435
H245 H.245
RAS H.225
ISDN H225 H225 Q.931 Layer
STUN RFC 3489
DNS RFC 1035
DHCP RFC 1533, 2131
SMTP RFC 2821
POP3 RFC 1939
HTTP RFC 2616
FTP RFC 959
SNMP RFC 1157, 1155, 1902,3416, 2863, 2578, 3418, 2011, 2012 etc
T38 ITU-T T.38
ARP RFC 826
RARP RFC 903
RIP RFC 2453
SCTP RFC 2960
COTP RFC 905 - ISO Transport Protocol specification ISO DP 8073
CLNP RFC 994 - Final text of DIS 8473
H450 ITU-T Recommendation H.450.1 to H.450.12
USPS USPS Specification
RIEP RFC 995
RFC 2833 RFC 2833 / RFC 4733
H263 ITU-T H.263
STP IEEE Std 802.1D-2004
NBNS RFC 1002
DECnet RP (Routing Protocol) DECnet DIGITAL Network Architecture Routing Layer Functional Specification Version 2.0.0 May 1983
DECnet MOP (Maintenance Operation Protocol) DECnet DIGITAL Network Architecture Maintenance Operations Functional Specification Version 3.0.0 September 1983
DECnet NSP (Network Service Protocol) DECnet DIGITAL Network Architecture NSP Functional Specification Phase IV Version 4.0.1 July, 1984
DECnet SCP (Session Control Protocol) DNA FS SESSION CONTROL
DECnet DAP (Data Access Protocol) Decnet Digital Network Architecture Data Access Protocol (Dap) Functional Specification Version 5.6
DECnet CTERM (Command Terminal) Digital Terminal Software Architecture Network Command Terminal Specification Version 1.4
DECnet LAT (Local Area Transport) Proprietary
DECnet STP (Spanning Tree Protocol)
DECnet LAVC (Local Area VAX Cluster)
SNAP RFC 1042
SMB ftp://ftp.microsoft.com/developr/drg/CIFS/SMB.TXT
IPMReg RFC 3220
IPMAgentAdv RFC 3220
IDP
SPP
DDP RFC 1742 (AppleTalk Management Information Base II)
ATP RFC 1742 (AppleTalk Management Information Base II)
VinesIP
VinesSPP
VinesIPC
VinesRTP
RFC1006 (ISO Transport Service on top of the TCP Version: 3) RFC 1006
NetBIOS
Bootstrap RFC 951
IGRP
LAP
RTMP
SNA Systems Network Architecture Formats - GA27-3136-20
RPCall RFC 1050 / RFC 1831
NetIPX
NFS RFC 1094
NSAP
NRIP
NCP RFC 801
IPv6 RFC 2460, RFC 2402, RFC 2406
ICMPv6 RFC 2463, 2461, 1885, 2894, 3122, 3810, 3775, 3971, 4286, 4066
OSPF RFC 2328
PIMSMDM (PIM-SM : RFC 4601 / Obsolete 2362)
(PIM-DM : RFC 3973).
MPEG2 RFC 2250
PIM_IP (IP layer comes above PIM-sm/dm) RFC 791
WiMAX WiMAX Forum Network Architecture Stage3 Detailed Protocols and Procedures (Release1.0.0)
GRE RFC 2784 / RFC 1701
SMPP Short Message Peer-to-Peer Version 5.0 19-February-2003.
LDP RFC 5036
MPLS RFC 5036
RSVP RSVP : RFC-2205, RFC-2210
RSVP-TE : RFC-3209
EIGRP
PPPoE RFC 2516
IGMP RFC 3376, RFC 2236, RFC 1112
NTP RFC 1305
Skinny

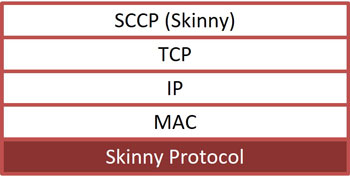

Skinny Protocol Stack
Skinny Protocol Stack

Skinny Protocol Stack
Supported Protocols Standard / Specification
CLTP T-REC-X.234
SDP RFC 4566
RTSP RFC 2326
SS7 SIGTRAN
SIGTRAN Protocol Stack

SIGTRAN Protocol Stack
Supported Protocols Standard / Specification
ISUP ITU ITU - Q.761, Q.762, Q.763 and Q.764
ISUP ETSI EN 300 356 -1 V3.2.2(1998-08)
ISUP ANSI ANSI - T1.113.1 to T1.113.4
IUA RFC 4233 / RFC 5133
BICC BICC pl-080r1, T-REC-Q.1902.2-07/2001, T-REC-Q.1902.3-07/2001
TUP ITU T-REC-Q.723-11/1988
SCTP RFC 2960
SCCP ITU ITU-T Q.711-Q.714
SCCP ANSI ANSI rec. T.112 (1996), T1.116.2 (1996)
SCCP ETSI EN 300 009 -1, sept 1996, 3rd edition
SUA ITU RFC 3868
SUA ANSI Internet Engineering Task Force: Draft 2026 (sec.10)
M2UA RFC 3331
M2PA RFC 4165
SUA ITU RFC 3868
SUA ANSI Internet Engineering Task Force: Draft 2026 (sec.10)
M3UA ITU RFC 3332
M3UA ANSI RFC 3332
MTP2- ITU ITU-T Q.703
MTP3 ITU ITU-Y Q.701-Q.705 / ITU-T Q.782
MTP3 ANSI T1.111.4-1996
MTP2, MTP3 ANSI T1.111.4-1996
ICMP RFC 792
MAP R99 3GPP TS 09.02 V7.14.0 (2003-09)
MAP R4 3GPP TS 29.002 V4.18.0
TCAP ITU ITU-T Q.771 - Q.775
TCAP ANSI IS-41 TIA/EIA, IS41.1-C, IS41.5
INAP CS1 ITU / ETSI Q1218 and ETS 300 374 1, Sept, 1994
INAP CS2 ITU INAP - Capability Set 2. (Q.1228)
INAP CS2 ETSI INAP - Capability Set 2. (EN 301 140-1-v1.3.4-1999-06)
CAMEL V3 3GPP TS 29.078 V3.15.0
CAMEL V6 3GPP TS 29.078 6.3.0 (2004-09)
Test & Network Management Messages (ITU) ITU-T Q.703, Q.704
Test & Network Management Messages (ANSI) ANSI T1.111.4 - 1996

ISDN-SIGTRAN
Q.931 ITU-T Q.931 / Q.932(Facility IE) / Q.955.3 (MLPP Procedures)
DASS2 BTNR 190:June 1992
DPNSS ND1301:2001/03
