High Density Multi-Protocol Monitoring of Ethernet and IP Networks

Welcome to the latest issue of GL's Newsletter providing insight into our enhanced PacketScan™ HD network appliance to capture and analyze high speed Ethernet traffic over 1 Gbps, 10 Gbps, 25 Gbps, 40 Gbps and 100 Gbps networks.

PacketScan™ HD

Overview

GL’s PacketScan™ HD is a high-density Ethernet monitoring appliance with specialized network interface cards, large storage capacity and protocol analysis software. Almost all Voice over IP (VoIP) and Wireless protocols over IP can be captured and decoded for troubleshooting network problems. Users can perform lossless packet capture, analyze high speed networks and high-volume simultaneous calls with bidirectional RTP traffic.



Key Features

  • Capture IP traffic across high speed (1 Gbps, 10 Gbps, 25 Gbps, 40 Gbps, 100 Gbps) links without loss
  • Filter on traffic of interest (source/destination IP addresses, ports, protocols, etc.)
  • Comprehensively analyze VoIP calls and Wireless IP Traffic
    • Call Detail Records
    • Surveillance
    • Voice quality metrics and other Key Performance Indicators
    • Long term storage
  • Portable platform for network monitoring and analysis in the field
  • Visualize the data with rich graphics, ladder diagrams, call traces and more
  • Automatically connect to a remote database for remote monitoring

The application is enhanced with the following:

  • Provides options to configure the whitelist numbers with wildcards to mark and act on such calls
  • Filtering and searching through packets based on
    • IPv4 and IPv6 address range or mask
    • GTP (Inner UDP, Inner TCP, and SCTP fields)
    • IP address list and IP address pair for Inner, Outer and Inner/Outer
  • Filtering can be applied based on protocol headers such as MAC, VLAN, IPv4, IPv6, UDP, TCP, SCTP, Inner IP layer, and Inner transport layer
  • Supports wirespeed hardware filtering and nanosecond timestamping
  • Enhanced with slicing option to slice the packets to user specified length and provides option to remove duplicated traffic
  • Criteria-based voice/trace recording based on whitelist numbers or degraded voice quality, failure calls, etc.
  • Enhanced to process NG-911 text calls (SIP and MSRP), included MSRP messages in SIP Call Graph, and supports exporting of MSRP frame details to CSV files
  • Display of frame wire-length and capture length for sliced packets
  • Packet Data Analysis support for IP traffic over Multi-Protocol Label Switching encapsulation
  • Supports decoding and reassembly of additional headers in Border Gateway Protocol

PacketScan™ HD includes the PacketScan™ software to capture, segregate, monitor, and collect statistics on all types of calls over IP. It can decode all VoIP and Wireless protocols and provides Quality of Service statistics on voice calls.

PacketScan™ HD can send captured data to GL’s centralized database and dashboard known as NetSurveyorWeb™, providing a convenient web browser display for the remote user.

GL’s PacketScan™ HD support FastRecorder™ and PacketExtractor™ application for wirespeed IP traffic filtering and recording up to 100 Gbps direct to disk for offline filtering, extraction, and analysis. These applications support 4 x 1 Gbps or 2 or 4 x 1/10 Gbps or 2 x 25/40/100 or 8 x 10 Gbps Ethernet interfaces.



PacketScan™ HD Hardware Platforms

GL’s PacketScan™ HD is available in either portable or rack-mount units with smart network interface cards having different Ethernet rates such as 4 x 1 GigE, 2 x 10 GigE, 2 x 40 GigE and 2 x 40 / 2 x 100 GigE variations to capture packets at high speeds.

Packetscan HD 2u Rack Unit

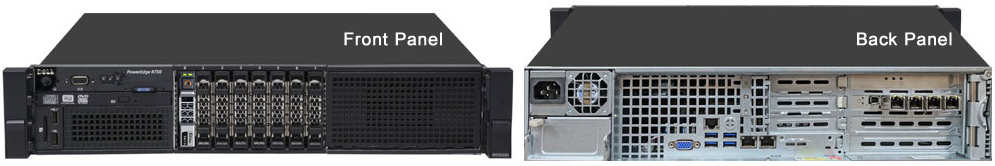

PacketScan™ HD Rack-Mount Unit

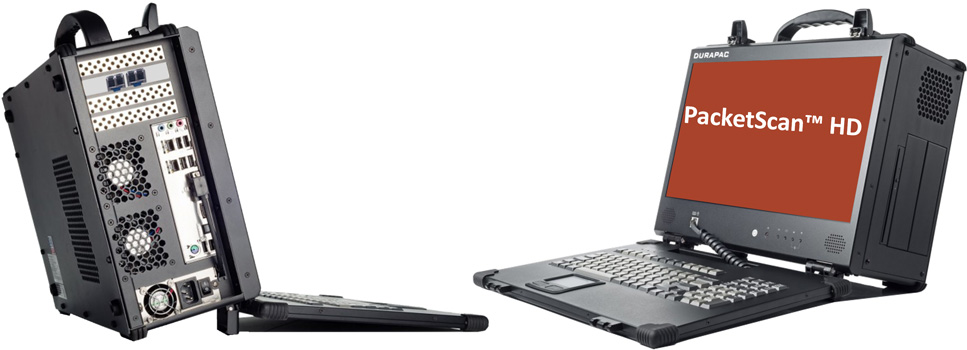

PacketScan™ HD Portable Unit

PacketScan™ HD Portable Unit
