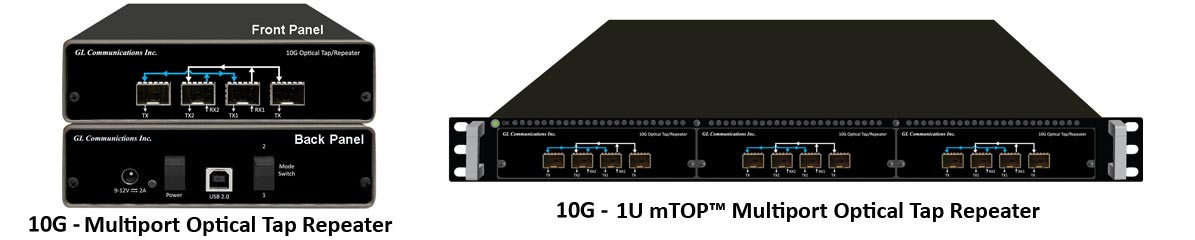

10g - Multi Tap Optical Repeter
Multi Tap Optical Repeter
T1 E1 Hardware Platform - Card
T1 E1 Hardware Platform - Card
Single E1 Multiport Repeater

Multiport Repeaters

Multiport Repeaters are used to generate multiple identical T1/E1 outputs for each T1/E1 input, thus increasing the range of transmission of T1/E1 signals. A single/ dual Multiport Repeater can be used for the following purposes:

  • To generate multiple identical T1/ E1 outputs for each T1/ E1 input
  • To test and load multiple T1/ E1 interfaces simultaneously
  • For broadcast applications and traffic generation and simulation
  • To preserve the strength of the signal and extend the distance over which the signal representing the data can be transmitted

The single bantam version provides ten identical outputs from a single T1/ E1 input. The single RJ45 version provides twelve identical outputs from a single T1/ E1 input. The dual version provides four outputs for each of the two inputs. The device is also useful in lab environments for load testing and signal duplication purposes. The output signals are regenerated versions of the input signal(s), that is, the input signal is detected via a data and clock detector circuit and regenerated at the output with identical line coding.

GL offers mTOP™ high-density rack hardware test platforms, which are 1U/2U rack enclosures within which USB based T1 E1 Multiport Repeaters can be stacked to provide high density form factor solution.

The sleek design of T1 E1 Multiport Repeaters portable hardware device allows multiple units to be easily placed in a mTOP™ 1U/2U rack mount enclosure, the variations available are –

  • (MT001/MT001E + MPT00) – mTOP™ T1 Multiport Repeater 1:12 T1 Repetition
  • (MT001/MT001E + MPE00) – mTOP™ E1 Multiport Repeater 1: 12 E1 Repetition
  • (MT001/MT001E + DPT00) – mTOP™ Dual T1 Multiport Repeater 2X1:4 T1 Repetition
  • (MT001/MT001E + DPE00) – mTOP™ Dual E1 Multiport Repeater 2X1:4 E1 Repetition

A single T1 E1 Multiport Repeaters mTOP™ test solution with stacked rack units greatly reduces the licensing costs per device. It is a perfect T1 E1 Multiport Repeater for customers who require multi-port testing but are constrained by lab space. For more details on mTOP™ rack-based platform, refer to Test Tools in Rack Based Platforms.


Common Features of Single/ Dual Multiport Repeaters

  • The input and output connections are through standard bantam or RJ 45 jacks
  • Inputs and outputs are compatible with CCITT G.703
  • Units operate on a voltage of 7-12 V DC and draw a current of up to 1000 mA
  • T1 and E1 signals are terminated at 100 Ohms or 120 Ohms respectively
  • The repeater permits output drive for line lengths up to 655 feet
  • The T1 Multiport Repeater and E1 Multiport Repeater are available as separate units
  • LEDs are provided to indicate the presence or absence of input signals and power
  • Provides Terminate, Bridge and Monitor mode of operations

Dual Multiport Repeater Features

Input Features

Provides two independent sections of logic that repeat and multiply input T1/ E1 signals; each input is repeated 4 times at the output. For each section, the input termination is 100 Ohms(T1)/120 Ohms(E1) balanced (bantam or RJ45) through a front panel switch.

Output Features

  • Each section has four outputs: two outputs are each output is 100 Ohms(T1)/120 Ohms(E1) balanced (bantam or RJ 45).
  • The output of one section can be fed to the input of the second section, thereby providing seven identical outputs consisting of seven (7) bantam or RJ45 outputs.

Single Multiport Repeater Features

Input Features

Terminate and Monitor Input:
  • DSX level E1 signal is terminated at 120 Ohms
  • DSX level T1 signal is terminated at 100 Ohms
    Bridged Input:
  • DSX level T1/E1 signal is terminated at > 1000 Ohms

Output Features

  • A single Multiport Repeater contains ten or twelve identical output ports.
  • The input T1/ E1 signal is regenerated and provided at the ten or twelve output ports.

Portable Unit - Specifications

Physical Dimensions Dimensions of Dual Multiport Repeater (2 x 4): 5.5" x 5.5" x 1.5"
Dimensions of Single Multiport Repeater (1 x 10): 6.5" x 5.5" x 1.5"
Power Supply Features The required input voltage to the T1/ E1 Multiport Repeater is 9V DC. Please use the supplied AC/DC adapter for 120V (or 220V) AC power supply. The output of the adapter is 9V DC. The current drawn is 500 mA.
LED Indicators

The T1/ E1 Multiport Repeater has 12 LEDs on the front panel.

  • The first LED (next to the input bantam jacks) indicates the input signal status. This LED turns on when a valid T1/ E1 input signal is connected.
  • LEDs from 2nd to 11th indicate the output signal status. These LEDs are lit if there is a valid output signal.
  • The last LED indicates the input power status. This LED is lit when the power to the repeater is switched on.

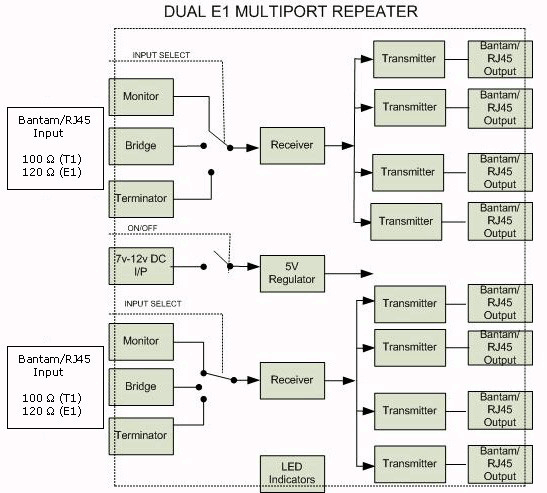

Layout of Dual E1 Multiport
                                  Repeater

Layout of Dual E1 Multiport Repeater

Optical Tap Repeaters (OTR)

SONET SDH Ethernet Optical Tap Repeaters

Multiport Optical Tap Repeater hardware test platform provides multiple identical outputs for optical and electrical signals at OC-3 / STM-1, OC-12 / STM-4, OC-48 / STM-16, 1 GigE, 2.5 GigE and 10 GigE rates. The need for optical taps that cut the optical power by 30% or 50% are not needed, since the signals are repeated at full power.

Features of OTR – 100 Mbps to 2.5 Gbps

  • Accepts up to 6 standards SFPs from OC-3 to OC-48, or 1 GigE and 2.5 GigE
  • SFPs can be Electrical (Copper) or Optical Fiber (Single or Multimode)
  • Mode Switch = 1 Pass thru Input to 5 Identical Outputs, or
  • Mode Switch = 2 Pass thru Inputs to 2 Identical Outputs/each
  • Cascade two or more OTRs for greater duplication
  • Convert Single Mode to Multimode
  • Convert Optical to Electrical or Electrical to Optical
  • Error free repetition


1G portable Multiport Optical Tap Repeater

1G Portable Multiport Optical Tap Repeater

Multi-Rate OTR for 100 Mbps to 2.5 Gbps

SONET/SDH or Ethernet Bit Rate
OC-3/STM-1 155.52 Mbps
OC-12/STM-4 622.08 Mbps
OC-48/STM-16 2488.32 Mbps
100 Mbps 100 Mbps
1 GigE 1000 Mbps

2.5 GigE

2500 Mbps

Features of OTR – up to 10 Gbps

  • Accepts up to 4 standards SFPs or SFP+s from OC-3 to OC-192, or from 1 GigE up to 10 GigE

  • SFP and SFP+ can be Single or Multimode or a mixture of each

  • Do Not Use 10G Electrical SFPs, current draw is too great

  • Cascade two or more OTR 10Gs for greater duplication

  • Convert Single Mode to Multimode

  • Error free repetition

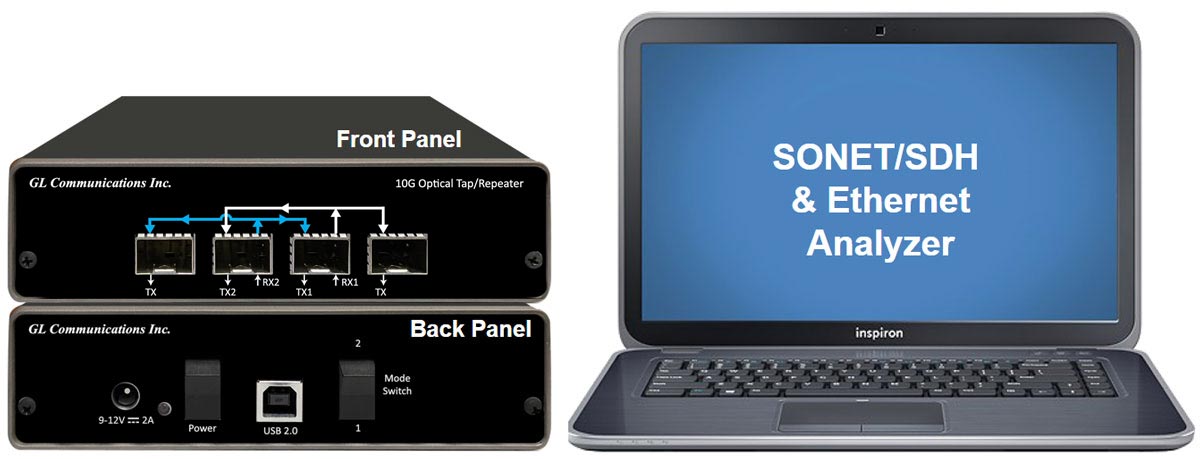

10G portable Multiport Optical Tap Repeater

10G Portable Multiport Optical Tap Repeater

Multi-Rate OTR for up to 10 Gbps

SONET/SDH or Ethernet Bit Rate
OC-3/STM-1 155.52 Mbps
OC-12/STM-4 622.08 Mbps
OC-48/STM-16 2488.32 Mbps
OC-192/STM-64 9.953 Gbps
100 Mbps 100 Mbps
1 GigE 1000 Mbps

2.5 GigE

2500 Mbps

10 GigE

10,000 Mbps

High Density - mTOP™

mTOP™ - High Density Rack Mount Form Factor

High Density T1 E1 Multiport Repeaters form factor solution are used are used to generate multiple identical T1/E1 outputs for each T1/E1 input, thus increasing the range of transmission of T1/E1 signals. The chassis comprises of A single/ dual Multiport Repeater with stacked USB units greatly reduces the licensing costs per device.

 Hardware Specifications

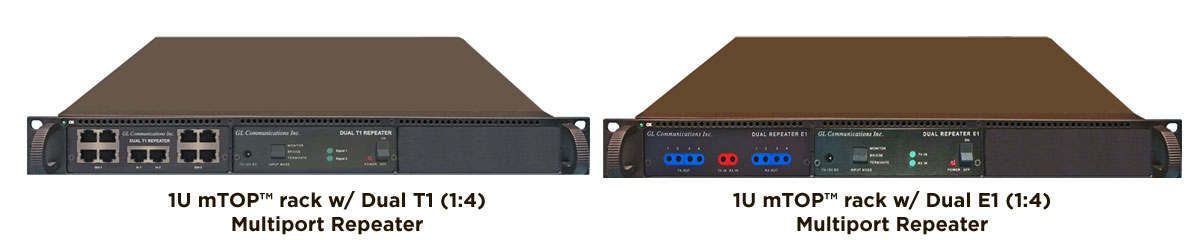

1U mTOP™ rack w/ Dual T1 (1:4) Multiport Repeater
(Front Panel View)




1U mTOP™ rack w/ Dual E1 (1:4) Multiport Repeater
(Front Panel View)

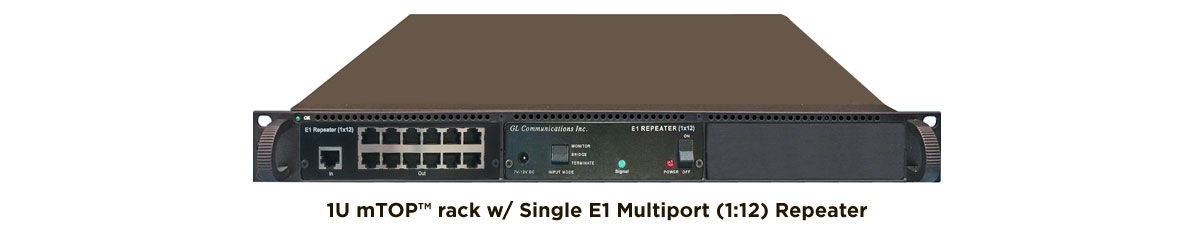

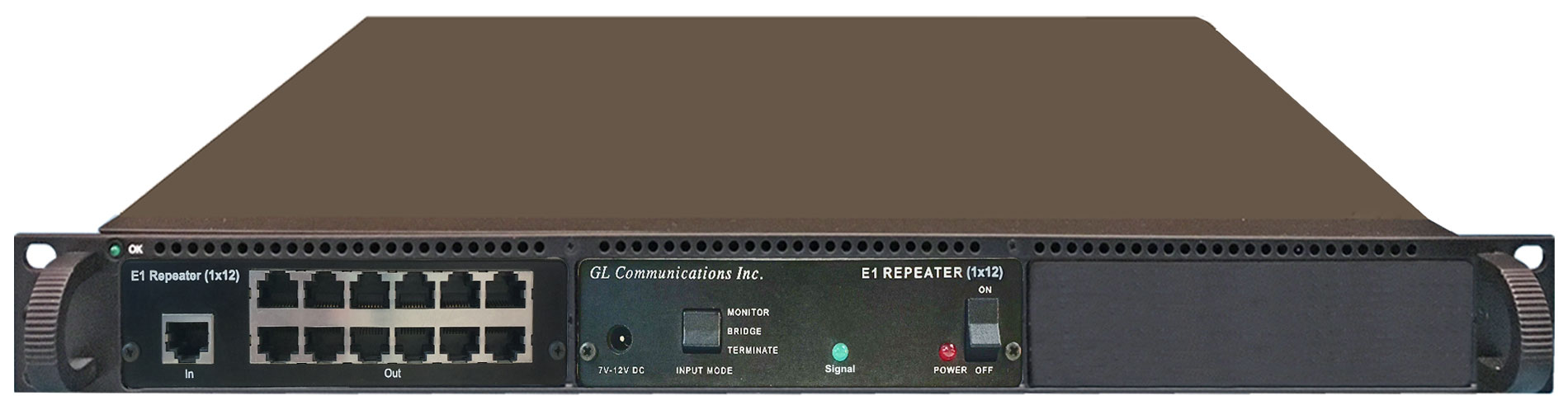

1U mTOP™ rack w/ Single E1 Multiport (1:12) Repeater
(Front Panel View)




1G - 1U mTOP™ Multiport Optical Repeater
(Front Panel View)

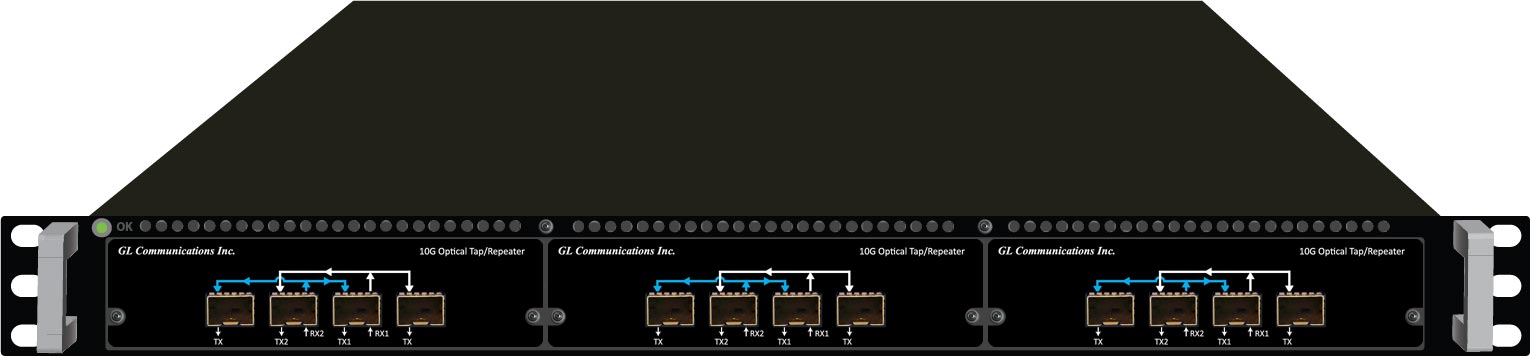

10G - 1U mTOP™ Multiport Optical Repeater
(Front Panel View)

  • Height: 1U Rack
  • Length: 16 Inches
  • Width: 19 Inches
  • mTOP™ System (embedded SBC, T1 E1 Multiport Repeater)

  • Multiport Repeater Unit
    • A dual bantam version provides four outputs for each of the two T1/ E1 input.
    • A single RJ45 version provides twelve identical outputs from a single T1/ E1 input.
    • A dual version provides four outputs for each of the two inputs.
  • Multiport Optical Tap Repeater Unit
    • Accepts up to 6 standards SFPs from OC3 to OC48, or 1 GigE and 2.5 GigE
    • SFPs can be Electrical (Copper) or Optical Fiber (Single or Multimode)
    • Converts Single Mode to Multimode
    • Mode Switch = 1 Pass thru Input to 5 Identical Outputs, or
    • Mode Switch = 2 Pass thru Inputs to 2 Identical Outputs/each
  • SBC specifications
    • Intel Core i3 or optional i7 Equivalent, Windows® 10 64-bit Pro Operating System
    • USB 2.0 or 3.0 Ports, ATX Power Supply
    • 240GB Hard drive, 8G Memory (Min)
  • Order information
    • MT001 - 1U mTOP rack with SBC (Intel Core i3)
    • MT001E - 1U mTOP rack with SBC (Intel Core i7)
    • MPT00
    • MPE00
    • DPT00
    • DPE00
    • T1 E1 Multiport Repeater Options

      Refer to T1 E1 Product List



Resources

Item Description
MPT00 T1 Multiport Repeater 1:12 T1 Repetition
MPE00 E1 Multiport Repeater 1: 12 E1 Repetition
DPT00 Dual T1 Multiport Repeater 2X1:4 T1 Repetition
DPE00 Dual E1 Multiport Repeater 2X1:4 E1 Repetition


All units are available in RJ-45 or Bantam interfaces
