Communication Traffic Recorder & Protocol Analyzer

Overview

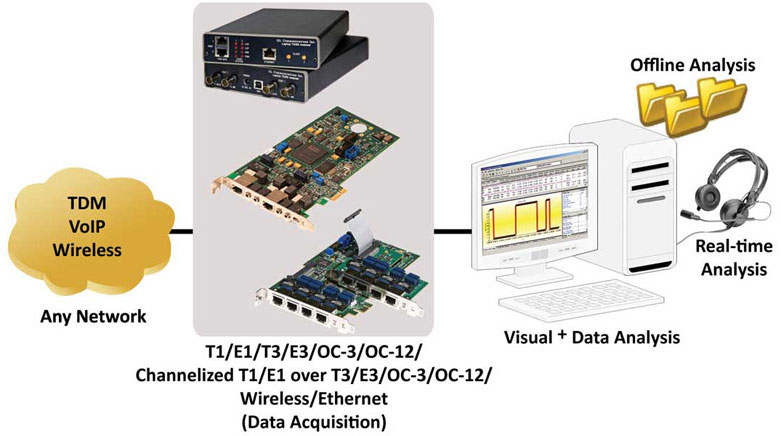

GL's Communication Traffic Recorder & Protocol Analyzer test suite includes advanced testing, analysis, & emulation capabilities of almost all standard protocols over T1/E1, T3/E3, and VoIP. The test suite comprises of the following hardware to interfaces with Wireless, and TDM networks of data rates 34 Mbps (E3), 2.048 Mbps (E1), and 1.544 Mbps (T1) -

The test suite interfaces with VoIP network using the following software -


Main Features

  • Handles advanced protocol decoding and capturing
  • Handles traffic classification, monitoring, and recording
  • Unlimited and continuous capability of recording the traffic to files for future analysis
  • Supports data rates of 34 Mbps (E3) and 2.048 Mbps ( E1) & 1.544 Mbps (T1)
  • Based on a uniform architecture with identical features and functions makes the test suite flexible to perform any basic to advanced testing
  • Advanced search & filtering abilities to drill through the capture for the required frames
  • Filtering of the frames can be performed during real-time capture as well as on the pre-captured files
  • Numerous statistics can be obtained to study the performance and trend in the network
  • Graphically analyze captured traffic using wave graph, spectral display, and/or using other shareware such as Adobe Audition, and Goldwave

Applications

  • Can be used as independent standalone units as "probes" integrated in a network surveillance systems
  • Triggering, collecting and filtering for unique subscriber information and relaying such information to a back end processor
  • Collecting Call Detail Records (CDR) information for billing

USB based T1/E1 Analyzer

GL's new USB based T1 E1 Analyzer is the world's most powerful, full featured, and complete BERT, voiceband, data, signaling, and protocol analyzer on the market. It can perform analysis and emulation of various signal types including voice, digits, and tones; various protocols including HDLC, ISDN, SS7, CAS, Frame Relay, GSM, GPRS, CDMA, and UMTS. It is capable of T1 or E1 PCM signal visualization, capture, storage, analysis, and emulation. In addition, convenient features are available like portability, USB friendly interface to a PC, remote control, and scripting. For a comprehensive understanding of the above product, please visit T1/E1 Analyzer web page.

Communication Traffic Recorder & Protocol Analyzer Suite Specifications of USB Based T1/E1 Analyzer

Basic Features

Special Features

Monitor T1 or E1 Status


Monitor T1/E1 Alarms, Errors, & Level measurement of signal for all time slots of E1 and T1


Rx Signal Monitoring


Byte Values & Binary Byte Display for all time slots
Monitor signaling bits
Power Level Display for all time slots
DC Offset Display for all time slots
Frequency Display for all time slots
Multi-frame Byte Display
Real Time Multi-frame Monitoring
Real Time Bitmap Monitoring
Time Slot Byte Display
Real-time Oscilloscope Display of DS0
Real-time Power Spectral Display of DS0
Audio Monitoring
Active Voice Level Monitoring


Intrusive Testing Applications


Full / Fractional T1 or E1 BERT with Drop & Insert
Enhanced Multi Channel Bit Error Rate Tester Transmit Tone
Transmit Gaussian Noise
User-defined Multi-frame
Signaling Bits
Precision Delay Measurement
Tx_Rx Loopback
Error Insertion
Four Wire VF Interface with Drop & Insert

API Development Software Toolkit (Programmers Guide)
Real-Time T1 or E1 Multi-Channel Audio Driver
Multi-Channel BERT Software Transmit / Receive File Utility
Record / Playback File
DTMF/MF/MF-R2 Detector and Generator
Real-time Strip Chart
T1 or E1 Call Capture/Analysis
Signaling Bits Recorder
Multiplex / De-multiplex Software

Basic Client/Server Scripted Control Software

w/ Traffic Classifier
w/ High Throughput MC MLPPP Tx/Rx Test


TDM Echo Canceller Test Tools


Echo Path Delay / Loss Simulation Software
Echo Path Delay / Loss Measurement Software
Digital Echo Canceller
Audio Processing Utility


Voice, Fax & Modem Analysis over TDM


Call Management Utility
GLInsight™ Fax Analysis TDM
GLInsight™ Modem Analysis TDM
Voice Band Analyzer
GoldWave (Waveform Viewer)


TDM Protocol Testers


Real-time ISDN Protocol Analyzer
Real-time ISDN Protocol Emulator
Real-time SS7 Protocol Analyzer
Real-time HDLC Decode/Store/Impair Software
Real-time GR303 Protocol Analyzer
E1 Real-time V5.x Protocol Analyzer
E1 Real-time Maintenance Data Link Analyzer
Channel Associated Signaling Simulator


Packet and Frame Protocol Testers


Real-time PPP and ML-PPP Analyzer
Real-Time Frame Relay Protocol Analyzer
Real-Time CDMA2000 Protocol Analyzer
Real-Time UMTS Protocol

For a comprehensive understanding of the above product, please visit Basic Applications & Optional Applications web page.


USB based T3/E3 Analyzer

GL's T3 (DS3) /E3, T1/E1 and Ethernet analysis platform is one of the smallest and lightest unit with dual data stream capture capability. The pod when connected to a Notebook PC is capable of capturing two full T3 / E3 data streams, dropping and inserting T1 or E1, full Ethernet analysis, and HDLC, ATM, FR, and PPP Analysis. For a comprehensive understanding of the above product, please visit T3 E3 Analyzer web page.

Communication Traffic Recorder & Protocol Analyzer Suite Specifications of USB Based T3/E3 Analyzer

Basic Features

Special Features

Monitor T3 or E3 Status
Alarm Generation and Error Injection
Tx Rx Memory Loopback
Monitor Received Data
Transmit and Receive Configurations
Multiplex and De-multiplex T1 or E1 signals
Bit Error Rate Test - BERT (Full Frame and Unframed)

T3 FEAC Messaging
Playback (Transmit from File) / Record (Capture to File) applications

For a comprehensive understanding of the above product, please visit T3 E3 applications web page.


VoIP Analyzer

Communication Traffic Recorder & Protocol Analyzer Suite Specifications of VoIP Analyzer

PacketScan™

SIGTRAN Analyzer
  • Supports SIP (SIP Session Initiation Protocol -2543 and -3261), Megaco3525, Megaco3015, MGCP, H323/H225, and RTP
  • Supports decoding of MAC, IP, SIP, UDP, TCP, RTP, RTCP, T.38 (Fax over IP), and SMPP (Short Message Peer to Peer Protocol)
  • Standard codec supported - G.711, G.726, G.729AB, GSM, iLBC, AMR, EVRC,G.722.2, iSAC
  • Listen / record VoIP calls in real-time
  • In-depth RTP Traffic Analysis with host of graphs and statistical information

For a comprehensive understanding of the above product, please visit PacketScan™ web page.
  • Supports SCTP, M2UA, M3UA, M2PA, SUA, IUA, SIGTRAN protocols
  • Supports decoding of MTP2, MTP2, M2PA, MTP3, MTP3, MAP, INAP, CAMEL, and more.

For a comprehensive understanding of the above product, please visit SIGTRAN web page.

Resources

Note: PCs which include GL hardware/software require Intel or AMD processors for compliance.

Item No. Item Description
CPT001 Communication Traffic Recorder & Protocol Analyzer Suite
  Related Hardware
  Dual Laptop T1/E1 Hardware USB Base Unit w/ Basic T1 or E1 software
(Item No: UTE001, Basic Software -UTA001/UEA001, SA000c)
  Dual T3 E3 / T1 E1 Hardware USB Base Unit w/ Basic T3 or E3 Software
(Item No: TE3001, Basic Software - TT3001/ EE3001)
  Hardware Platforms
  Notebook PC (Item No: SA005d)

Ruggedized Lunchbox PC (Item No: SA005i)

Portable Pentium Lunchbox PC (Item No: DP001)


* Specifications and features subject to change without notice.
