Voice, Video, and Data Testing
in Wireless Network

VQuad™ Software Ver 9.1 | VQT Software Ver 7.1 | WebViewer™ Software Ver 5.1  | Download Now!


Overview

Wireless networks can impair voice, video, and data quality by various means including poor mobile phone quality, voice compression and decompression algorithms, video compression and decompression algorithms, delay, loss or gain in speech levels, noise, acoustic and landline echo, and other distortions. GL provides a compact and portable solution for Wireless Devices, and Mobile Radio testing.

Using the GL VQuad™ application with the Dual UTA HD, or all-in-one VQuad™ Probe HD, voice, video, and data QoS can be tested for practically any end-point (customer experience) interfaces. The  Dual UTA HD is a compact and portable device which provides multiple interfaces for connecting to any communication device on a network.  The VQuad™ with Dual UTA HD can work with variety of networks, including Wireless (Bluetooth®, Wi-fi, 3G, 4G, LTE, PTT), VoIP, Analog, and TDM. Various associated applications (Voice QualityVideo QualityData testsEcho and Delay testsFax testsVBA) works with VQuad™ Dual UTA HD to provide "end-to-end assessment" with additional test and measuring capabilities.

Additionally, the Dual UTA HD includes support for testing HD voice using Bluetooth® Wideband, FXO Wideband, and also includes PTT interface for wireless mobile device testing.

Enhanced VQuad™ with Dual UTA HD supports two methods of automated testing of mobile devices, Bluetooth and Wired Headset using GL’s new cable, Smartphone with Automated Call Control (ACC). Through the VQuad™ script (or manual operation), calls can be setup and send messages using iPhone SIRI or Android Google Voice available on mobile devices. VQuad™ includes Text-to-Speech technology for automatically creating the necessary voice prompts required to work with Siri or Google Voice.

Results provide an excellent overall measure of end-to-end voice, video, data, and signal quality. All the applications work in conjunction with the VQuad™ for automatically and remotely analyzing the captured data and sending the test results to the central database.  You can query results remotely or control the tests using web-based WebViewer™.


Main Features

  • Supported devices - Mobile Radio (PTT) & Mobile devices (Wi-Fi, WiMax, Bluetooth®, Broadband (3G or 4G), LTE, iPhone, Android)
  • Control Smartphones on any wireless network (Bluetooth®, 5G, VoLTE, VoWiFi, VoFemto, 3G) - - both NB and WB voice supported
  • Compact and portable solution for testing mobile end-to-end voice, video, and data quality
  • Automated mobile phone testing using either Bluetooth or the Wired Headset Smartphone ACC methods
  • Mobile phone connects to the Dual UTA HD PTT interface using the GL Smartphone ACC cable
  • Wired Headset supports NB, WB, SWB.
  • Mobile Phone call control supports Bluetooth®, Dual PTT, 3.5mm Audio Jack, and Dual 3.5mm In/Out terminations for Smartphones (iPhone, Android)
  • Dual UTA HD Bluetooth® can connect to Bluetooth® headsets, Bluetooth® in the car, and any Bluetooth® device to perform Voice Quality Tests
  • Bluetooth® compatible. Performs RSSI, Battery level functions, Network verification.
  • Support for Bluetooth Wideband with 16000 Sampling Rate used in VoLTE network with AMR Wideband codec (requires latest Dual UTA HD firmware and hardware).
  • Control Mobile Radios with Push-to-Talk functionality; Supports radio keying and send/record audio
  • Results available in real-time or post-processing
  • Compatible with automated GPS location time-stamping

Additional functionalities supported with VQuad™ Wireless:

  • Voice Quality Testing (VQT) software for analysis according to widely accepted ITU (International Telecommunications Union) voice comparison algorithms (POLQA, PESQ LQ/LQO/WB)

  • Data Quality Testing (NetTest™)application for performing automated data testing on a wireless or wired network; tests include TCP, UDP, VoIP, Route, HTTP, FTP, DNS, SMS, Email, SIMInfo, Phone Info, and UEInfo

  • Video Quality Testing (VAC™) application for performing fully automated Video Conference testing and get Audio and Video MOS QoS results along with several analytical metrics

  • Echo Measurement Utility (EMU) for echo and delay measurements, including RTD, OWD, ERL, EPD, and more

  • Voice-band Analyzer (VBA) for monitoring voice band traffic (Speech Level, Activity Factor, RMS Factor, DC Level, Noise Level, Jitter, Echo Return Loss, Echo Delay, and Echo Dispersion)

  • Fax Quality Testing for emulation and analysis of T.30 faxes (GLInsight™ or FaxScan™)

  • Drive Testing solution for plotting all results and call control information along with co-ordinates using GPS receiver option in VQuad™, and Google Maps option within WebViewer™

  • WebViewer™ for web based controlling and monitoring VQuad™ nodes over the entire network

Mobile Phone Testing using Bluetooth

The VQuad™ with Dual UTA HD system can connect to Bluetooth mobile phones or any end-equipment supporting HD (WB) audio on all interfaces.

The Bluetooth solution supports full Call Control with ability to confirm current status of call as well as sending commands to the phone, via Bluetooth, to retrieve Signal Level (RSSI), Battery Level, Current Network, to name a few.

While in the established call, traffic analysis and Voice Quality is fully supported for both NB and WB networks (VoLTE fully supported).

With the Dual UTA HD Bluetooth® option, the Dual UTA HD act as a Bluetooth® Headset and connects to the mobile phone to perform voice quality analysis along with accurate delay and level measurements on Bluetooth® enabled mobile devices.

The Dual UTA HD can act as the Mobile Device and connect to any Bluetooth® headset to perform ‘Voice Quality Tests’ on the Bluetooth® Headsets. In other words, isolate the Bluetooth® headset for voice quality analysis.

This is extremely important for testing Bluetooth® headsets, Bluetooth® in the car, and pretty much any Bluetooth® device which connects to a mobile phone for voice. Both narrowband and wideband codecs are supported.

VQuad™ is enhanced to fully automate Mobile Phone Testing using Bluetooth®. Mobile devices connected to VQuad™ via Dual UTA Bluetooth interface can be controlled through the VQuad™ scripts (or manual operation). VQuad™ can activate the iPhone SIRI or Android Google Voice and send voice commands to the mobile device in order to perform different set of functions like Placing Call, Answering calls, Rejecting calls, Disconnect calls and Sending Messages (SMS).  In addition, VQuad™ includes Text-to-Speech (TTS) technology for automatically creating the necessary voice prompts to perform these functions over Siri or Google Voice.

By invoking Siri/Google Assistant it is also possible to setup calls over VoIP applications like Skype, WhatsApp, Viber installed on iPhone devices and using Hangout app on Android devices. It is also possible to send text messages through these applications using voice commands generated using Text-to-Speech conversion facility.

Similarly, it is also possible to invoke GL applications (GLNetTest, and GLNetTestVQT) installed on the mobile devices and perform tests.

Mobile Phone Testing using SmartPhone ACC Cable



Automated Mobile Phone Testing using Wired Headset Smartphone ACC cable

The Wired headset method connects the mobile phone to the Dual UTA HD PTT interface using the GL Smartphone Automated Call Control (ACC) cable.

Through the VQuad™ script (or manual operation), the VQuad™ can activate the iPhone SIRI or Android Google Voice and send a predefined file to the mobile device in order to Place Call to a specified number (or simply Redial). In addition, VQuad™ includes Text-to-Speech technology for automatically creating the necessary voice prompt for placing call over Siri or Google Voice. In other words, the Smartphone ACC cable method includes a fully automated method for Placing Call, detect incoming Ring (for automated Answer call), Answer Incoming Call (or Reject Incoming Call), Disconnect Call, and messaging.

By invoking Siri/Google Assistant it is also possible to setup calls over VoIP applications like Skype, WhatsApp, Viber installed on iPhone devices and using Hangout app on Android devices. It is also possible to send text messages through these applications using voice commands generated using Text-to-Speech conversion facility.

Similarly, it is also possible to invoke GL applications (GLNetTest, and GLNetTestVQT) installed on the mobile devices and perform tests.

The Smartphone ACC can perform all basic Call Control functions for fully automated bi-directional call control and the method also supports NB, WB, and SWB sampling.

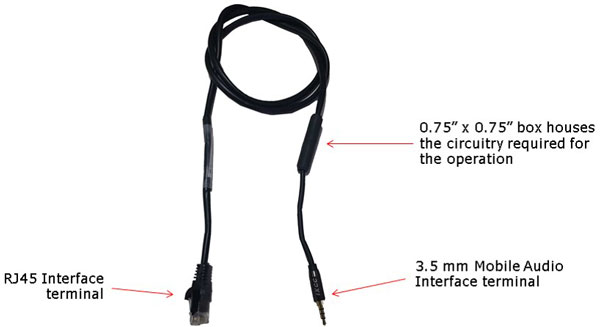

GL’s Smartphone Automated Call Control (ACC) cable is designed to connect RJ45 PPT interface of the Dual UTA HD unit to the 3.5mm jack enabled Smartphone Handset device. So, the cable has RJ45 interface at one end and 3.5mm Mobile Audio interface terminal on the other end. 0.75” x 0.75” box on the cable houses the circuitry required for the operation.


GL’s Smartphone ACC Cable (VQT461)

Voice Test Mobile App (GLNetTestVQT)

GL's NetTest VQT app, supported on rooted Android devices, supports both manual and automated testing of Voice Quality within the network. The GL NetTest VQT app includes features to place and receive calls over the network along with Play and Record voice over the established call. The call control functions and ability to send/record voice (for voice quality analysis) can be run manually from the app, automated from the app (using predefined scripts) or automatically and remoted using VQuad™ Scripting. Using this solution, testing can be accomplished between two rooted Android phones (both running the NetTest VQT app) or between the Android phone and any device connected to GL's VQuad™ with Dual UTA HD. The NetTest VQT app stamps all results with GPS location for plotting within Google Maps as part of the GL WebViewer™ solution.



Voice Quality Testing (VQT)

GL's VQT standalone software may be executed automatically (real-time and/or post-processing) or manually by entering a Reference File and Degraded File. Regardless of how GL's VQT is initiated, algorithms for POLQA, PESQ MOS, and PESQ LQ are executed simultaneously for the two voice files and results are shown graphically as well as in a tabular format. GL's VQT also displays cumulative statistics for large scale testing over long periods of time.

  • VQT software supports both POLQA (ITU-T P.863) and PESQ (ITU-T P.862/862.1/862.2)
  • VQT supports analysis of PCM16 files consisting raw data as well as u-law/a-law encoded data.
  • VQT also support analysis of uncompressed wav files consisting of narrow band, wide band and super wide band signals.
  • POLQA ITU-T P.863 for next generation voice quality testing supporting NB (8000 sampling), WB (16000 sampling) and SWB (Super Wideband) (48000 sampling)
  • Evaluate audio quality with MOS, E-Model, SNR, jitter, clipping, signal level, noise level, and delay measurements
  • Supports latest PESQ ITU release including ITU-T P.862, 862.1 and 862.2 (supports PESQ, PESQ LQ, PESQ LQO, PESQ WB)
  • PESQ analysis results include PESQ, PESQ LQ, PESQ LQO, PESQ WB, PESQ Ie, and PESQ per Utterance

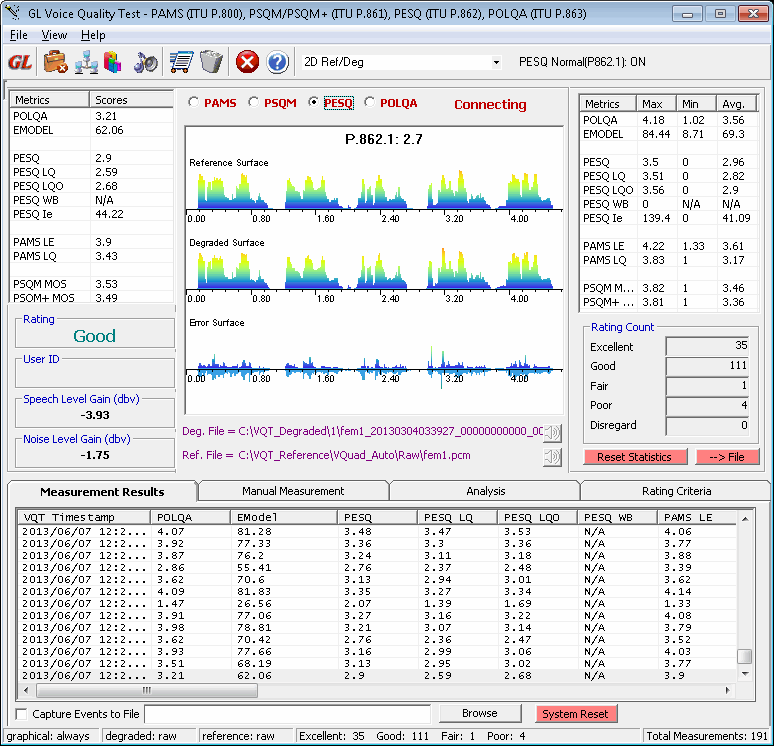

    PESQ Measurement Window


    POLQA Measurement window

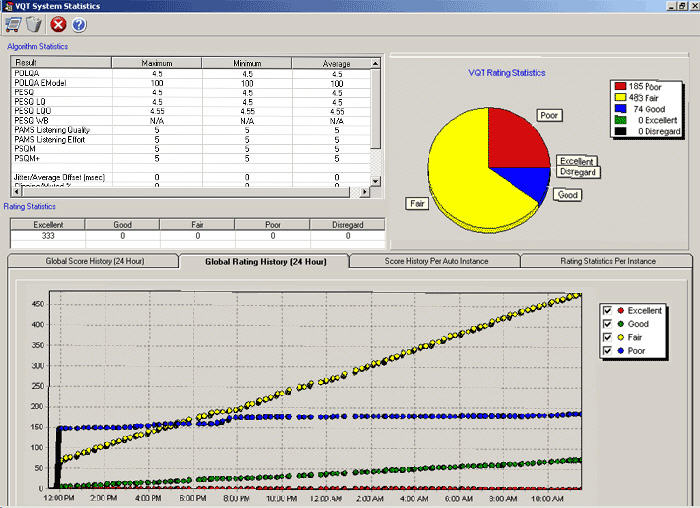

    VQT Cumulative Statistics

Automated Data Quality Testing

Append

Automated Video Quality Testing

Append

Drive Testing for Wireless Networks

Append

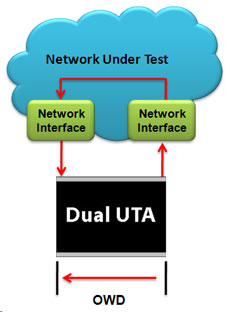

Delay Measurement

Append

Echo Measurement

Append

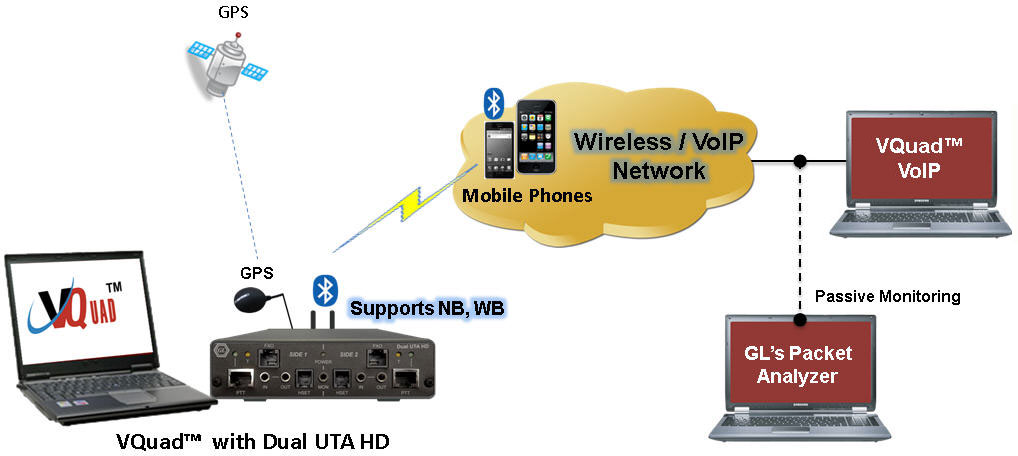

SIP Call Generator and Call Analyzer to Mobile Phone

This system connects at the digital level (Ethernet 10/100) and at the analog level. It can perform call generation and analysis of VoIP Calls and VQT measurements to/from the mobile.

Mobile Radio Testing

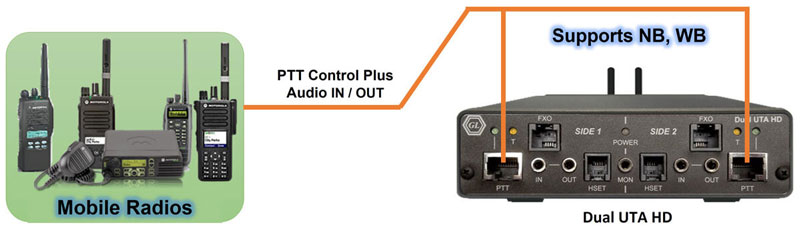

The Dual Universal Telephony Adapter (UTA) HD has the ability to interface to a mobile radio, thus allowing for voice quality testing. Control of the Push-to-Talk (PTT) feature is available with the Dual UTA HD and the VQuad™ software. Directly before the audio file is transmitted the VQuad™ software will command the Dual UTA HD to enable the PTT on the radio. This feature makes the testing completely automated and hands free.
