3G UMTS Wireless Network Simulation Test Suite

GL offers an MAPS™ Wireless Network Simulation Test Suite with all components such as Home NodeB, Home NodeB Gateway, and UMTS core network elements such as RNC, MSC, and HLR for CS traffic emulation (mobile voice call/SMS) and also core elements such as SGSN,  and GGSN to support packet traffic emulation. The simulation includes both User Plane and Control Plane; circuit-switched voice/sms and packet-switched data traffic simulation, resembling real user activity (like web-browsing).

One can setup a complete virtual real-time network simulating all the network elements, or any of the network elements in the above architecture can be replaced with user's DUT to perform single interface, multi-interface, or wrap-around testing. Complex scenarios such as handovers can be achieved easily.
Simulate multiple instances of nodes in network such as RNC, MSC, HLR, SGSN, and GGSN to perform functional and load/stress testing.

Verify your latest web services and mobile features over the network with various types of traffic generators and receivers.

In addition, with MAPS™ HD RTP appliance you can generate high call intensity (hundreds of calls/sec) and high volume Voice and SMS calls (thousands of simultaneous calls/platform). For stateful high density packet traffic (TCP/HTTP, UDP, and PCAP Replay) generation MAPS™ PacketLoad™appliance can be used to support massive simulation of UEs (up to 500000) with high density (up to 4 Gbps or 40 Gbps) mobile data traffic for both UMTS, and LTE networks.

CSV database system is used for massive UE simulation. The CSV file is divided into three sections: GSM, UMTS, and LTE identified by Subscriber Type variable. And “n” number of UE configurations can be saved within a single file which can be shared across 4G/3G/2G networks simulating inter-networking calls, roaming calls, VoLTE, data sessions, and bulk GTP traffic generation.
pdf GSM GPRS Wireless Lab
pdf UMTS Wireless Lab
pdf LTE Wireless Lab
pdf GL Product Lists



Wireless Networks (3G Lab Simulation)


Wireless Networks - 3G Lab Simulation
00:03:55

Features

Call Scenarios

Nodes

Interfaces

  • Mobile Originated Call (MOC)
    • Channel request
    • Authentication, ciphering, validation
    • Call setup request
    • Allocating dedicated voice channel over air interface
  • Mobile Terminated Call (MTC)
    • Paging
    • Identity & authentication, ciphering
    • Location update
    • Call setup request
    • Allocating dedicated voice channel over air interface
  • Location Update Call (LUC)

Traffic Types -

    • Voice/SMS calls using regular RTP core (low density)
    • High Volume Voice/SMS calls using MAPS™ HD RTP core (high density)
    • Supplementary IN Services
    • Internet connectivity (HTTP)
    • High density (up to 4 Gbps or 40 Gbps) mobile data traffic using MAPS™ PacketLoad™
    • All Industry Standard Codecs

NodeB, HNB, HNBGW, RNC, MSC, SGSN, GGSN

3G Interfaces

Circuit Switched – IuCS, IuH,
Packet-switched - Gc, Gr, Gf, Gd, IuPS, Gn Gp, Gi

MAP Interfaces – B, C, D, E, F, H

Inter-network Interfaces – BICC, CAP, INAP

Location Services - Lg, Lh


What you need for setting up 3G Lab?

3G lab system requires the following equipment, and emulation tools:

For more information, visit webpage:
3G UMTS Communications Network Lab

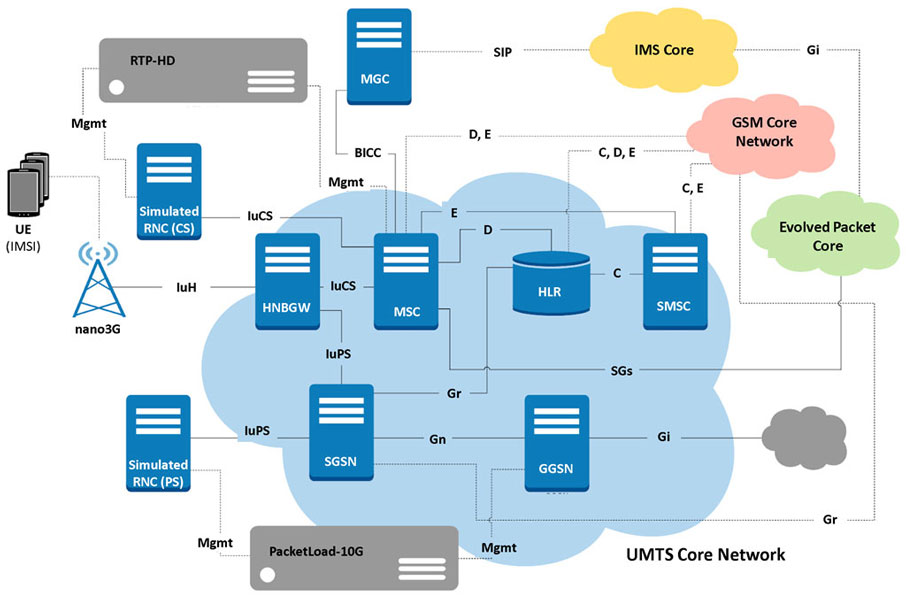

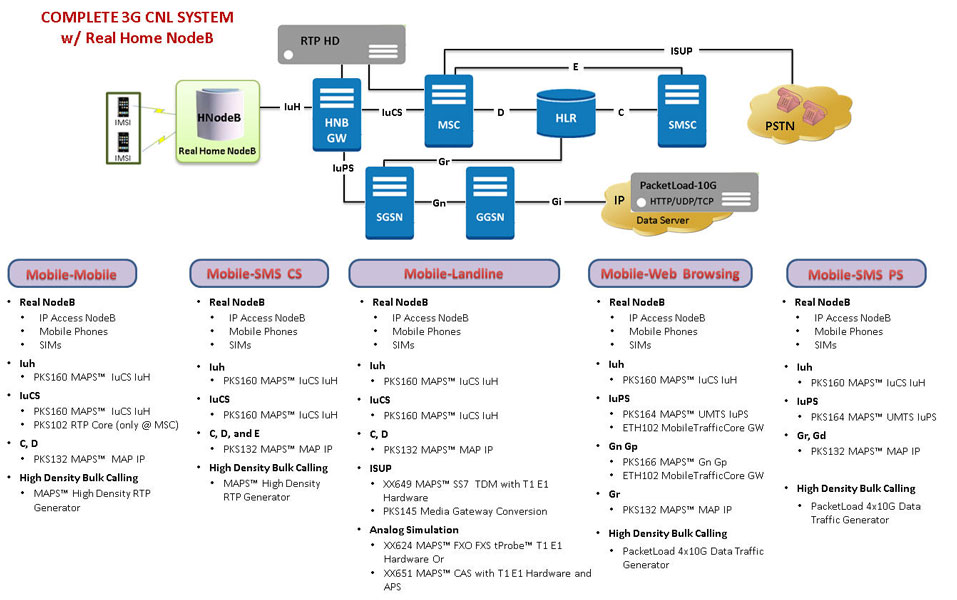

Complete 3G CNL with Real Home NodeB

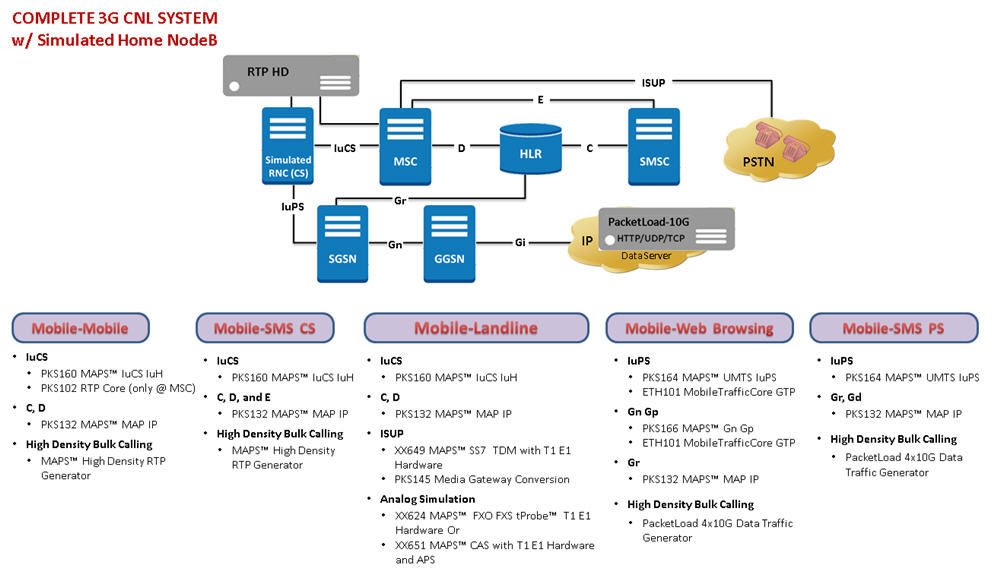

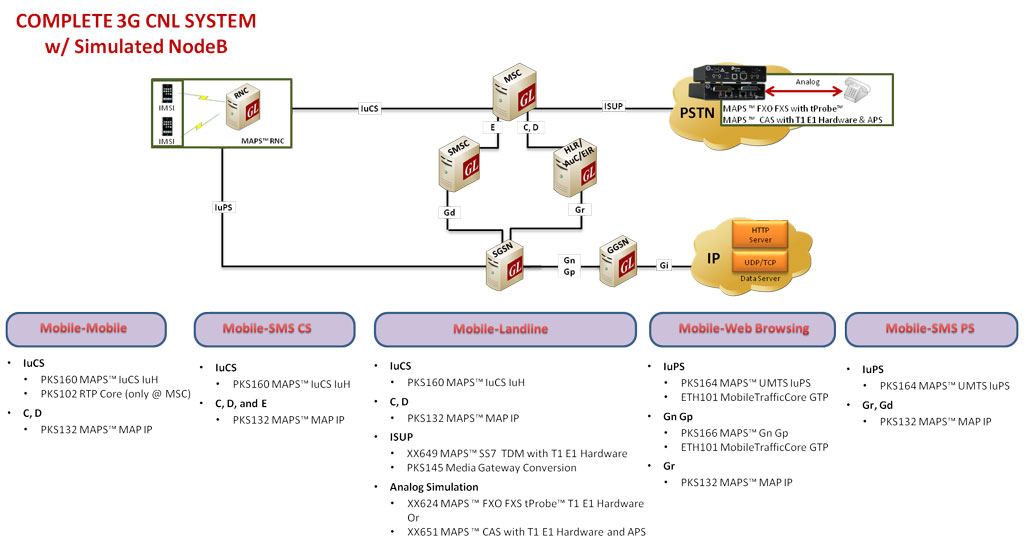

Complete 2G CNL with Simulated Home NodeB

Procedures

3G Users - Mobile-to-Mobile Voice Call Procedures (MOC, MTC)
3G Users - Mobile-to-Mobile SMS Call Procedures (MOC, MTC)

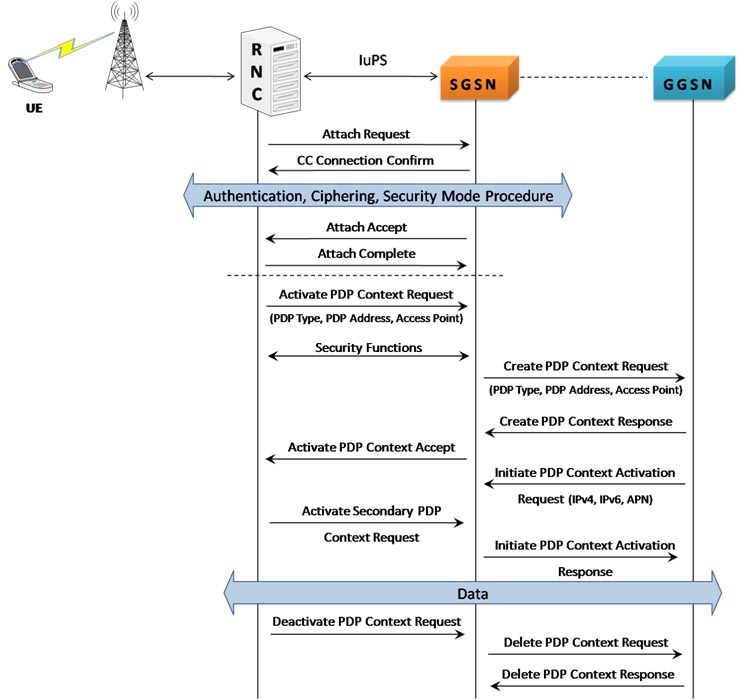

3G Users Web Browsing Session
