MAPS™ MAP Emulator
(Mobile Application Part Emulation over IP/TDM)

MAPS™ MAP over IP Protocol Emulator Software Ver 8.3.9 (64-bit Only) | Download Now!


Mobile Application Part (MAP) is an application layer protocol used by various elements in GSM, UMTS, and GPRS mobile core networks to provide services to mobile phone users.

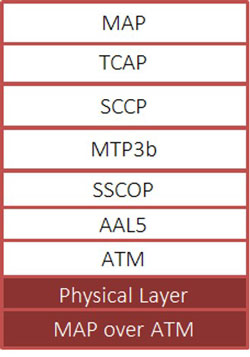

MAP can be transported using 'traditional' SS7 protocols in TDM (T1 and E1) or over IP using SIGTRAN.

SIGTRAN is a stack of networking protocols having Stream Control Transport Protocol (SCTP) for stream management over IP, and a bunch of user adaptation (UA) layers over it. Supported adaptation layers are M2PA (MTP2 Peer-to-Peer), M3UA (MTP 3 User), and M2UA (MTP2 User).

As illustrated in the diagram above, some of the GSM/UMTS circuit switched interfaces such as C (between HLR & MSC), D (between HLR and VLR), E (between GMSC and MSC), F (between MSC and EIR), H (between HLR and AuC) and Packet-switched interfaces such as Gc (between GGSN and HLR), Gr (between SGSN and HLR), Gf (SGSN and EIR), Gd (between SGSN & SMS-GMSC) use Mobile Application Part (MAP) protocol.

MAP over IP network also includes LCS (LoCation Services) specific elements and entities, their functionalities, interfaces, as well as communication messages, necessary to implement the positioning functionality in a cellular network. LoCation Services (LCS) architecture follows a client/server model with the gateway mobile location centre (GMLC) acting as the server providing information to External LCS Clients.

The "radio" and "core" network partition is shown above for GSM and UMTS networks. Elements and interfaces that comprise the core network are briefly described below.
Common services provided by MAP are “Location Services”, "Location Tracking", "Roaming", "Subscription Information", "Short Message Service", and many more.

Interface Elements Purpose TDM




Generally an internal interface within the MSC. Used whenever the MSC needs access to data regarding a MS located in its area.



MSC server interrogates the HLR for routing information of a subscriber for a call or SMS directed to that subscriber



Used to exchange data related to the current location of a mobile station and to the management of that  subscriber



Exchange of handover data between two adjacent MSCs for the purpose of seamless call and message flow



Used by the EIR to verify the status of the IMEI retrieved from the Mobile Station



Used to update a new VLR with IMSI and authentication info from old VLR, when a mobile subscriber moves from one VLR area to another (not shown in the diagram)



HLR requests for authentication and ciphering data from the AuC for a Mobile Subscriber.



Used by the GGSN to retrieve information about the location and supported services for a mobile subscriber for packet data services (GPRS, etc.)



Used to exchange data related to the current location and management of a Mobile Subscriber (MS) and Mobile Equipment (ME)



Used by the EIR to verify the status of the IMEI retrieved from the Mobile Station.



Used to transfer SMS over GPRS.



Used in LoCation Services between MSC and GMLC to provide subscriber location and related report




Used in LoCation Services between the GMLC and the HLR to retrieve the routing information needed for routing a location service request to the servicing VMSC, SGSN, MME or 3GPP AAA server



GL's MAPS™ (Message Automation & Protocol Simulation) product line bearing the same acronym, is used to emulate all the MAP interfaces listed above – both TDM and IP.

MAPS™ is an advanced and versatile protocol simulator/tester that can simulate a variety of protocols encountered in the telecom space, including SIP, MGCP, UMTS, GSM, MLPPP, MEGACO, ISDN, CAS, SS7, and many more. MAPS™ MAP supports emulation of all the GSM and UMTS MAP interfaces. MAPS™ MAP currently supports various procedures emulating MSC (VLR), HLR, EIR, and SMSC entities and H, C, D, E, F interfaces in the network. Supported procedures include Location Update, Retrieve Roaming Number, Remote User Status, Check IMEI Service, and others. The product also supports send/receive SMS (Short Message Service) simultaneously using signaling channel with the voice/data/fax service over GSM network.

MAPS™ MAP is enhanced to simulate LoCation Services (LCS) over Lg and Lh interfaces connecting GMLC <-> MSC and GMLC <-> HLR entities. Supported LCS procedures includes Provide Subscriber Location, Subscriber Location Report, and Routing Info for LCS respectively, as per 3GPP TS 23.271 specifications.

In addition to supporting MAP network elements connected by the interfaces listed, it also supports error tracking, regression testing, conformance testing, load testing, and call generation. It can run pre-defined test scenarios against test objects in a controlled & deterministic manner.
MAPS™ MAP Emulator supports powerful utilities like Message Editor, Script Editor, and Profile Editor which allow new scenarios to be created or existing scenarios to be modified using MTP3 layer (over TDM) and M3UA, M2PA layers (over IP) messages and parameters.

MAPS™ supports Command Line Interface (CLI) and when configured as server-side application enables remote controlling of the application through multiple command-line based clients including TCL, Python, VBScript, Java, and .Net, using MAPS™ client-server architecture (requires additional license).

GL also provides various set of protocol analyzers for on-line capture and decode of the signaling in real-time both during tests and as a stand-alone tracer for live systems. Please visit Protocol Analysis page for more details.

Testing Features

  • MAP protocol simulation over TDM (E1/T1)
  • Emulator can be configured as MSC (VLR), HLR, GMSC, EIR, SMSC, SGSN, and GGSN entities and emulate C, D, E, F interfaces in the GSM network and Gc, Gd, Gf, and Gr in the UMTS network.
  • User-friendly GUI for configuring the MAP signaling links
  • Access to all MTP3, SCCP, and MAP R4 protocol fields such as TMSI, IMSI, MCC, MNC, MSIN, CCBS and more
  • Ready scripts for GPRS Update procedure, Mobile Originating (MO) SMS, Mobile Terminating (MT) SMS, Location Update, Authentication, Retrieval of Routing Information Procedure, Check IMEI Status (Equipment Identification), and Unstructured Supplementary Service Data (USSD) procedures.
  • Logging of all messages in real-time
  • Supports customization of placing and answering calls using Profile editor and Message editor
  • Ready-to-use scripts for quick testing
  • Provides protocol trace with full message decoding of the GSM messages
  • Provides call reports with associated captured events and error events during call simulation
  • Option to send reports to database accessible via web interface
  • MAP is enhanced to simulate LoCation Services (LCS) over Lg and Lh interfaces

Supported Protocols Standards

Supported Protocols Standard / Specification Used
MAPR4 3GPP TS 29.002 V4.18.0 (2007-09)
TCAP ANSI T1.114-1996
SCCP Q.713, CCITT (ITU-T) Blue Book
MTP3 Q.703, ITU-T Blue Book

Supported Protocols Standard / Specification Used
MAP Phase 1: Recommendation GSM 09.02
Phase 2: ETS 300 599: December 2000 (GSM 09.02 version 4.19.1)
Release 14: 3GPP TS 29.002 V14.0.0 (2016-06)
TCAP ITU-T Q.771 - Q.775
SCCP Q.713, CCITT (ITU-T) Blue Book
MTP3 ITU-T Q.704
M2PA RFC 4165
M3UA RFC 3332
SCTP RFC 2960, RFC 4960

MAP C, D Interface

Shown below are the typical MAP procedure over IP and TDM interfaces:

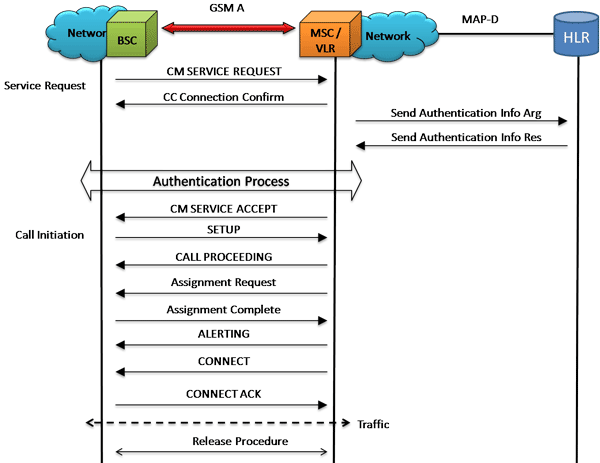

MAP/D Mobile Originating
Call Flow

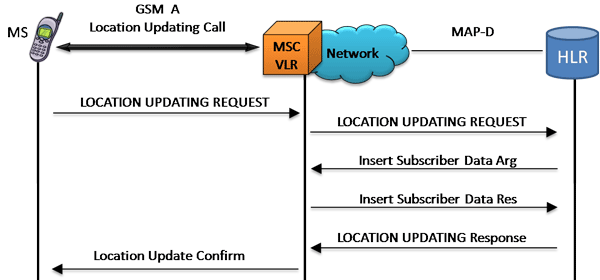

MAP/D Location Update
Call Flow

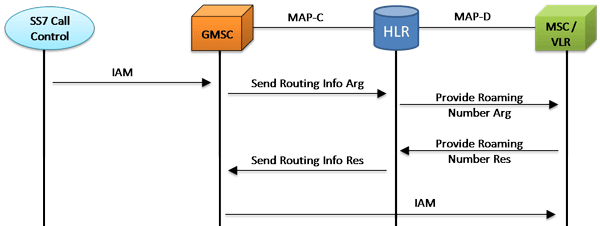

MAP/C, MAP/D Retrieval Routing Information Call Flow
  Remote User Status

Call Generation and Reception

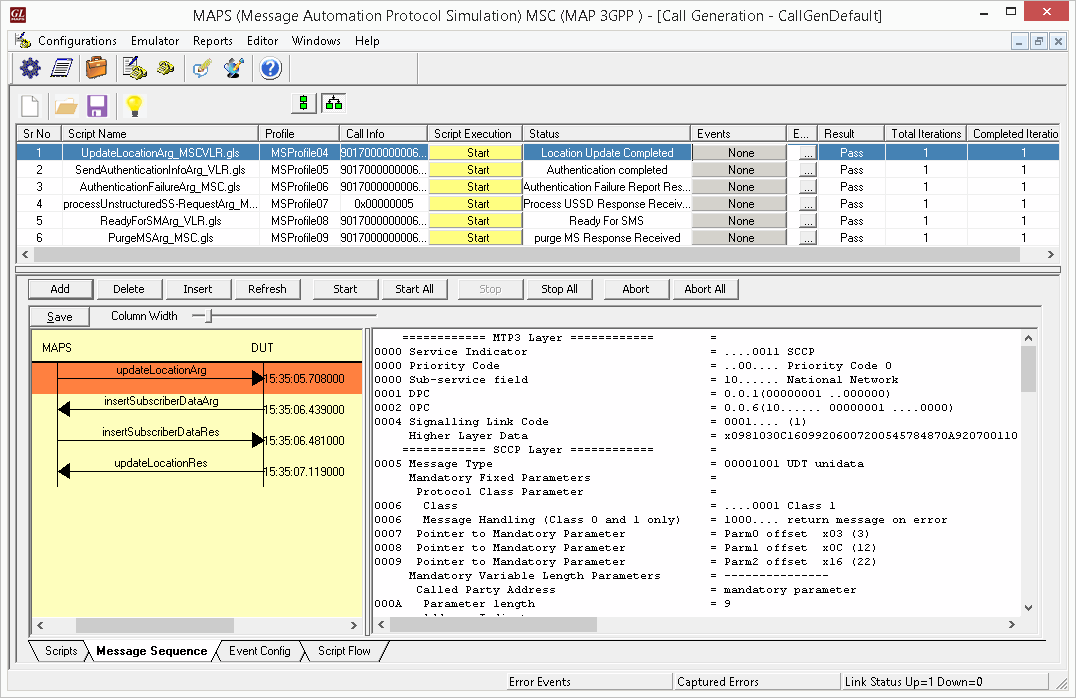

MAPS™ is configured as MSC/VLR which initiates the LocationUpdate procedure by sending the updateLocationArg message to HLR. MAP_UPDATE_LOCATION service is used by the VLR to update the location information stored in the HLR. This is performed using the UpdateLocationArg_MSCVLR.gls script.

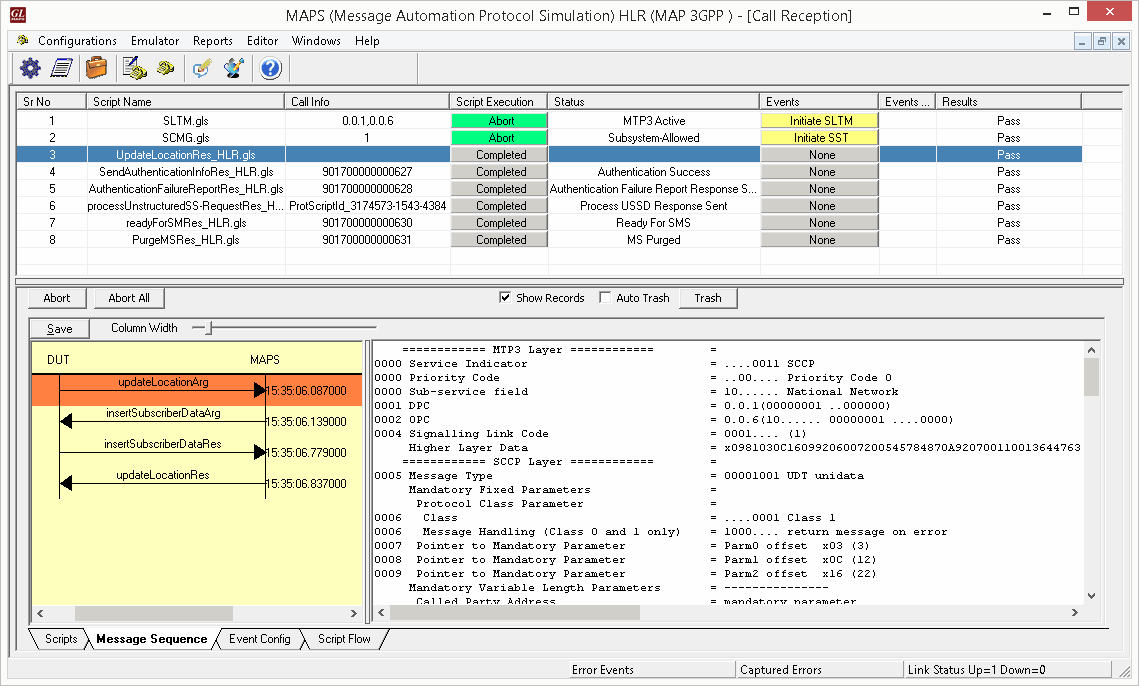

MAPS™ can also be configured as HLR which receives the request message from MSC and simulates complete LocationUpdate procedure.

MAP Call Generation at MSC/VLR Node MAP Call Reception at HLR Node


MAP E Interface

Shown below are the typical MAP E interface procedures between MSC and SMSC over IP and TDM interfaces:

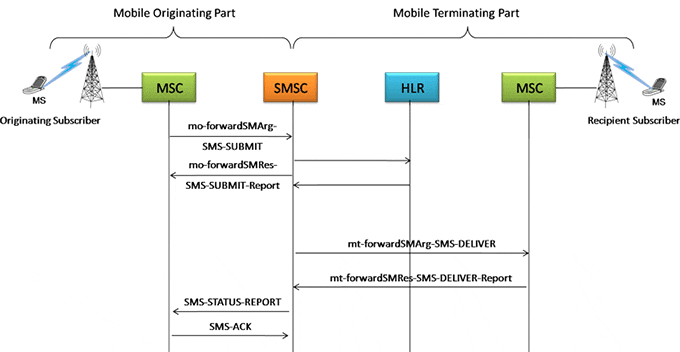

Mobile Terminating (MT) and
Mobile Originating (MO) SMS Procedures

Call Generation and Reception

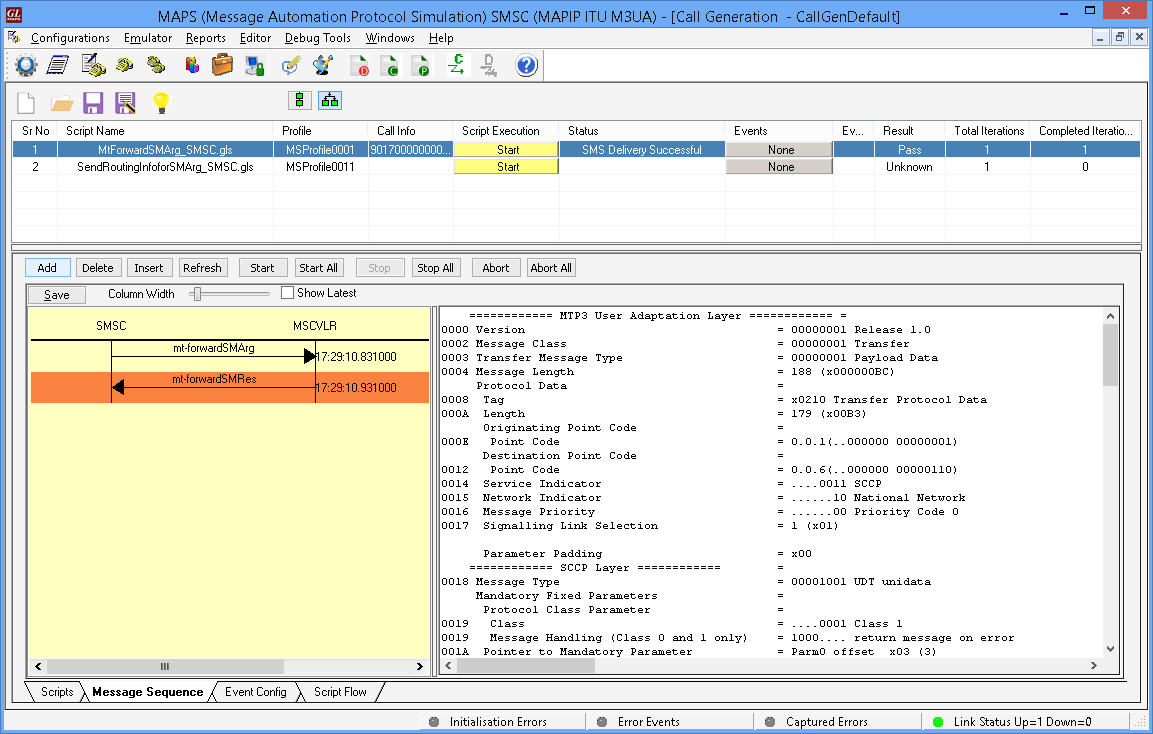

MAPS™ is configured as SMSC which initiates the Mobile Terminating SM procedure by sending the mtforwardSMArg message to MSC.
This service is used to forward mobile terminated short messages between SMSC<--->MSC.

This is performed using the MtForwardSMArg_SMSC.gls script. This Script Initiates Mt Forward SMS Message and waits for Mt forward SMS Response.

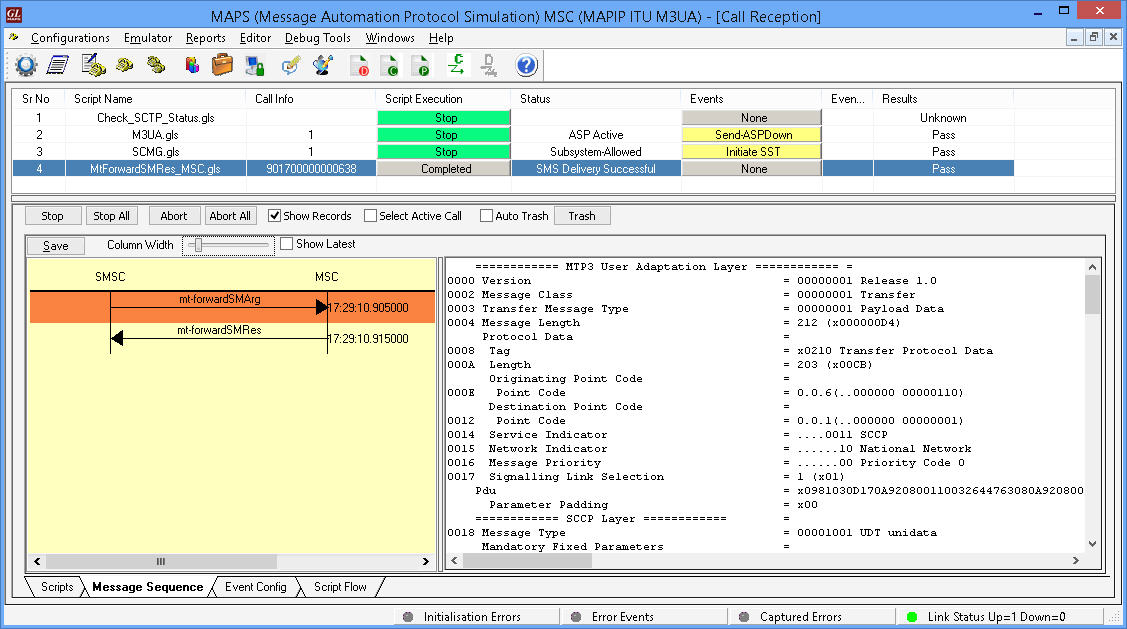

MAPS™ can also be configured as MSC which receives the request message from SMSC and simulates complete Mobile Terminating SM procedure.

MAP F Interface

Shown below are the typical MAP F interface procedures between MSC and EIR over IP and TDM interfaces:

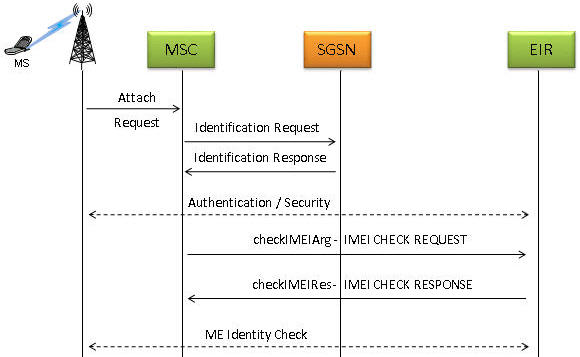

Check IMEI Status Procedure

Call Generation and Reception

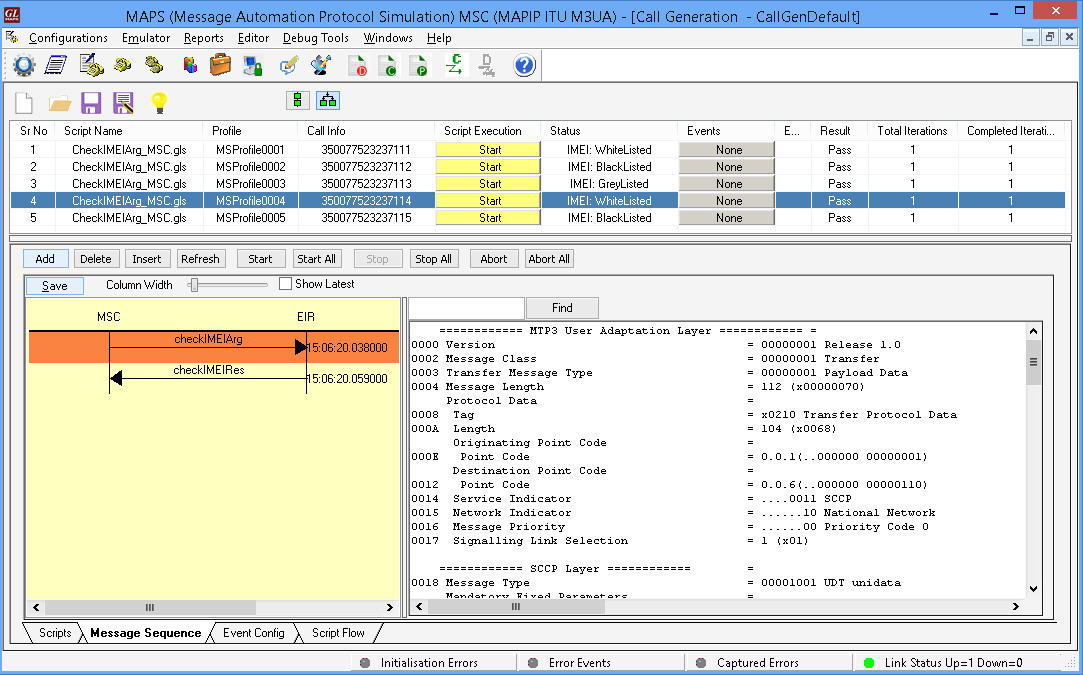

MAPS™ is configured as MSC which initiates the MAP_CHECK_IMEI service by sending the checkIMEIArg message to EIR.

This service is used between MSC and the EIR to get the IMEI status of the Subscriber. If the IMEI is not available in the MSC or in the SGSN, it is requested from the MS and transferred to the EIR in the service request.

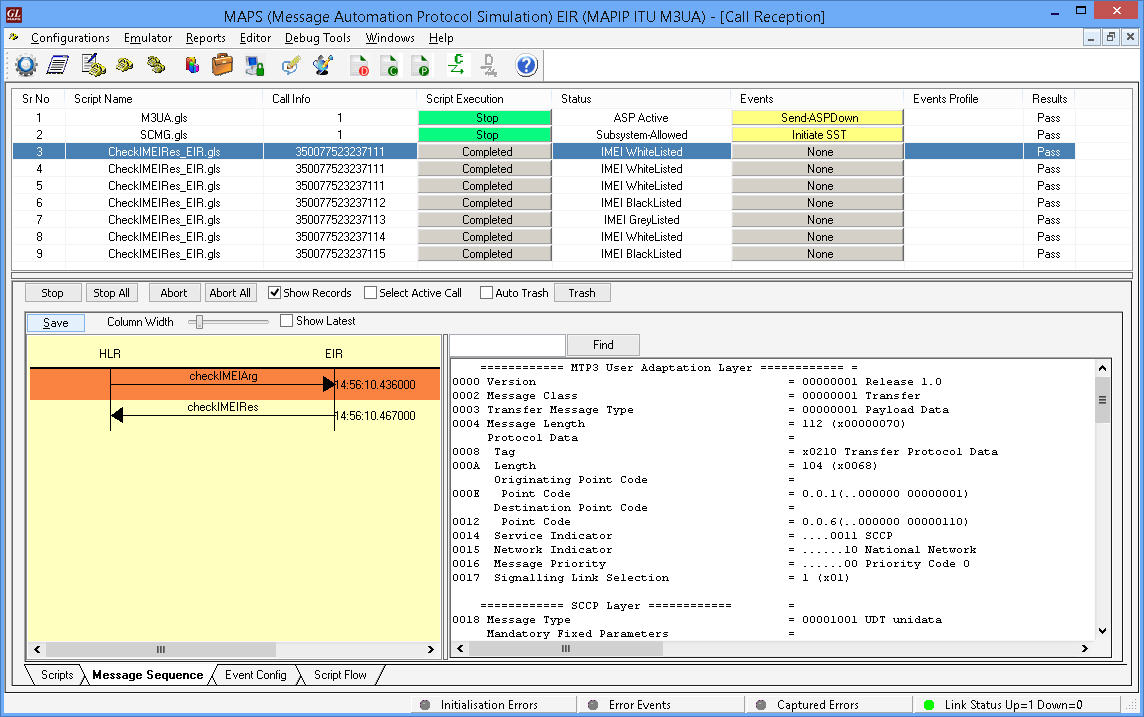

MAPS™ can also be configured as EIR which receives the request message from MSC and simulates complete MAP_CHECK_IMEI procedure.


MAP Gr Interface

Shown below are the typical MAP Gr interface procedures between SGSN and HLR over IP and TDM interfaces:

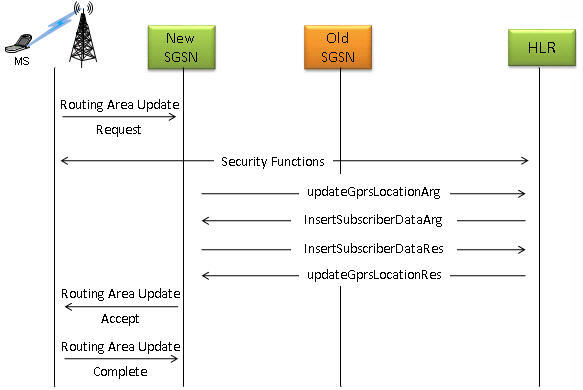

GPRS Location Update Procedure

Call Generation and Reception

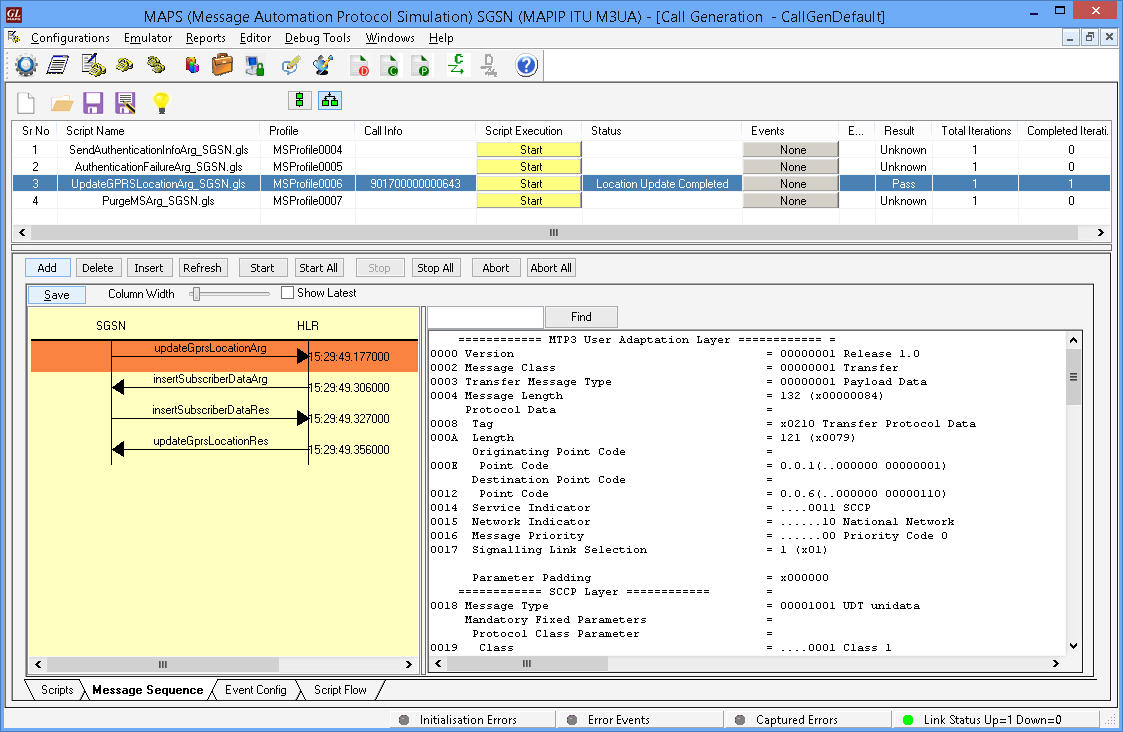

MAPS™ is configured as SGSN which initiates the MAP-UPDATE-GPRS-LOCATION service by sending the updateGprslocationArg message to HLR.

This location updating procedure is used to update the location information stored in the HLR. This service is invoked towards the HLR whose identity is contained in the SGSN. This is performed using the UpdateGPRSLocationArg_SGSN.gls script

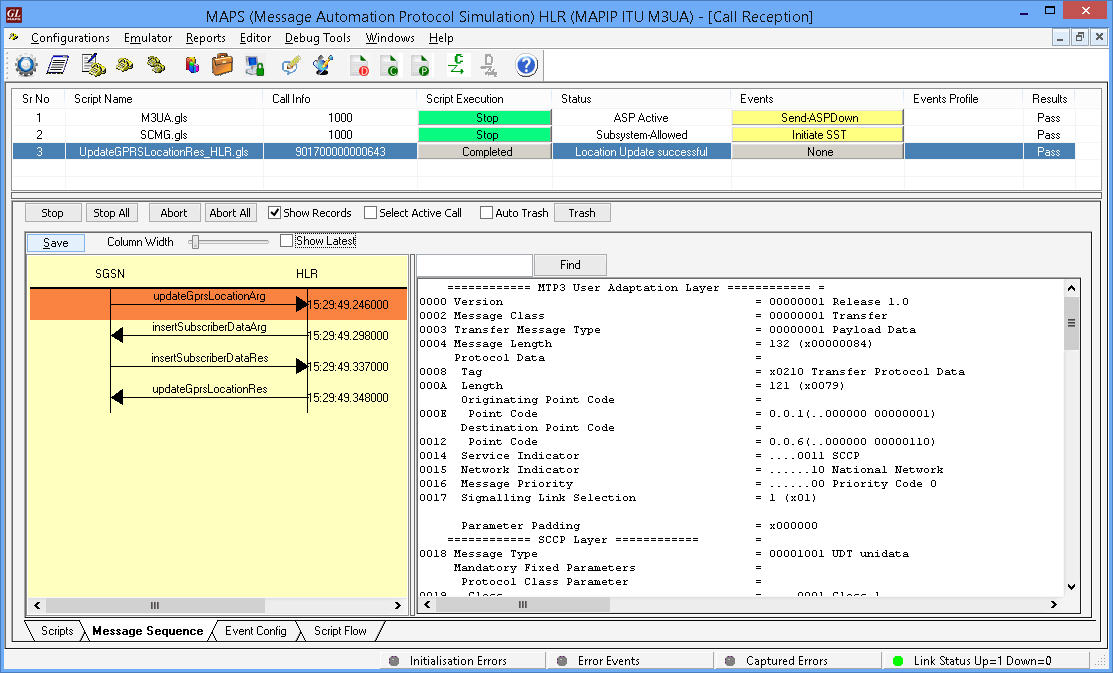

MAPS™ can also be configured as HLR which receives the request message from SGSN and simulates complete MAP-UPDATE-GPRS-LOCATION procedure.


LCS Lg, Lh Interfaces

LoCation Service (LCS) Architecture

MAPS™ MAP supports both server and client simulation for the Mobile Application Part (MAP) Lg, and Lh interfaces. MAPS™ can be configured as GMLC testing SGSN/MSC in UMTS network and vice-versa.

Location based services, such as Emergency Services, rely upon LoCation Service (LCS). The Lg and Lh interfaces enable LCS in the GPRS/UMTS to provide support for specialized mobile location services for operators, subscribers, and third party service providers.

MS initiated Location Report Procedure is supported over Lg Interface between GMLC and MSC and Network Initiated Location Retrieval Procedure over Lh Interface between GMLC and HLR.

The Lg interface implements the following Mobile Application Services:

  • MAP-Provide-Subscriber-Location - used by a GMLC to request the location and optionally, velocity, of a target UE;
  • MAP-Subscriber-Location-Report – used by a SGSN/MSC to provide the location of a target UE to a GMLC.

Lg Interface-LCS Procedure

The Lh interface implements the following Mobile Application Services:

  • MAP-SEND-ROUTING-INFO-FOR-LCS, used by GMLC to retrieve the routing information from HLR, required to route a location service request to the serving VMSC, SGSN, MME or 3GPP AAA server.

    Network Initiated Location Retrieval Procedure
Lg Interface

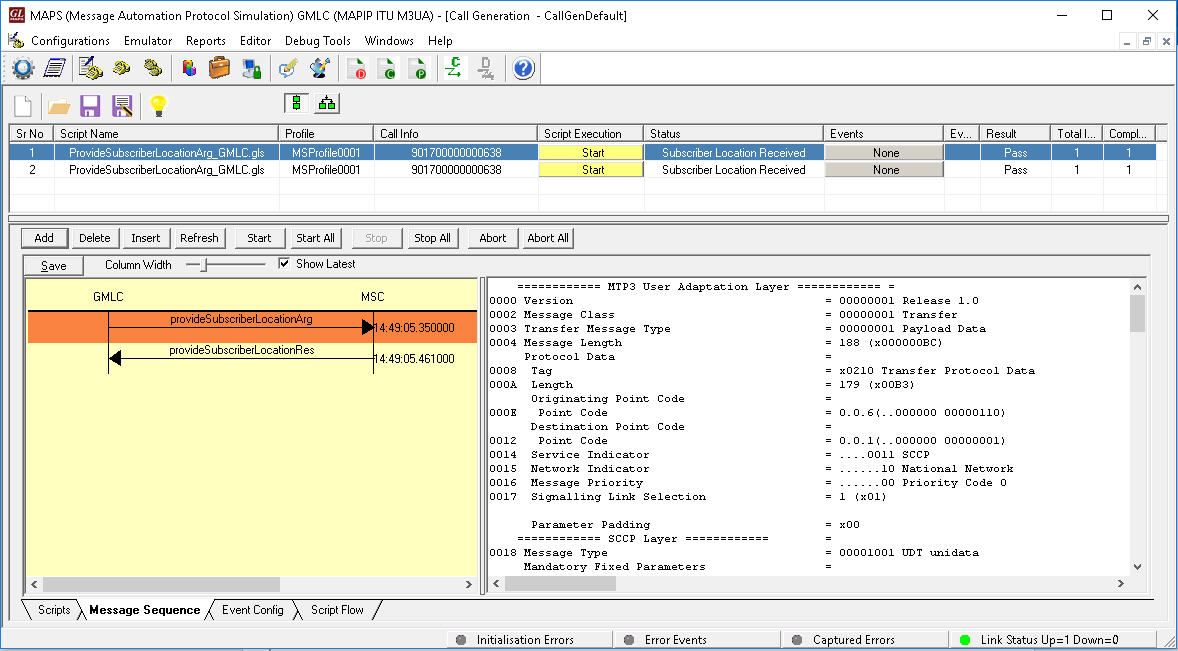

MAPS™ MAP IP configured as GMLC initiates the PROVIDE-SUBSCRIBER-LOCATION Service by sending provideSubscriberLocationArg message requesting for the location of a target MS from the visited MSC or SGSN at any time.
Lh Interface
MAPS™ MAP IP configured as HLR receiving SEND-ROUTING-INFO-FOR-LCS Service request message from GMLC to retrieve the routing information needed for routing a location service request to the servicing VMSC, SGSN, MME or 3GPP AAA server.

MAPS™ MAP IP (GMLC) Simulating Lg Interface Procedure MAPS™ MAP IP (HLR) Simulating Lh Interface Procedure

General MAPS™ Features

Call Simulation and Control

The signaling and traffic simulation in a call is completely implemented using scripts. Commands in the scripts are executed in controlled way to simulate protocol and traffic behavior. Most of the commands used in the scripts are generic and independent of specific protocol.

MAPS™ application acts as either the Caller or resides at the network terminal acting as Callee. The Call Generation feature simulates an outgoing call by sending call control messages to the DUT using scripts and profiles. The profiles allow necessary parameters of call control messages to be changed during runtime. Call generated from other entity can be automatically detected in call reception window by pre-setting the required answer scripts in the Incoming Call Handler.

The call control scripts can also automatically handle the traffic over the established call. MAPS™ supports transmission and detection of various traffic types over  IP (RTP, GTP), ATM, & TDM - such as, digits, voice file, single tone, dual tones, fax, sms, email, http, ftp, and video. MAPS™ also includes support for wide range of codec rates – visit and webpage for more details.

Message Sequence - Each call scenario provides the trace with full decoding of the messages exchanged between the MAPS™ and the DUT, and graphical ladder diagrams of the call flow with time stamp. Impairments can be applied to messages to simulate error conditions that occur in real-time networks.

Event-Driven Control - Scripts execution, being event-based, allows redirection of script execution on-the-go with user-defined events. The custom parameters in the events can also be changed during script execution using event profiles.

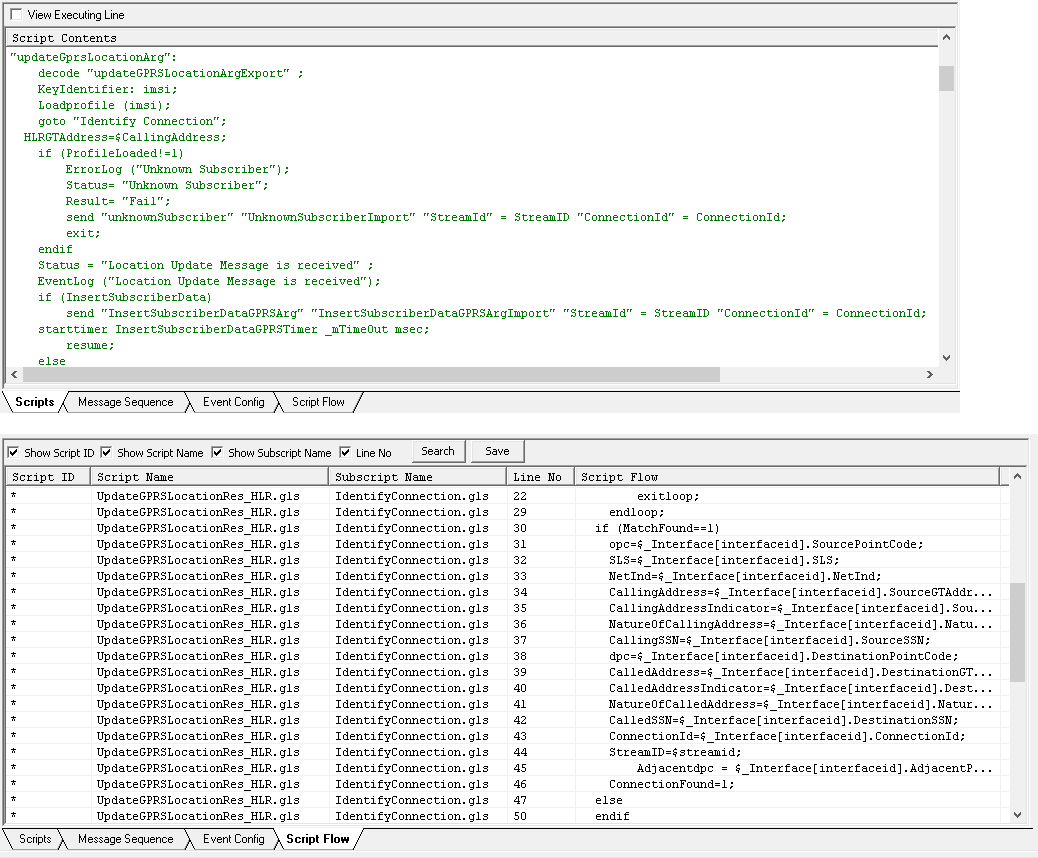

Script Contents & Script Flow - The script flow and the contents window displays the Script Name, Sub-script Name, Script line number, and script statements to be successfully executed, which help the users in troubleshooting a particular call scenario.

Bulk Call Simulation and Load Testing

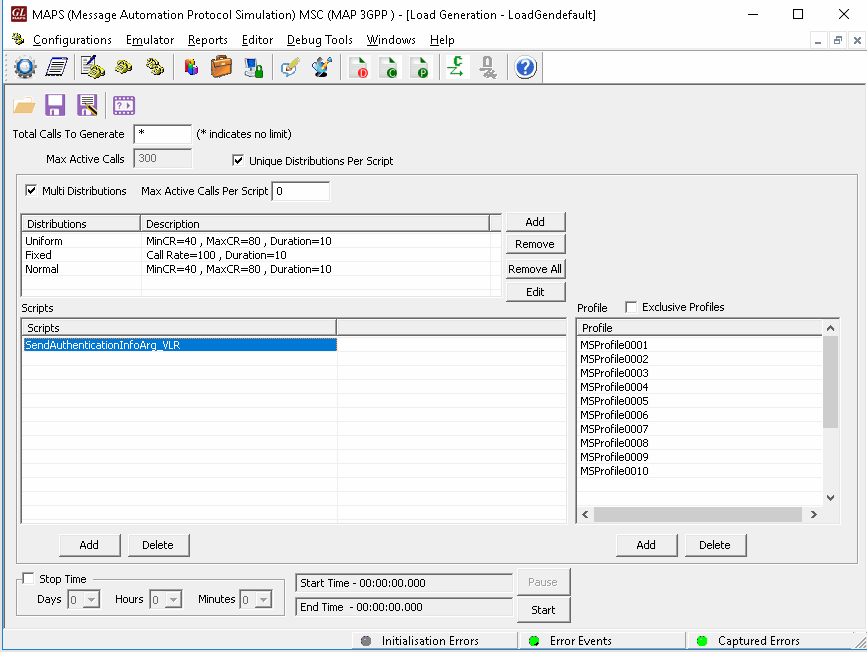

MAPS™ supports automated stress/load testing capabilities through Load Generation and Bulk Call Simulation features. Bulk Call Simulation allows quick configurations to easily create multiple test entries with different scripts and profiles. Multiple tests can be run simultaneously or sequentially (queue up tasks in succession). Load generation feature further allows specifying the patterns with which the bulk calls can be generated. Load generation can be customized with different statistical distribution patterns such as Uniform, Ramp, Sawtooth, Fixed, Normal, Step, and Step-Sawtooth distribution. Call duration also can be randomized using similar statistical distribution. This feature also helps users configure Stress/Load Testing parameters such as Call per second (CPS), Max Active Call, Minimum and Maximum Call Rates, Start Call Rates, and other parameters.


Scheduler can be used to schedule the simulation of bulk calls or manual calls at a specific start time. The pre-saved master configuration files for test setup and call simulation are automatically loaded to automate the test procedure.

Customization of Test Setup Parameters

The test setup profiles (.xml files) allow users to configure the necessary parameters in order to establish communication between MAPS™ and the DUT. It includes configuring parameters of the network nodes, the network properties, and transport related configurations such as T1/E1 timeslots, IP Address and port numbers for both MAPS™ and the DUT.

Once the transport layer is configured properly, protocol specific signaling messages and traffic can be transmitted and received successfully. All parameters setup in test setup are global and are accessible to all scripts. These parameters initialize protocol engines and the transport modules specific to the protocol.

Customization of Test Parameters, Call Flow, and Protocol Messages Using Pre-Processing Tools

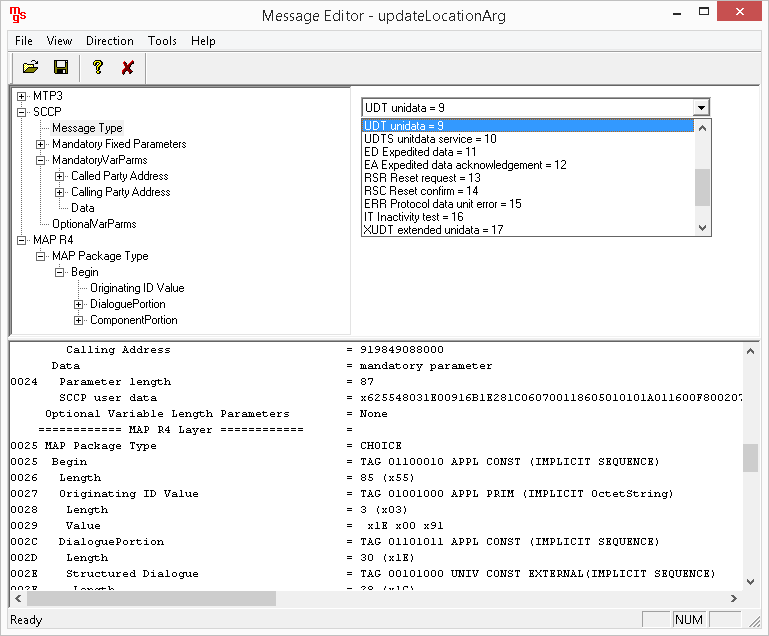

  • Message Editor - The Message Templates (GL’s proprietary *.HDL files) comprises of protocol encoding parameters with preset values. It is required to create a message template for every message in a protocol. The message templates are called within the scripts to perform scenario based testing.
  • Profile Editor – Profiles (*.xml files) are used to change the values of the fields in the messages (i.e. Message Template in MAPS™) during the course of a call. The multiple profiles with varying parameter values that allow users to configure call instances in call generation and to receive calls.

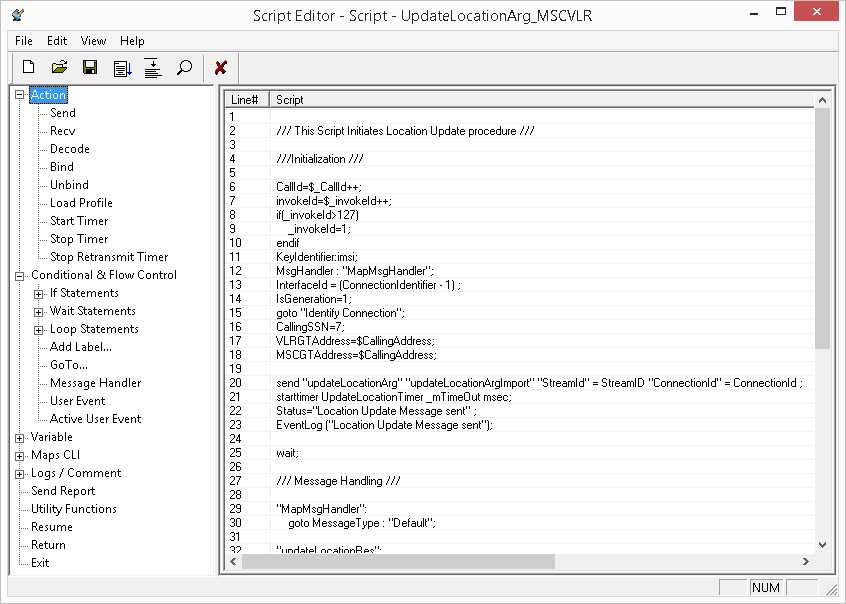

  • Script Editor - The script editor allows the user to create / edit scripts and to define variables for the fields in the messages. The script uses pre-defined message templates to build call flow and perform send and receive actions. Script editor provides options to run the test for multiple iterations in sequential or random flow. Commands allow retransmission of messages with specific interval.

Command Line Interface

Supports scripting through a Command Line Interface (CLI) such as the Python, and TCL, using MAPS™ client-server functionality (requires additional license)

MAPS™ can be configured as server-side application, to enable remote controlling of the application through multiple command-line based clients. Supported clients include C++, TCL, Python and others. TCL provides a simple scripting language, with programming facilities such as looping, procedures, and variables. The TCL Client application includes a MapsTclIfc.dll file, a packaged library that enables communication with the Server from a TCL environment.

User can remotely perform all functions such as start test bed setup, load scripts and profiles, apply user events such as send digits/file/tones, detect digits/file/tones, dial, originate call, terminate call, start and stop traffic and so on. User can also generate and receive calls through commands. This client application is distributed along with MAPS™ Server application. Multiple MAPS™ CLI servers can be controlled remotely from single client application (such as TCL, Python, etc).

Call Statistics, Events, Link Status

Call Status & Message Statistics - By default, all call handling scripts (irrespective of the type of the functions) are assessed by MAPS™ to provide statistical information about Total Calls, Active Calls, Completed Calls, Passed Calls, Failed Calls, and Calls/Sec. It is also possible to categorize the statistical information as per the call handling scripts. In addition, Call Generation and Call Reception windows provide useful call status & script execution results.

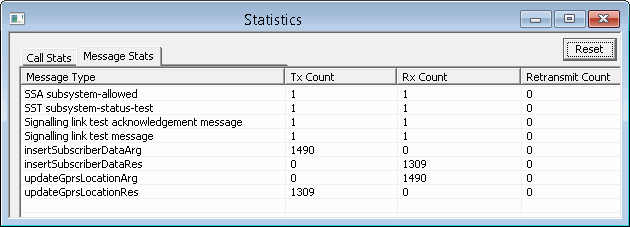

In addition, Message Stats option for any specific protocol, logs number of times the messages are being transmitted (Tx Count) and received (Rx Count), thus allowing user to monitor the occurring events.

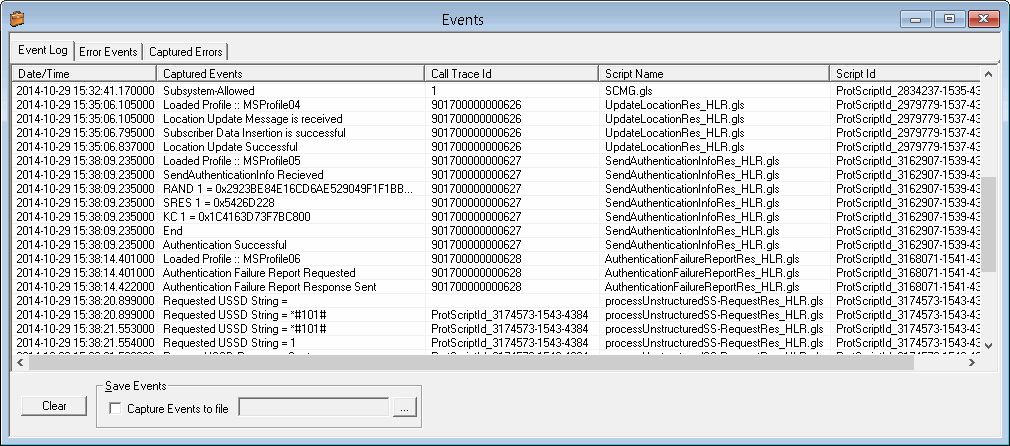

Events Reporting – MAPS™ provides Event Log, Error Events, and Captured Errors windows that log the captured events and errors encountered during the progress of the call.

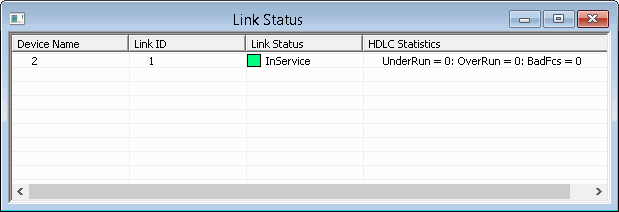

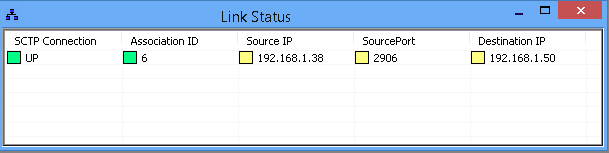

Link Status - Link Status window indicates transport related information of the protocol, for example, if SCTP is used as transport, it indicates if the association is Up or Down in the Link Status window. MAPS™ IuCS ATM uses SSCOP transport and the associated link status is indicated as Up or Down in the Link Status window.

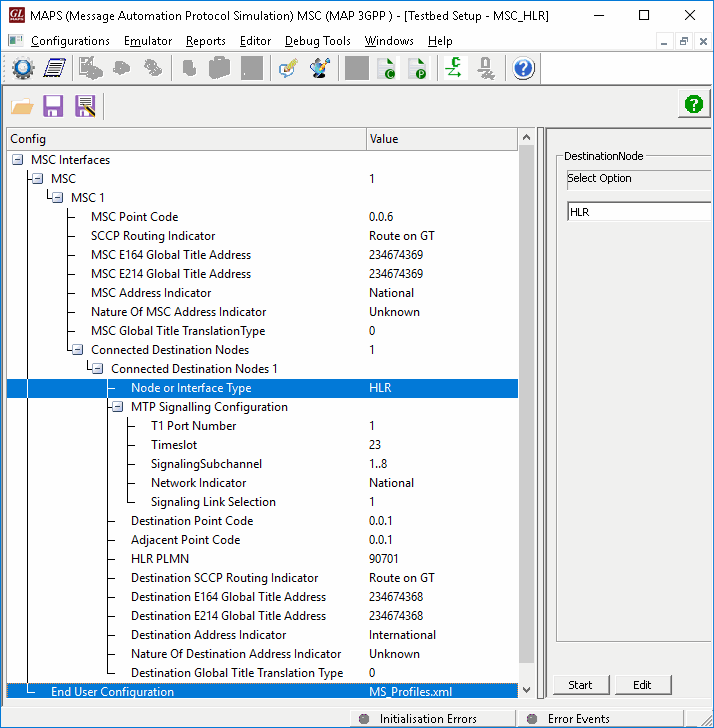

Screen Shot of MAPIP Testbed Setup Configuration Screen Shot of MAP Testbed Setup Configuration Screenshot of Load Generation Parameters Screenshot of Script Editor

Screenshot of Profile Editor Screenshot of Message Editor Screenshot of Script Contents and Script Flow Screenshot of Call Statistics
Screenshot of Message Statistics Screenshot of Event Log Screenshot of SCTP Link Status Screenshot of MTP Link Status
