2-Wire Voice/Data Capture using
Dual UTA HD/ tProbe™

Voice Recorder Software Ver 2.2.1  | Download Now!


2-Wire FXO/FXS over TDM Network
Product Brochure
GL Product Lists


GL provides two different solutions to capture signals on 2 Wire analog lines (FXO ports):

  • Using Voice Recorder with Dual UTA HD
  • Using tProbe™ FXO port

Voice Recorder with Dual UTA HD

GL's Voice Recorder Software is used with  Dual UTA HD hardware to non-intrusively capture the voice, fax, or modem traffic over a 2-wire analog interface.

The Dual UTA HD is a comprehensive hardware device designed to interface two completely separate networks to test the voice quality. The Dual UTA HD can be directed to automatically send and record sample voice files between nodes of a telephony network, which can then be submitted to software application for analysis.

tProbe™ FXO FXS Analyzer/Emulator

GL's tProbe™ is an enhanced USB based T1 E1 VF FXO FXS Datacom Analyzer / Emulator. This hardware incorporates all the features of the previous analyzer such as portability, USB interface, remote accessibility, scripting, and a vast collection of optional applications.

The tProbe™ FXO FXS  ports permits non-intrusive capture and analysis of voiceband signal from a two-wire telephone line. This feature allows you to capture and analyze data from a two-wire telephone line, as well as to generate and transmit analog data onto that two-wire line. FXO FXS testing can also be performed using MAPS™ FXO FXS Emulator application. MAPS™ provides a facility to place call/answer incoming call on both FXO and FXS ports, and automate the entire testing process using scripts.

Main Features

  • A USB plug 'n' play recorder that does not tie up the sound card on the PC
  • Enables recording of the following transmissions:
    • Data (Modem)
    • Fax
    • Mobile Fax
    • T.38 Fax
    • Passive Voice
    • X, Y, Z Modem and others
  • Supports 2 independent FXO ports per Dual UTA HD connecting to any PSTN, ATA, and next generation Gateways
  • Wide Band (WB) and Narrow Band (NB) support (for HD and SD Audio) voice capture on 2-wire Analog interface
  • Non-intrusive, bi-directional traffic capture into a single PCM file
  • Dual UTA HD supports WB 2-wire Analog FXO & VF interfaces for the capture
  • Auto Trigger Threshold (-dbm) record option
  • Supports all types of measurements associated with a 2-wire analog call
  • Perform Post Dial Delay (PDD) & Post Ringback Delay (PRD) measurements (within VQuad™)
  • Use with GL Insight™ for modem / fax data capture and analysis
  • Use with Voice-band Analyzer (VBA) application to perform voice band analysis

2-Wire Voice/Data Capture using Voice Recorder and Dual UTA HD:

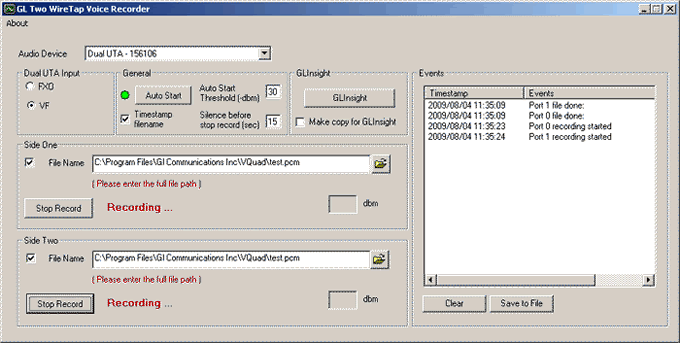

Voice Recorder software allows to non-intrusively capture the signals on FXO or VF ports on DUAL UTA HD connected to 2-wire lines.

The Dual UTA HD unit includes dual 2-wire FXO ports, which supports WB 2-wire analog FXO and can be connected directly to the 2-wire lines. One can non-intrusively 'tap' into the analog 2-wire line via the RJ-11 interface and capture the bi-directional voice/data. The recorded voice/data is automatically saved into a single PCM file. The recording can be automated using auto trigger options, or manually controlled.

For more information, please visit Automated FXO testing using Dual UTA HD.

2-Wire Voice/Data Capture using tProbe™

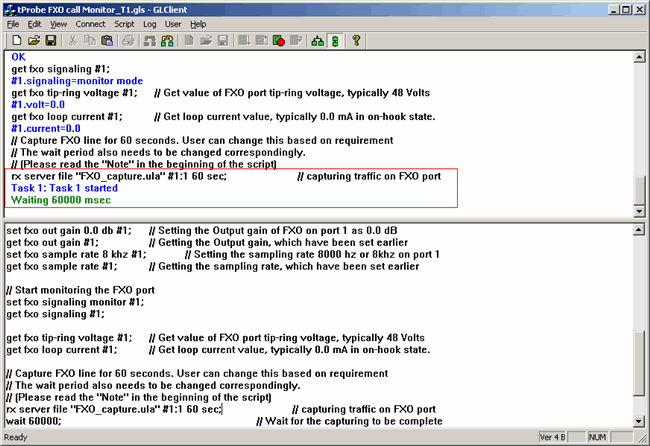

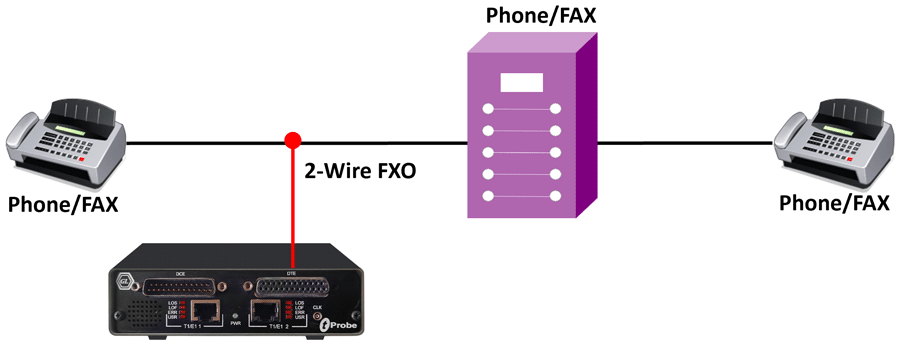

tProbe™ FXO FXS permits non-intrusive capture and analysis of voiceband signal from a two-wire FXO / FXS lines. With the tProbe™ FXO call scripts, one can perform the basic operations during the call setup such as the Off-hook/On-hook, check dial tone, transmit / receive DTMF digits, monitor ring signal, and record traffic to pcm file. The signals so monitored over the FXO ports can be captured as A-Law, µ-Law, 16-bit PCM (Intel), and 16-bit PCM (Motorola) file formats. For more information, please visit Analog FXO FXS Testing using tProbe webpage.  With additional FAX simulator license (XXFT0), tProbe™ FXO port can be used to send/receive FAX over analog lines as shown in the figure below.

For more details, refer to FAX Simulation over PSTN, T1 or E1

Adobe Audition / GL Insight™ for Voice/Fax /Modem Analysis

The captured files are used with Adobe Audition software for Voice analysis or GL Insight™ software for Modem and Fax analysis.

GL Insight™ verifies fax and modem calls by analyzing the recorded PSTN files (or IP stream). The Voice Recorder helps record these PSTN calls to the required location. The analyzer can then report with a detailed log file for easy event tracking.

Capturing on the 2-wire with a single capturing point, GLInsight™ should be able to decode protocols:

  • V.21
  • V.22
  • V.22bis
  • V.32 – with an active 2-wire probe
  • V.34 – with an active 2-wire probe
  • V.90 – with an active 2-wire probe
  • V.17
  • V.34fax

GLInsight™ supports additional protocols in a 4-wire captured environment:

Supported Protocols for Fax over PSTN

  • V.34HD, V.17, V.33, V.29, V.27, V.21, T.30, T4 / T6

Supported Protocols for Modem over PSTN

  • V.92 (Quick Connect and Modem-on-Hold supported. PCM-upstream not supported)
  • V.90
  • V.34
  • V.32bis / V.32
  • V.22bis / V.22
  • V.21
  • V.23
  • Bell 103 / Bell 212

Supported Start-up Protocols

  • V.8
  • V.8bis
  • V.8 short


  • Provides bottom-up deep diagnosis of the call
  • Provide info from data pump layer up to tiff picture
  • Helps solve interoperability issues
  • Diagnoses physical layer problems
  • Diagnoses network layer problems

Additional GL Insight™ Screenshots

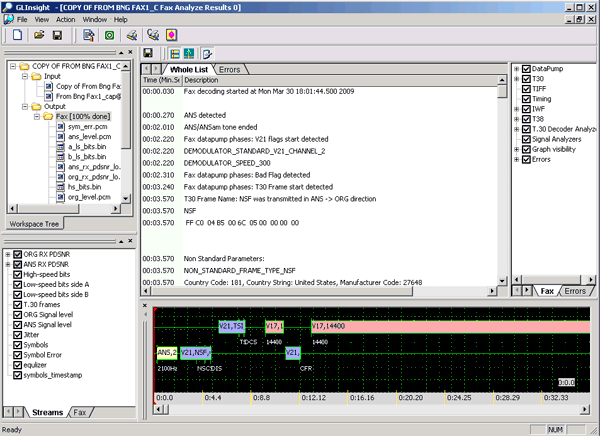

Screen Shot of GL Insight™ Fax Data Analysis over PSTN

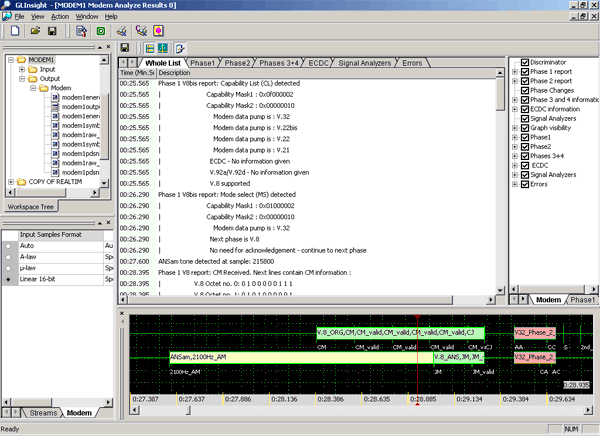

Screen Shot of GL Insight™ Modem Data Analysis over PSTN


Additional Adobe Audition Screenshots

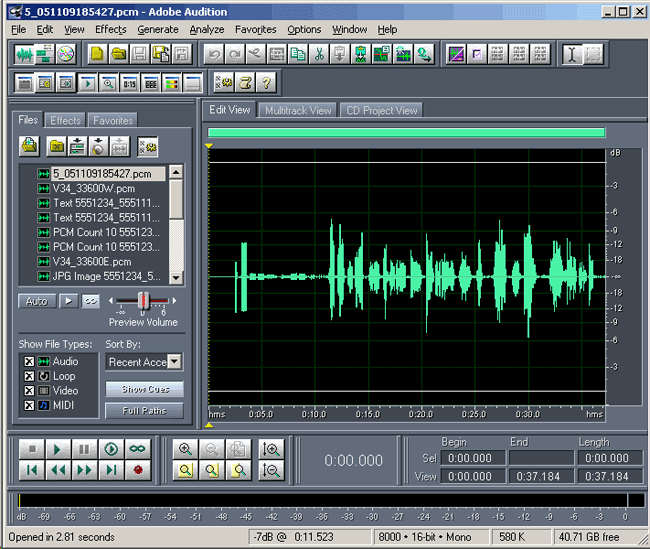

Screenshot of Analysis of the recorded voice file in Adobe Audition

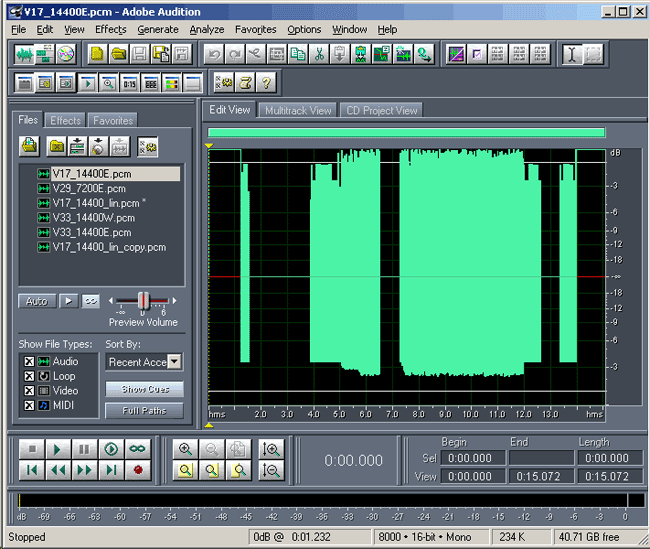

Screenshot of Analysis of the recorded Fax Signal in Adobe Audition

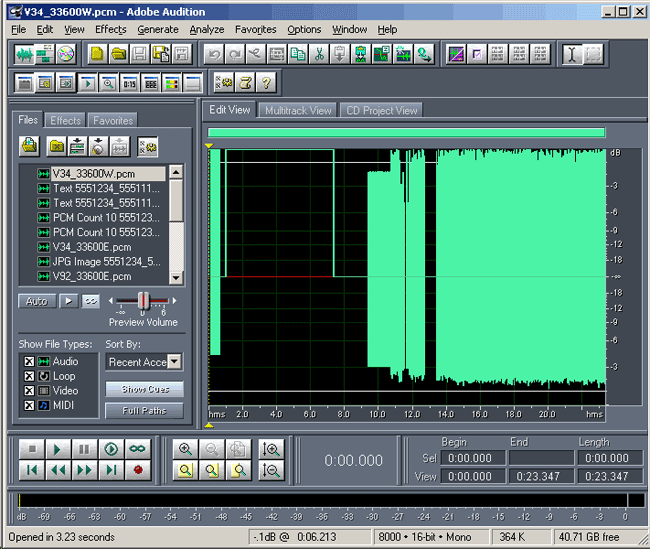

Screenshot of Analysis of the recorded Modem Signal in Adobe Audition

Post Dial Delay (PDD) & Post Ringback Delay (PRD) measurements using GL's VQuad™ software

The analysis associated with the PDD detects the trailing edge of the last DTMF digit sent as part of the placed call. It then detects the leading edge of the Ringback tone coming from the far end switch. The PDD is the measurement between these two events.

The PRD measurement (coming soon) would be similar, however, it would detect from the end of the Ringback to the beginning of the voice or end of the Ringback (beginning of the call). In other words, it would detect from the end of the Ringback to the beginning of the call.

Both the analysis functions require the use of GL's 2-wire phone tap along with GL's VQuad™ software. The VQuad™ scripts provide a mechanism to automate the required tone recording and analysis.

Buyer's Guide:

Item No. Item Description
VQT035 Voice Recorder (FXO RJ11 Hardware Tap / 2-Wire Capture Software)
  Related Hardware
VQT251 Dual UTA HD Next generation Dual UTA with FXO Wideband support
VQT252 Dual UTA HD – Bluetooth Option
VQT461 Dual UTA HD Smartphone ACC Cable
SA011b One Pair (2) of Single 3.5 mm plug to single RCA plug cables
SA007k Mono to Stereo Mini Phone Cable (Y Cable), 6 in length
PTE015 w/ 2Wire FXO and FXS Optional Board; uses xx600, requires xx624 (MAPS FXO FXS)
XX610 File based Record/Playback (Client side) and ClientDataTxRx (Server side)
XX620 w/ DTMF/MF/MFC-R2 + answer/place call capability
  Related Software
VQT010 VQuad™ Software (Stand Alone)
GL Insight™ - Single Fax Analysis - TDM
GL Insight™ - Single Fax Analysis - IP
GL Insight™ - Single Modem Analysis - TDM
GL Insight™ - Single Modem Analysis - IP
VBA023 Near Real-time Voice-band Analyzer
SA026 Adobe Audition Software
SA048 Goldwave Software
DR001 DCOSS for Fax/Modem Simulation over PSTN, T1/E1 and VoIP
XX031 Enhanced T1 / E1 Call Capture/Analysis Software
