WebViewer™

Webviewer™ Software Ver 5.0  | Download Now!

Click the image to view Live Demo of WebViewer™
This is a live demo of GL's WebViewer™ system. Using this demo, you can watch (in real-time) the quality of voice files being probed and captured from various network nodes.

Overview

GL's WebViewer™ provides the method to display and access, in real time, the entire VQuad™/VQT network including all individual VQuad™ probes as well as the central location. Current status of the entire test is displayed along with customized user statistics and results of the active tests.


pdf Product Brochure
pdf Quick Install Guide
pdf User's Guide
Supported Codecs
pdf GL Product Lists
View Presentation

The WebViewer™ uses a simple web browser with facilities to query the results either manually or automatically as well as output the results/statistics. These results include VQuad™ Call Event, User Defined Events, Bluetooth® events, Data Test (NetTest from PC and NetTest from Mobile Device), VQT, VBA, Delay and Echo Measurement results and Fax TxRx Events which can be saved to either text or Excel format. WebViewer™ includes support for user-defined statistics with both tabular and graphical outputs.

The WebViewer™ browser can also provide real-time status of the entire VQuad™/VQT network as well as remote accessibility of any node associated with the network. Transfer configuration files between the VQuad™ nodes and your local system for enhancements. Automatically send the updated configuration back to the VQuad™ system (or all VQuad™ systems). Rerun the test using the enhanced VQuad™ configuration, all from the WebViewer™ browser running on either Windows® based or Mac based systems (including iPhone and iPad devices).

GL’s VQuad™ provides automatic call control over several networks and supports transmit/capture of voice files in real-time from the various nodes. The degraded (recorded) voice files are automatically transferred to the Central Location where GL's VQT analyzes and generates the results using POLQA (ITU-T P.863), PESQ (ITU-T P.862), PAMS (ITU-T P.800), PSQM (ITU-T P.861) test methods. Additional analytical metrics are also provided as a result of the VQT algorithm including jitter, clipping, and level measurements.

GL's new VQuad™ Probe is an all-in-one self-contained VQuad™ with Dual UTA test instrument. This comprehensive hardware device incorporates all the features of the current VQuad™ with Dual UTA unit such as portability and remote accessibility along with the necessary PC hardware with Win7 OS. The VQuad™ probe can be controlled via Ethernet Remote Desktop (with support for mouse/keyboard) and is of same length as the current Dual UTA hardware, but about twice as high and 50% wider.


Features

Nodes Management

  • Ability to perform auto software upgrade on all nodes in the network remotely.
  • Supports email alerts based on communication faults or results below user-defined thresholds.
  • Allows admin to pre-define the VQuad™ nodes and its operations within WebViewer™.
  • Allows admin to restrict access permissions for different users to certain WebViewer™ results, nodes, and configurations only.

Platform

  • Windows® 7 or 8 (32, 64-bit) or 2008 Server or 2012 Server (64-bit)
  • Supported on PC, Netbook, Macbook, and Mobile devices such as iPhone, Android, and iPad. View results remotely anytime anywhere using any of these access points.

Database

  • Supports both Oracle and MS Access
  • All results from individual VQuad™ probes, VQT, VBA, EMU, DataTest and FAX applications are automatically sent to central database
  • Utility to communicate with nodes and database seamlessly. Also supports database backup, export and import.
  • Offline support for importing the saved results in case of connection failure.
  • Support for Primary and Secondary IP addresses configurations for backup and redundancy

Results

  • Graphical display of Calls in Process, Analyzed (VQT, FAX, Time Delay Measurement) results, and SMS/Email NetTest results
  • Segregated NetTest results display (TCP, UDP, VoIP, Route, HTTP, FTP, DNS, SMS, and Email) and Mobile Device Information results display (PhoneInfo, SimInfo, UEInfo)
  • Results include VQT (PESQ POLQA), Call Control (Call Failure, Call Dropped, Call ID), Echo Measurements, Data Test (via Mobile device or PC Ethernet), Delay Measurements, and Fax Tx Rx Events.
  • Display all result events or display on per call basis (all results within call are averaged with min/max values provided).
  • Query results based on a variety of mechanisms to extract customized reports.

Statistics and Network Status

  • Standard measurements and events (call control, time delay, vqt) can be analyzed using graphical and tabular views
  • Customize statistics view based on any results within database.
  • Display real-time status of entire network with ability to remotely access any node within network.
  • Display VQuad, VQT, Mobile Devices, and File Monitor Node status.
  • Editable VQuad node and device script parameters. Control the tests with the turn ON/OFF option
  • Editable File Monitor node parameters and control the application with the turn ON/OFF option

Reports

  • Export results and statistics or custom output reports to *.txt or *.xls or *.pdf file formats.
  • Supports Google Maps plotting of Results, VQuad™ Nodes, and Mobile for the available GPS co-ordinates. Plotting can be done while drive testing and also while testing at a location.

Filters

  • Allows any number of filter configurations to be saved
  • Filter any results view based on measurements, and call control conditions
  • Advanced conditional filter criteria for VQT results.
  • Advanced filter criteria to customize the columns in the VQT results view
  • Create criteria to filter results based on GPS co-ordinates
  • Filter NetTest and Mobile results based on the configured test parameters




Lab System Setup

WebViewer™ Lab Setup

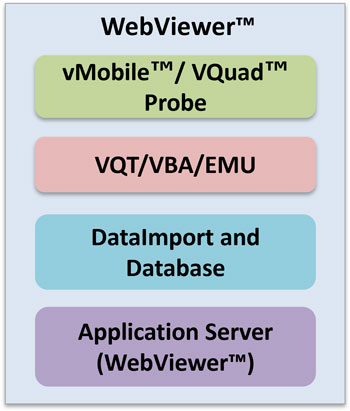

Components of GL's WebViewer™ Solution

Components of WebViewer™ solution

GL's WebViewer™ solution is a four tier architecture. The first layer consists of GL's VQuad™ which establishes the proper calls or direct connections between the near and far end using a variety of physical interfaces. The File Monitor transfers the degraded (recorded) voice files from the individual VQuad™ nodes to one of several VQT/VBA/EMU systems which are located on the second layer. Each VQT/VBA/EMU/Data Test applications automatically analyze the degraded voice file and transmit the analytical results to a single central database located at the Data Layer. This third layer provides a means for storing the captured results. The last layer is the Data Access Layer (Application Server) where the data presentation logic is contained. Each of these components is briefly explained below.


Data Layer

An Oracle or MS Access database (user specified) is used to store the analytical measurement results along with all pertinent data associated with the VQuad™/VQT/VBA/EMU/DataTest systems (Call progress events, error events, timestamps, Call ID, location information, Echo Measurements, Data Test Results, Fax Events, VQT PESQ and POLQA Events). This provides a very flexible and expandable architecture for data storage and data access. The database is accessed in real-time over the web using the WebViewer™.

The DataImport application is co-hosted with the database server running on the Data Layer. It collects the data posted by the probes and then updates the database using the collected data

Data Layer of the WebViewer™ solution


Application Server

The WebViewer™ provides an application server for accessing the VQuad™ Call progress events, user-defined error events, delay measurement results, Data Test results, Echo Measurement results, Fax Events and VQT PESQ/ VQT POLQA/VBA E-Model LQ/LQO/WB MOS measurements along with the additional analytical measurements including Call ID information. The results are queried over the internet using any browser-capable device such as desktops, table PCs MAC systems (Mac, iPhone, iPad) or PDAs. The application server is capable of serving the data in real-time or providing historic data based on customer selected filters.

Application layer of the WebViewer™ solution


Using the Application Server

Using any browser-capable-device, you can access all network results from anywhere in the world. When you open the WebViewer™, the following page will be displayed. The WebViewer™ browser can display the VQT PESQ results and ratings, VQT POLQA Events, VBA results including E-Model and ratings, VQuad™ Delay Measurement results (RTD, OWD, SNR, PDD), Echo Measurement results, Data Test results (TCP, UDP, VoIP, Route, HTTP, FTP, DNS, SMS, Email, PhoneInfo, SimInfo, and UEInfo), Fax Events and VQuad™ Call Control events including call failures and error events.

WebViewer™ Main Screen


Remote Operations

The systems (Command Center, VQuad™, VQT, and File Monitor) that work in conjunction with the WebViewer™ can be accessed or controlled remotely through this web interface.

The various options are available for the users to manually operate and control the systems remotely are start the applications on a selected node, load the test scripts, execute the scripts, and also to stop and exit from the applications remotely.

Remote Access VQuad™ System

Command Center (CC) Remote Operations

Command Center Remote Access option includes various operations that enable the users to remotely Start CC Application, Load & Start Super Script, Download Super & Site scripts, and also to Exit the CC application.

VQuad™ Remote Operations

VQuad™ Remote Access option allows users to operate on remote VQuad™ application. Operations include selecting VQuad™ System, Devices, and perform operations like VQuad™ Script Download, Load Master Configuration, Load Call Control Scripts and other commands. Schedule Ready VQuad remote operation transfers the MySchedule.txt file created at the DataImport location to the remote VQuad location and the tests defined in the schedule file are executed at the VQuad™ nodes.

VQT Remote Operations

VQT Remote Access option allows users to remotely operate on VQT application. Operations include Starting and stopping VQT application, and also to Load, Start, Stop auto configurations remotely.

File Monitor Remote Operations

File Monitor Remote Access option allows to Start File Monitor Application, Create Configuration, Start Auto Configuration, and also to Stop Auto Configuration which is located at remote location. Defining Remote Path stores the degraded files transferred from the VQuad™ PC, and the remotely running VQT PC, which are controlled through Webviewer™ browser.

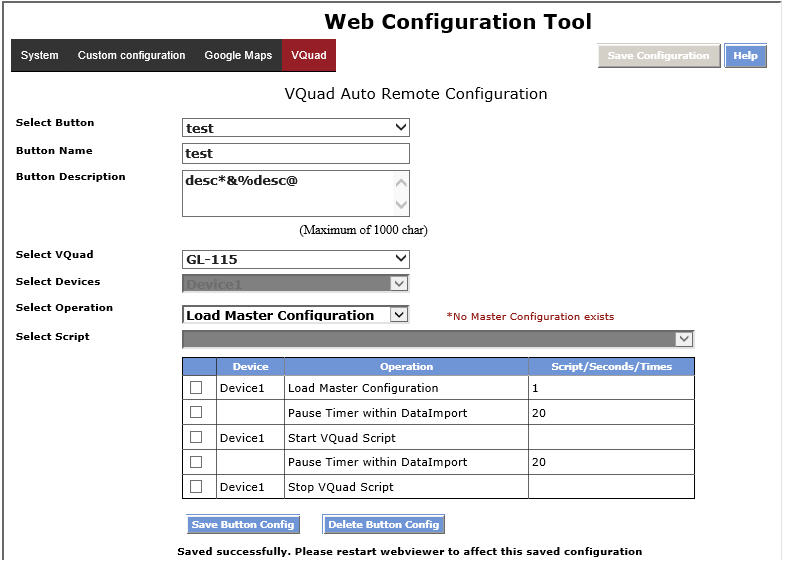

VQuad™ Auto Remote Control

With Admin login, VQuad™ Nodes can be configured with selected scripts and operations such as Load/Run/Stop Master Configuration, Scripts, and Pause Timer scripts to be performed on each of its nodes and devices. The Admin can also authorize any specific user to control the automated VQuad™ nodes.

With User login, the VQuad™ Nodes can be remotely controlled by starting or stopping the configured scripts on the devices and also monitor the node status (such as Idle / Stopped / Loading / Initiating / Running tests).

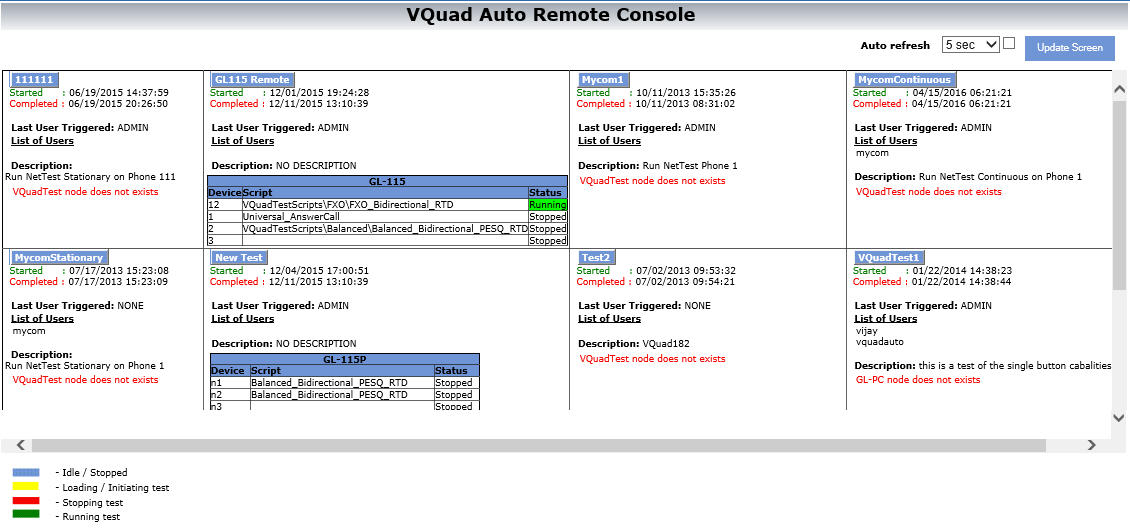

Screen Shot of VQuad Auto Remote Console

Screen Shot of Customization of VQuad Auto Remote Console


Customization of Results, Events, and Statistics view

User Defined Statistics and Events allow the user to customize specific result view, which are required to appear within a single statistic or single set of events.

Web Configuration Tool includes options to customize Voice Quality Pie Chart, Time Delay Pie Chart, including customized search based on Call Control Event, Custom Stats criteria and to create customized User Defined Columns view based on VQuad™, VQT, VBA, Echo Measurements, Data Test and Fax events.

Custom Statistics View

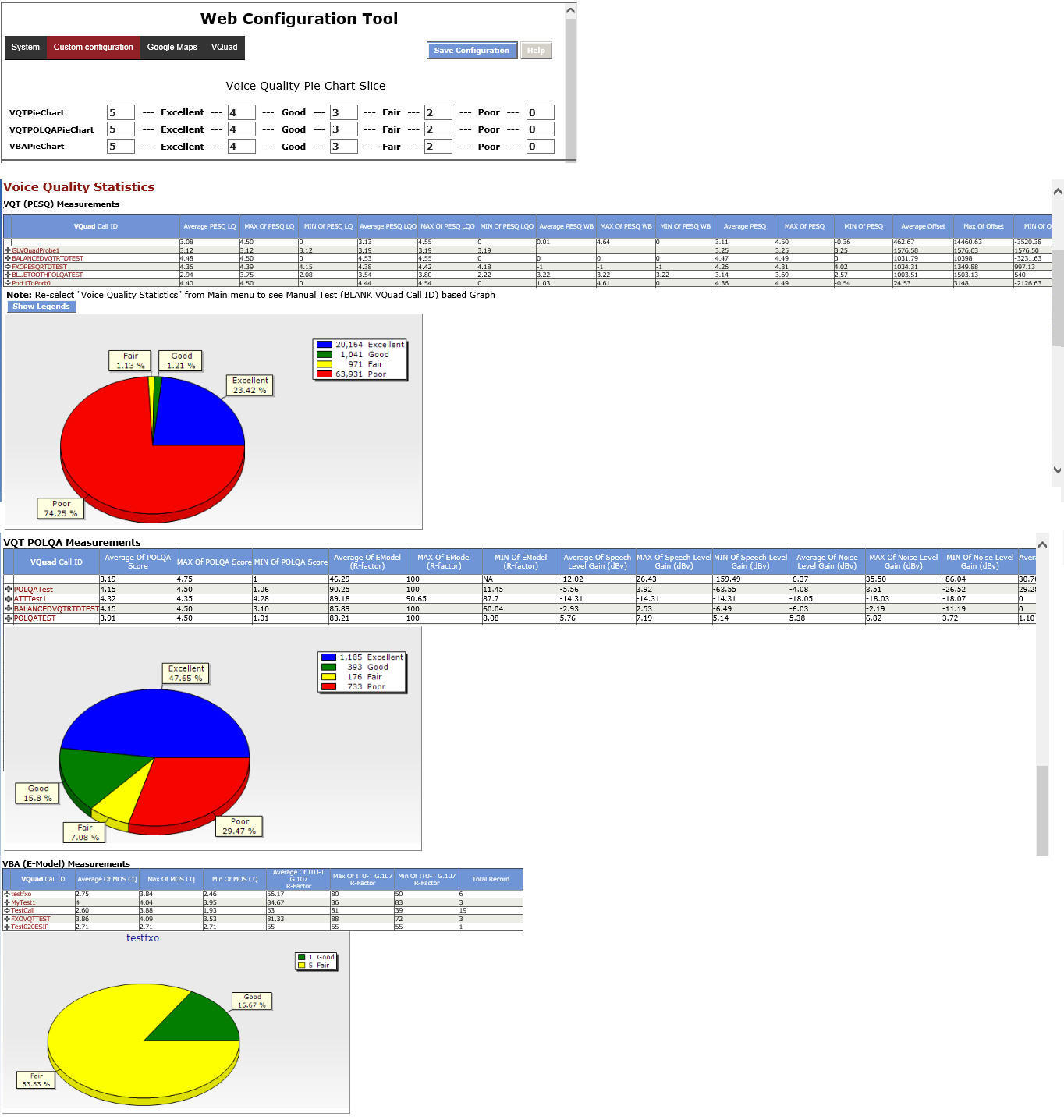

VQT, POLQA, and VBA Statistics - VQT Statistics displays pie chart for the VQT (PESQ), VQT POLQA, and VBA (E-Model) measurements. Webviewer™ allows customizing the statistics based on the ratings (Excellent, Good, Fair, Poor) for VQT, POLQA, and VBA measurements.

Screen Shot of VQT Statistics

Time Delay Status and Statistics - Time Delay screen displays statistics associated with the delay measurements including RTD/OWD/SNR/PDD. Time Delay Pie Chart Slice configuration option allows customizing the statistics based on the ratings (Excellent, Good, Fair, Poor) for RTD, OWD, PDD, and SNR QoS measurements.

Screen Shot of RTD, PDD, OWD Statistics

Customized Stats Searching Criteria - The Customized Statistics display screen is populated based on the search criteria defined using the Web Configuration Tools based on the entire results including VQT PESQ, VQT POLQA, VBA (with or without E-Model), Time Delay Measurement, User-defined Events, EMU, Net Test, and Fax events. Custom Statistics also displays pie chart as per the statistics columns populated.

Screen Shot of Customize Statistics View

Custom Events View

Call Control Event Searching Criteria - is a  Web Configuration Tools option, which allows customizing Call Control Events by defining search and calculate criteria, reflected in the Call Event Statistics view. Both the Call Events and Customized stats provide user-defined Call Control statistics along with Pass/Fail ratios. A graphical pie-chart representation based on these statistics columns is also displayed.

Screen Shot of Customize Call Events View

User-defined Result View

 The User-defined Results View screen is populated with the results as per the columns configured using User-Defined Columns Criteria tool.

The User Defined Events page gives a single glance of the results queried over the entire results and events in the central database, including VQuad™, VQT, VQT POLQA, VBA, NetTest (PC based and Mobile device Test), EMU, and FAX events.

Screen Shot of Customize Results View


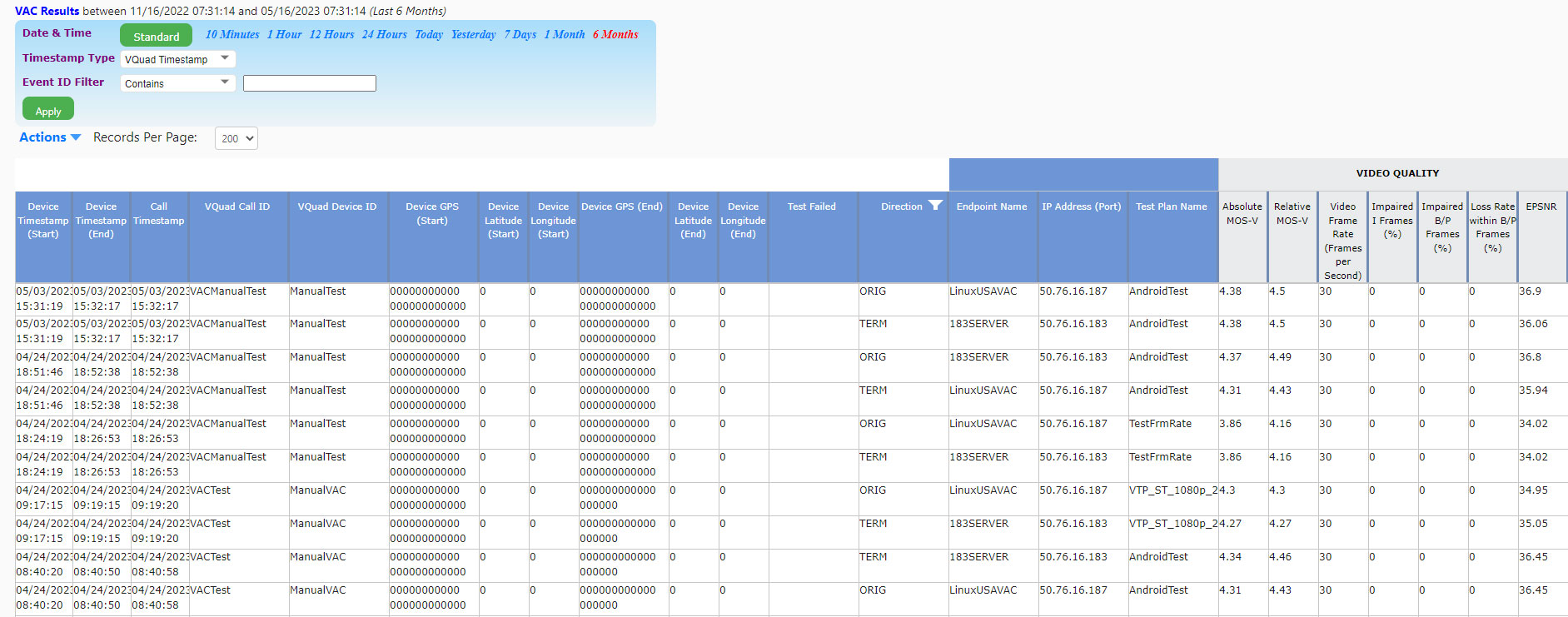

View Results

VQT PESQ

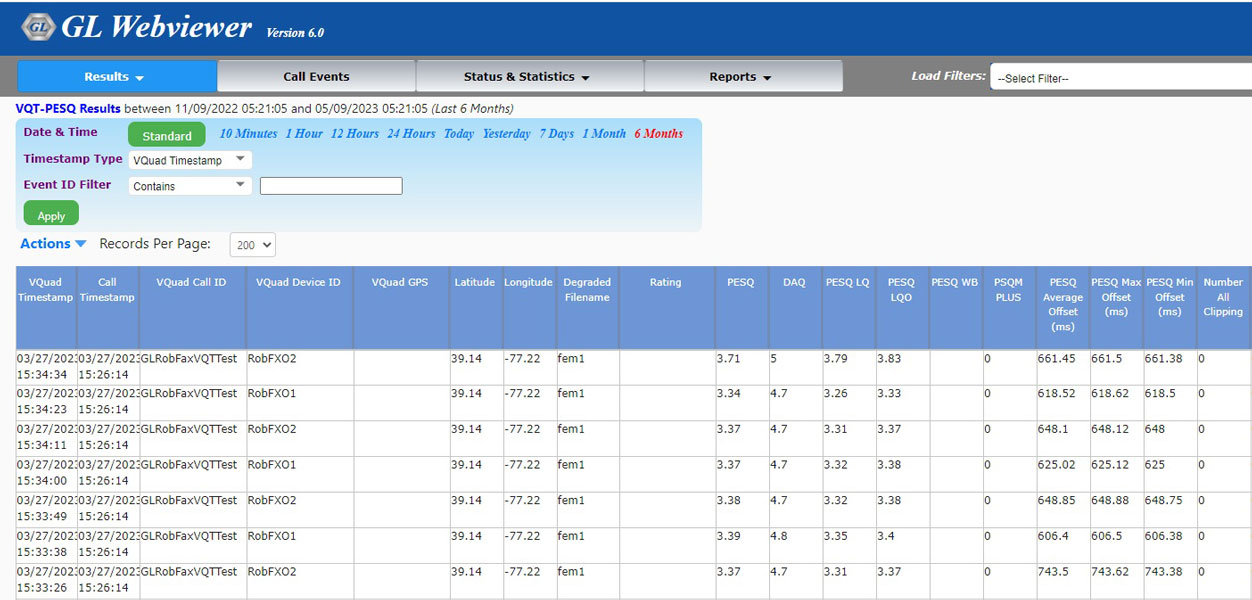

The VQT PESQ measurements sent to WebViewer for display are populated in the VQT PESQ Results screen. Various VQT PESQ results can be queried over web interface. The VQT PESQ result screen can be further filtered to view specific result measurements along with the graphical display.

Screen Shot of VQT PESQ Results


VQT POLQA


This screen displays the VQT POLQA results including POLQA MOS, E-Model, Signal Level, SNR, and Jitter measurements. The VQT POLQA result screen can be further filtered to view specific result measurements along with the graphical display.

Screen Shot of VQT POLQA Results

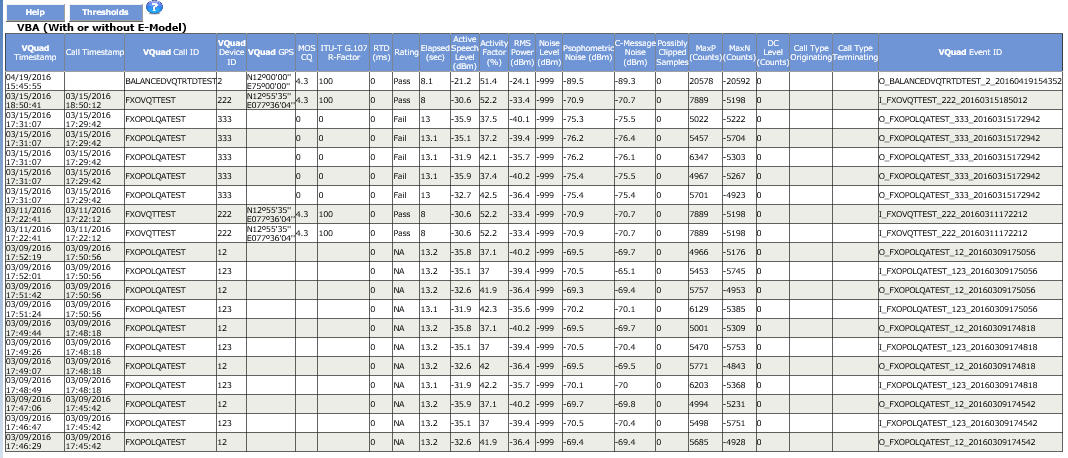

VBA (with or without E-Model)

 A single glance of voice band analysis results can be viewed in the VBA E-Model Results screen. Various VBA results can be queried over web interface. The VBA results can be further filtered to view specific result measurements along with the graphical display.

Screen Shot of VBA E-Model Results

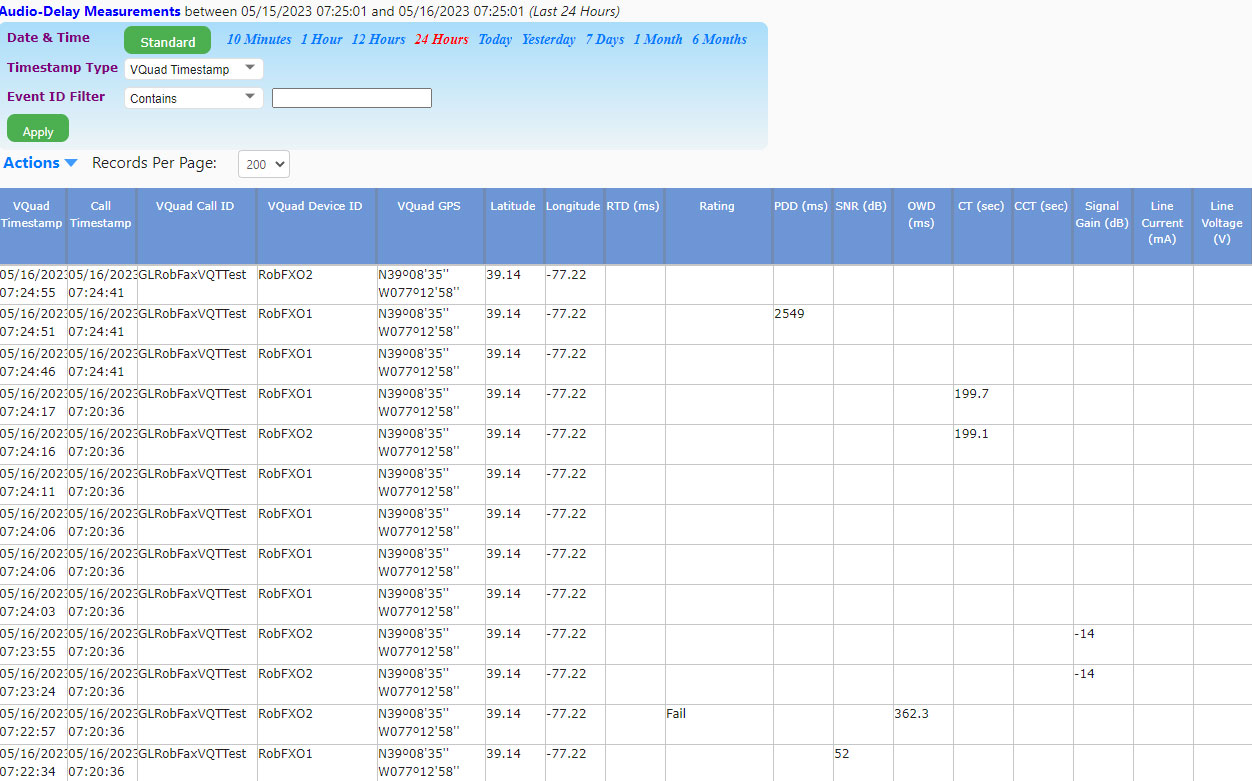

Time/Delay Measurement

Time/Delay measurement results can be viewed in this screen. Various results parameters including RTD (ms), OWD (ms), PDD (ms), SNR (dBm) can be queried over web interface. The results can be further filtered to view specific Time/Delay result measurements along with the graphical display.

Screen Shot of RTD, OWD, PDD, SNR Results

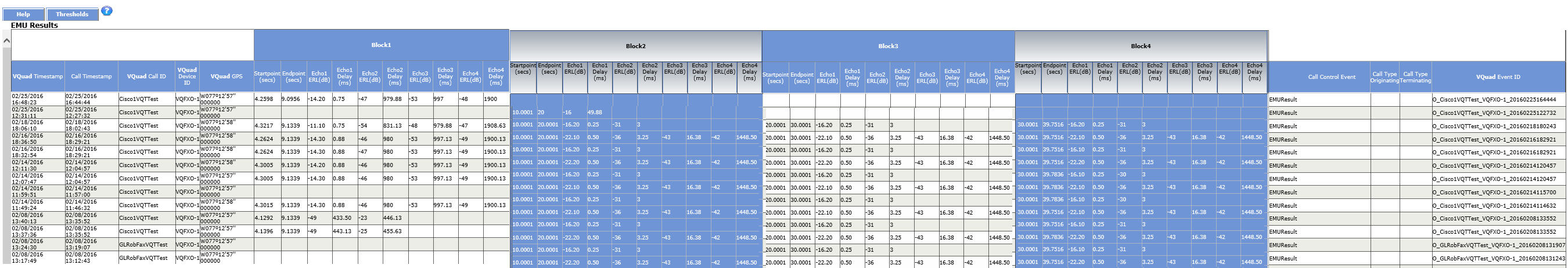

EMU Results View

Echo measurement results can be viewed in the EMU Results View screen. Various result measurements can be queried over web interface including Echo ERL (dB), Echo Delay (ms), Call Control Events, VQuad™ Call IDs and other measurements. The results can be further filtered to view specific EMU result measurements.

Screen Shot of Echo Measurement Results

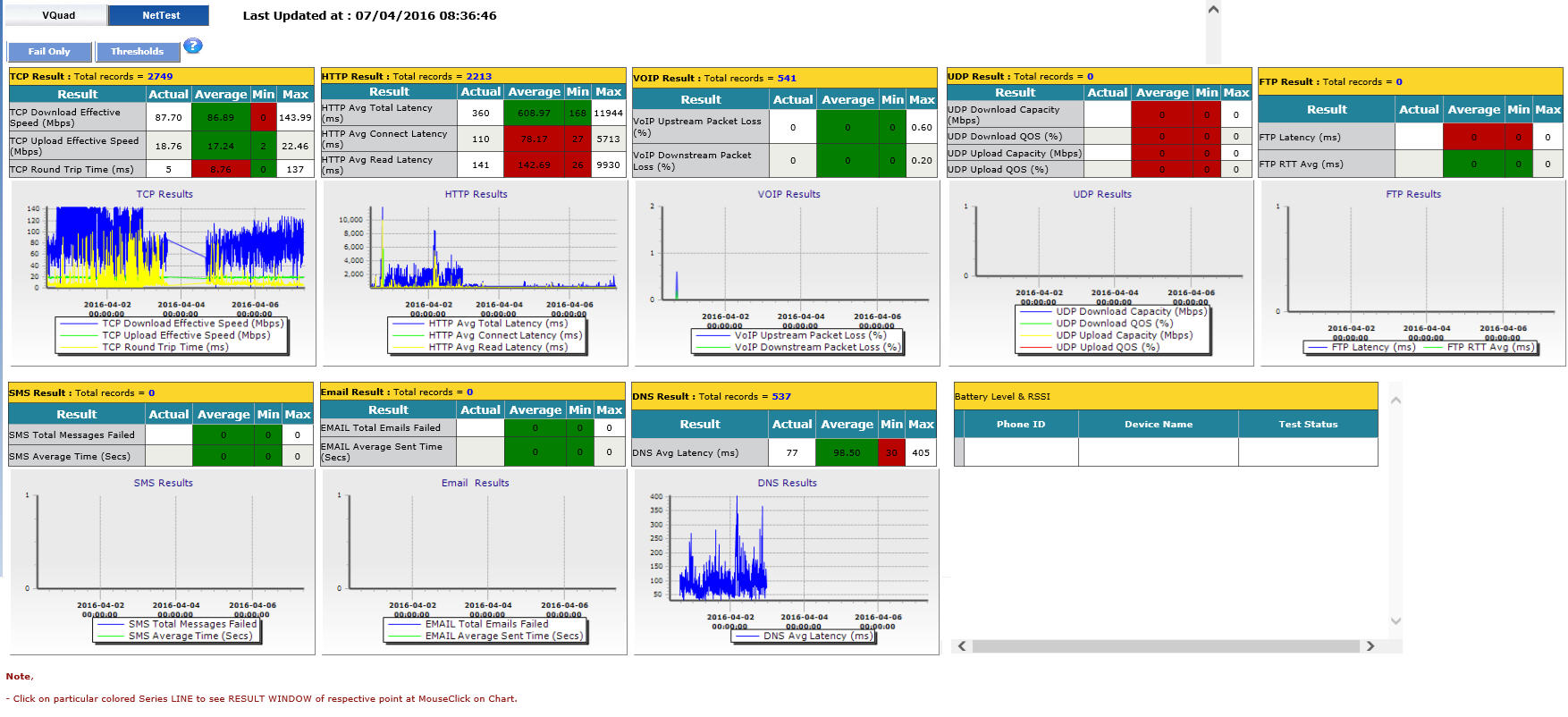

NetTest Results (DataTest) View

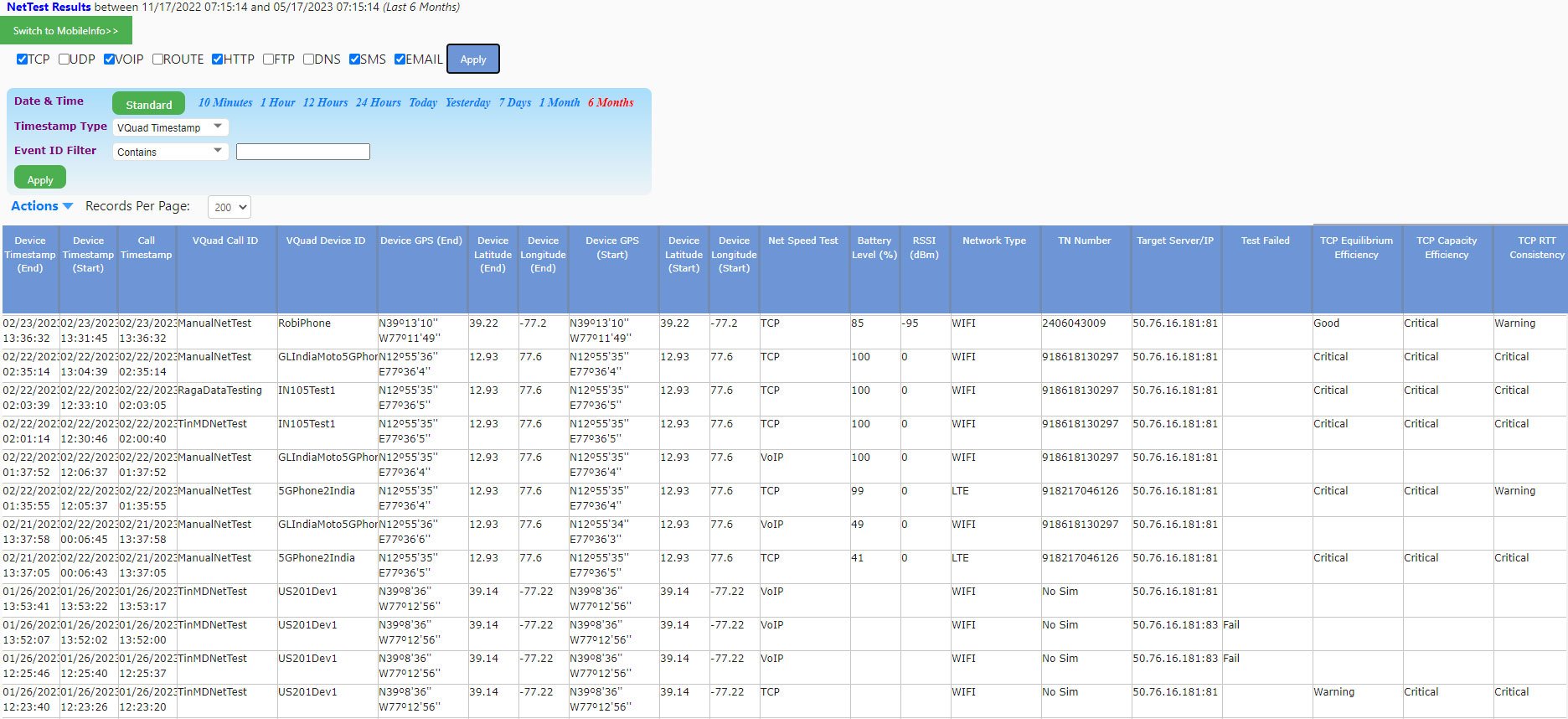

NetTest Result View screen displays results from PC andMobile Devices which includes TCP, UDP, Route, VoIP, HTTP, FTP, DNS, SMS, Email. Also, displays Mobile Devices information such as PhoneInfo, SimInfo, and UEInfo.

Screen Shot of NetTest Results

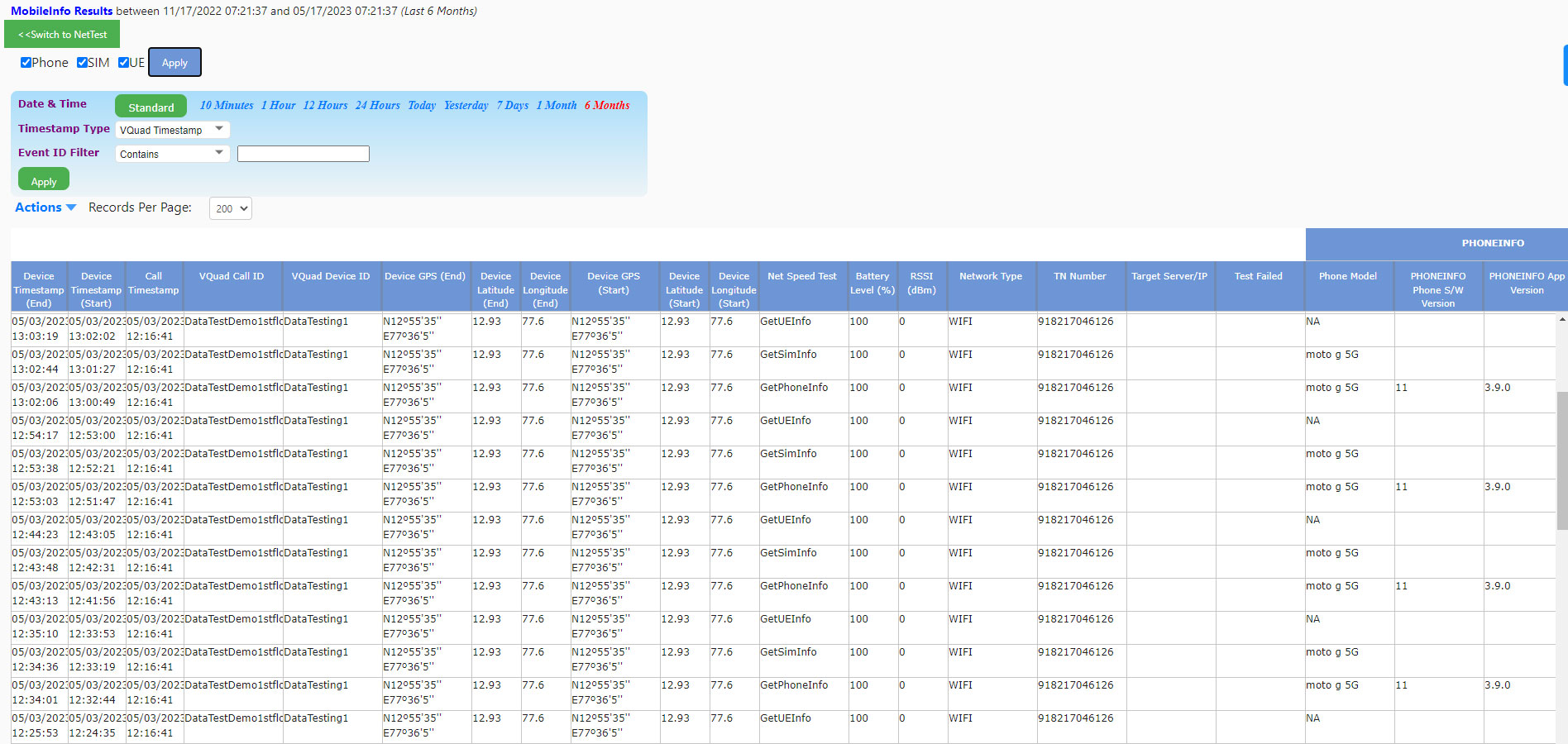

Screen Shot Mobile Device Information

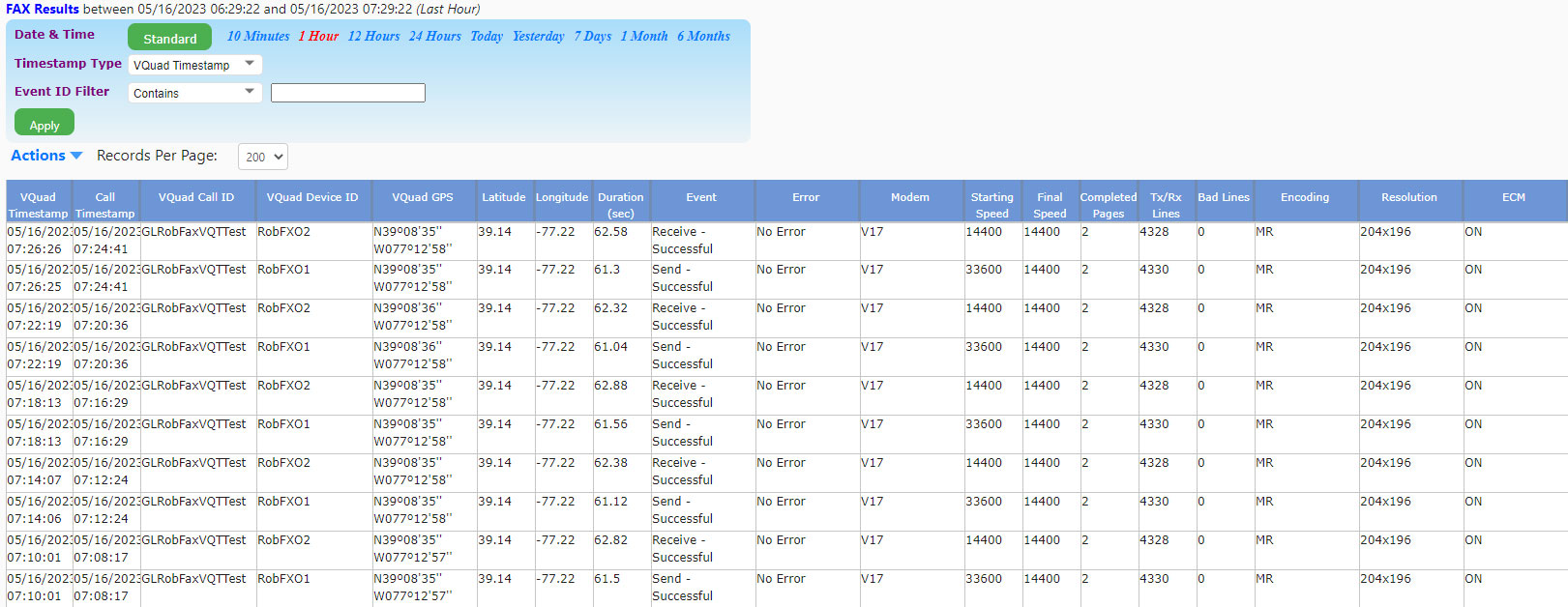

Fax Events View

The FAX Tx Rx test results conducted using VQuad™ scripting on 2-wire FXO / 4-wire analog network are sent to the WebViewer™ for the display. The Fax events that can be queried over web interface includes Duration(sec), Error, Event, Modem, Starting Speed, Final Speed, Completed Pages, Tx/Rx lines, Bad Lines, Encoding, Resolution, ECM (Error Correction Mode), and VQuad Call ID parameters.

Screen Shot of Fax Events Results View


VQuad™ Call Events

The Call Events result screen displays all call records for a selected VQuad™ timestamp. Also displays error events, call failures, and user-specified events.

The pre-defined filter configuration can be loaded across all the result view screens or turn-off the load filter option to view the entire database results.

VQuad™ Call Events result view

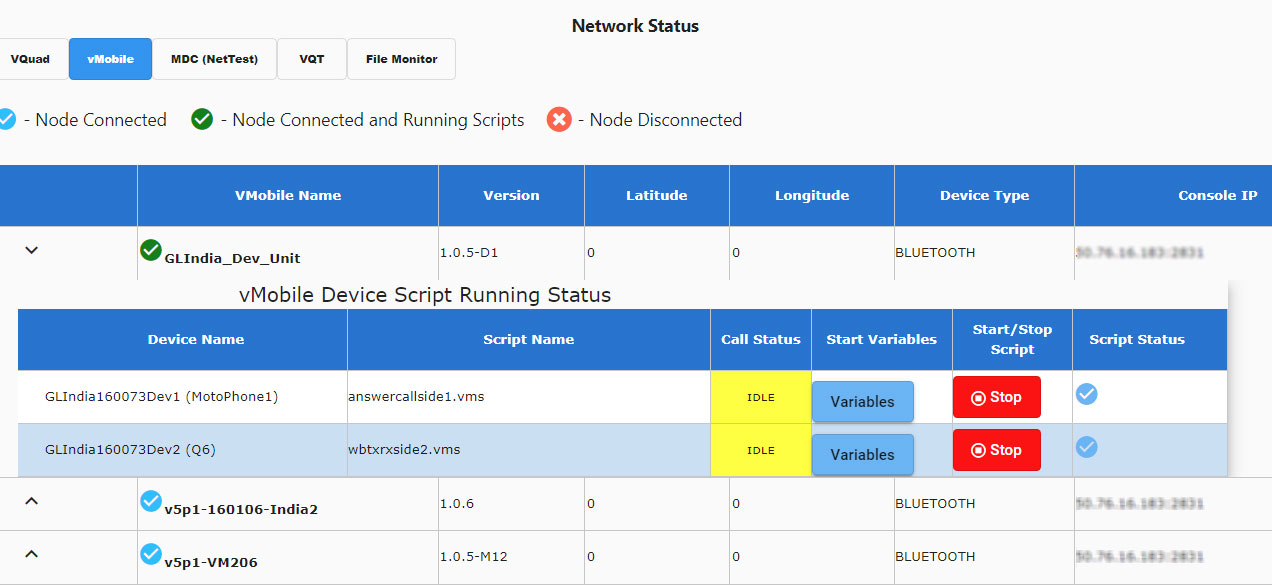

Network Status

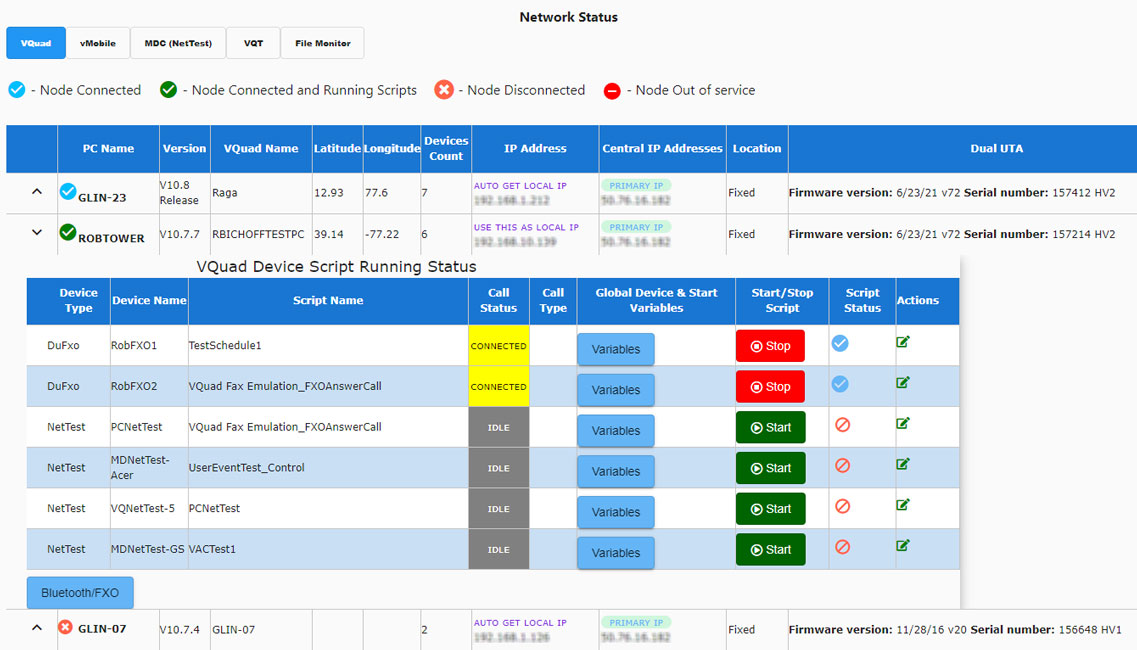

Network Status view gives the real-time status of all the VQuad™ probes, connected Mobile Devices, VQT Probes, File Monitor applications, and the Command Center applications in the network.

VQuad™ Network Status screen displays the ‘VQuad™ Probe Status’ and the ‘Devices Script Status’.
Option to edit VQuad and File Monitor Node parameters are included for easy control of the nodes. Editable VQuad node parameters includes Node Name, GPS coordinates (retrieved automatically if GPS receiver is attached to Dual UTA or can be user defined, to be displayed in WebViewer Google Maps), VQuad™ PC IP address, Primary and Secondary Central DB IP Addresses configuration for backup and redundancy, and VQuad™ location (Fixed/Mobile) type. VQuad™ node device script status parameters such as the script name, Global Device & Start Variables, FXO & Bluetooth number, and Start/Stop script manually.

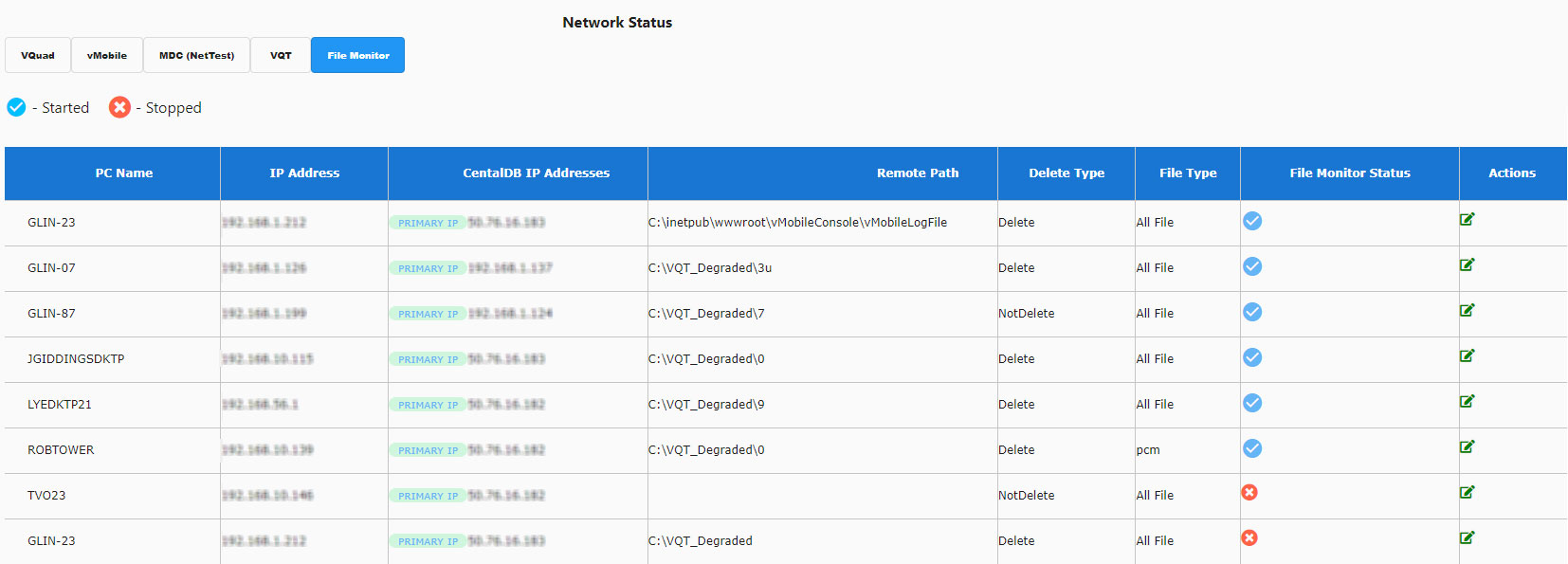

File Monitor node status screen displays the Computer Name, IP Address, Primary and secondary VQT Destination IP Addresses to handle network fail-overs, Remote Path, Delete Type, File Type, and the running/ stopped File monitor Status. The editable File Monitor node parameters include Destination IP Addresses, Remote Path, Delete Type, and File Type.

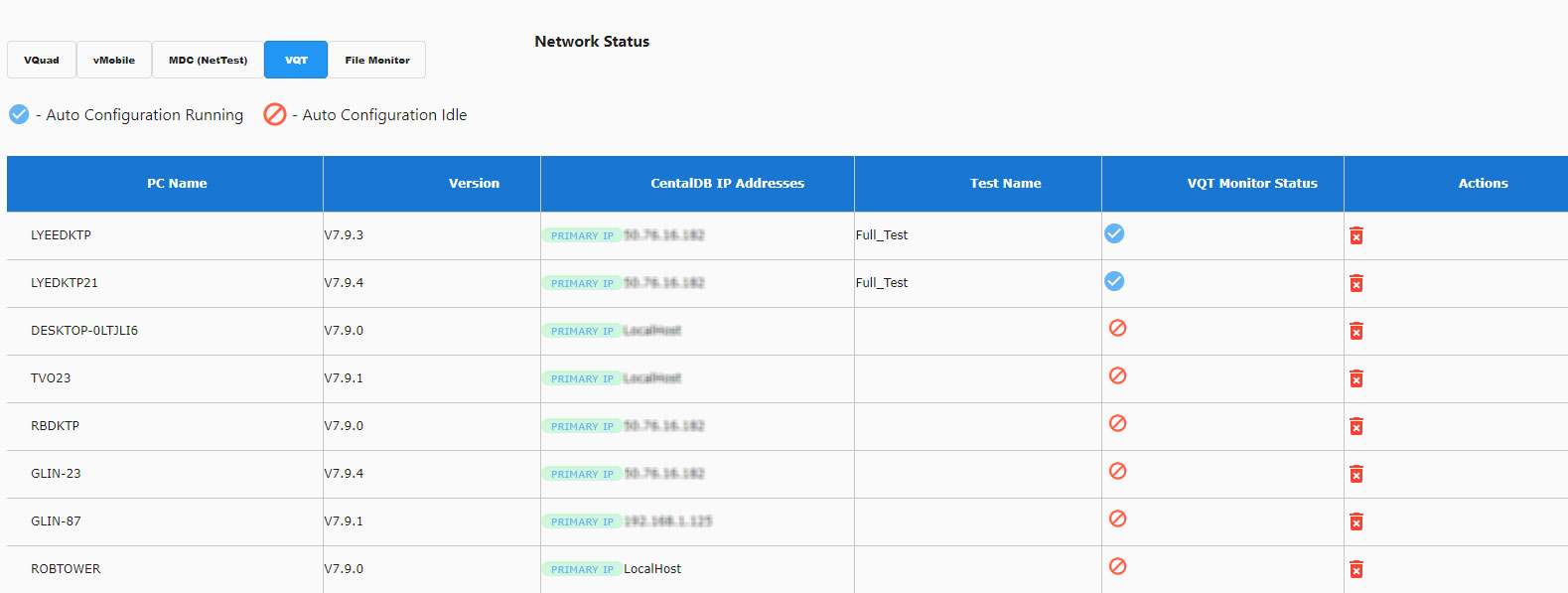

VQT node status screen displays Computer Name, Central DB Primary and secondary IP Address for back-up and redundancy, Version, Test Name, and the Test Status.

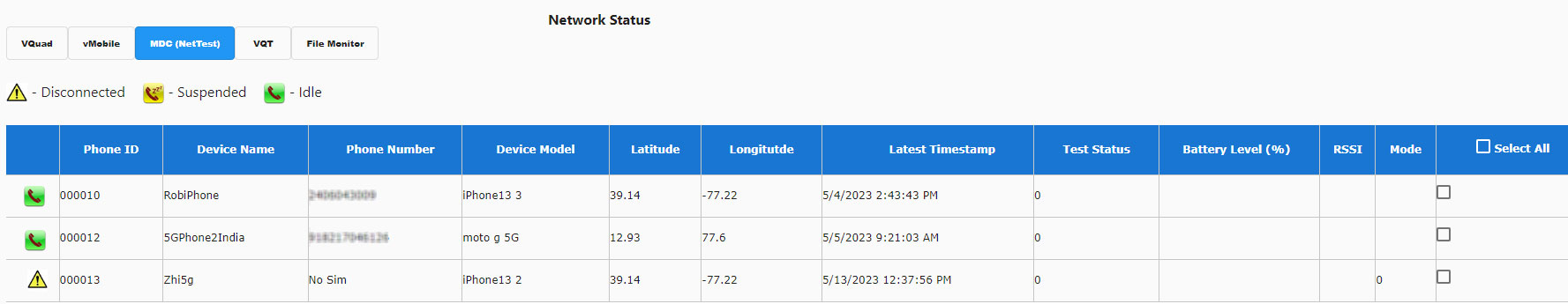

Mobile Device Status such as Disconnected, Phone Suspended, Phone Idle, and other conditions along with  mobile device information in the network are also displayed.

Real-time network status of VQuad™ probes


Filters

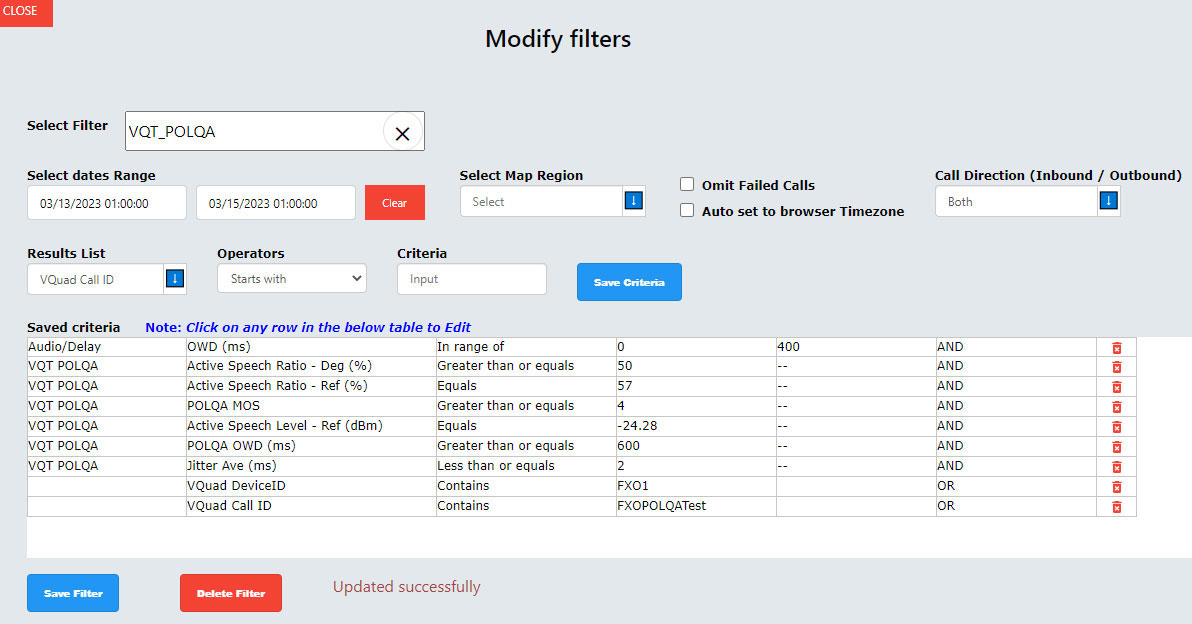

Search Criteria

Using the Search Criteria option, the user may filter the search based on a variety of different criteria including Called Number, Ratings, Measurement Range, and User-Specified Events. The results of the query may be based on a Time Filter with an Auto Refresh option or based on a start/stop time/date. . It is also possible to search through the results/events based on the GPS position. The NetTest results can also be filtered based on the configured PC based NetTest and Mobile NetTest result parameters.

Screen Shot of Search Criteria

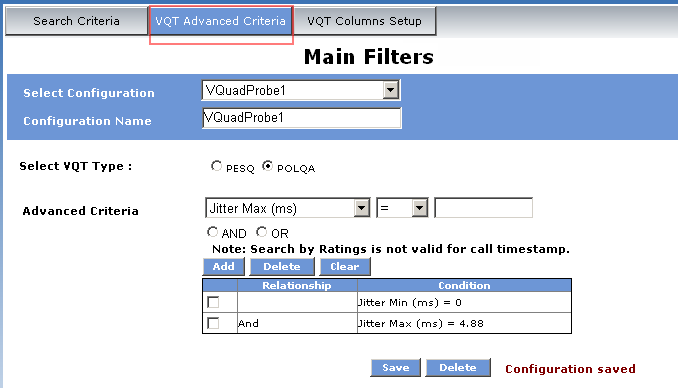

Advanced Search Criteria

The Advanced filter criteria option allows VQT PESQ and POLQA parameters to AND or OR the conditions to create unlimited filtering configurations. The pre-defined filter can be loaded or a new filter (search criteria) configuration can be defined and saved.

Screen Shot of Advanced Filter Criteria

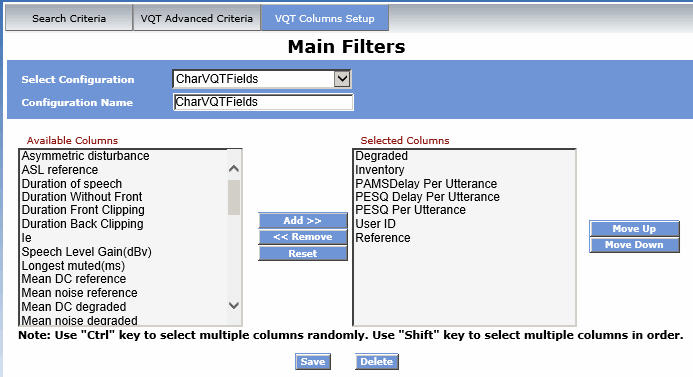

Columns Setup

Column Setup option helps the user to view the results for the selected VQT columns, and re-arrange the columns as required. The configurations can be saved which supports unlimited filtering configurations.

Screen Shot of Column Setup for VQT result View


Graphics

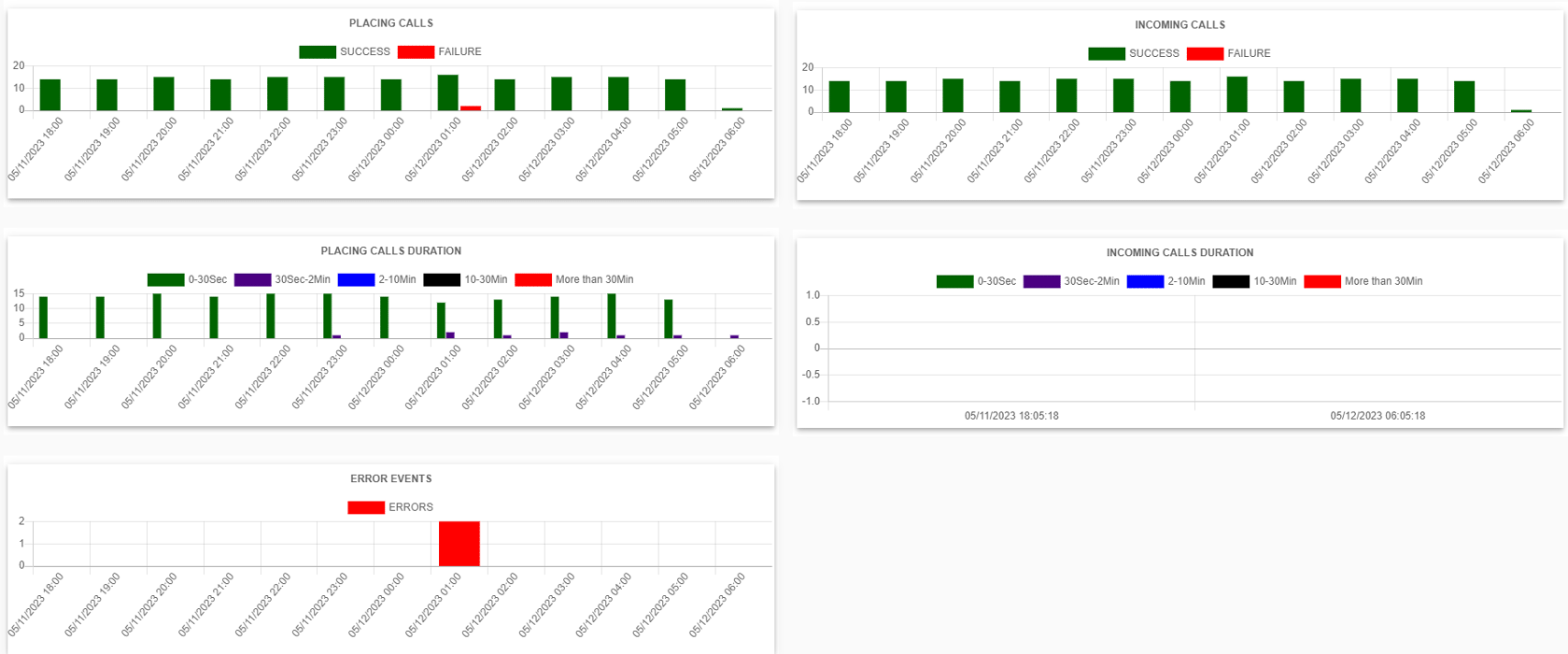

Call Process

The Call Process graphical display consists of Placing Calls, Incoming Calls, Placing Calls Duration, and Incoming Calls Duration bar graphs as seen in the screen below. We use the Placing calls and Incoming calls count and duration to get graphs in a search during a particular timestamp. Error events are the count of events started with “Error”. All graphical display is related to the “Call Events” log.

Screen Shot of Call Process Graphics

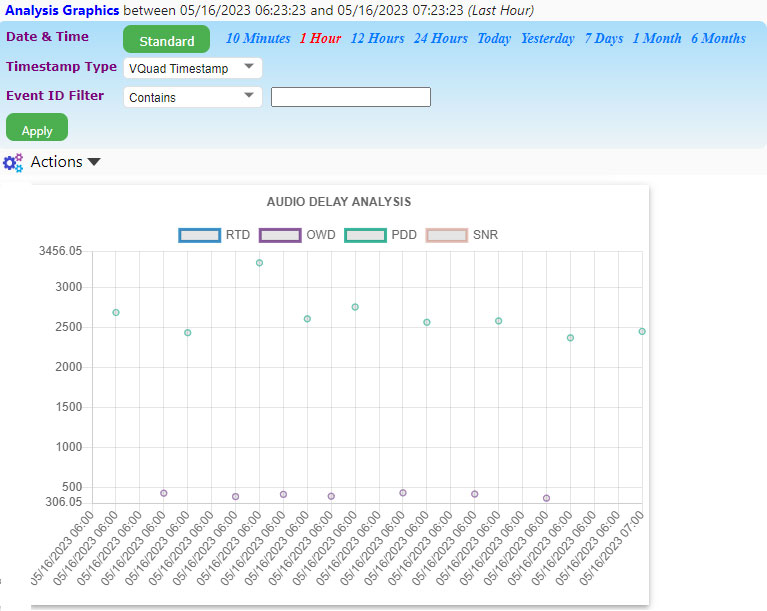

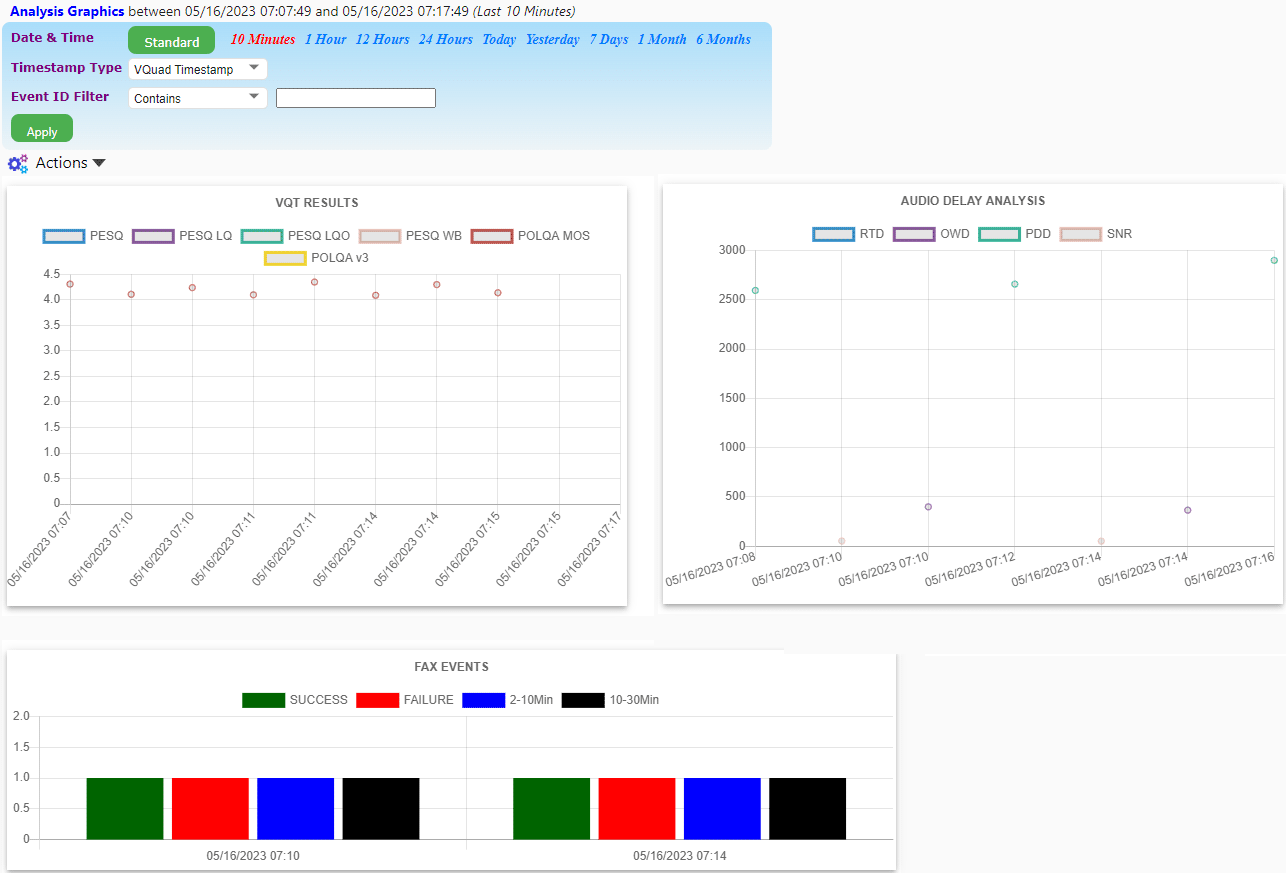

Analysis

  • VQT PESQ - Graphical display of the PESQ, PESQ LQ, PESQ LQO, PESQ WB, and POLQA scores that are calculated according to Daily View/Hourly View.
  • Time/Delay Measurements - Graphical display of the RTD (ms), PDD (ms), OWD (ms) and SNR (dBm) scores that are calculated according to Daily View/Hourly View.

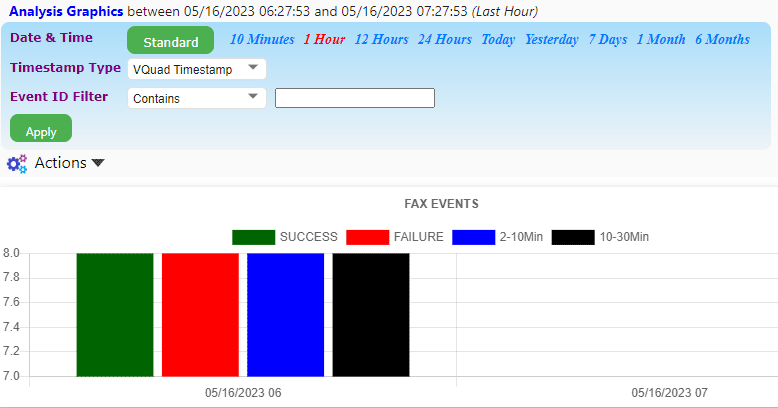

  • FAX Events - Graphical display of Fax Events including number of Received FAX Failed/Passed events, and the number of Send FAX Failed/Passed events during the particular timestamp

Screen Shot of Analysis Graphics

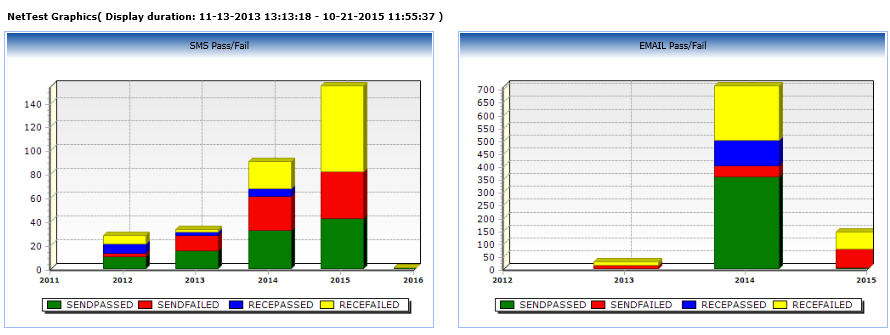

NetTest

Graphical display of SMS and Email sent and received Failed/Passed NetTest events for PC based and Mobile devices

Screen Shot of SMS and Email NetTest Graphics

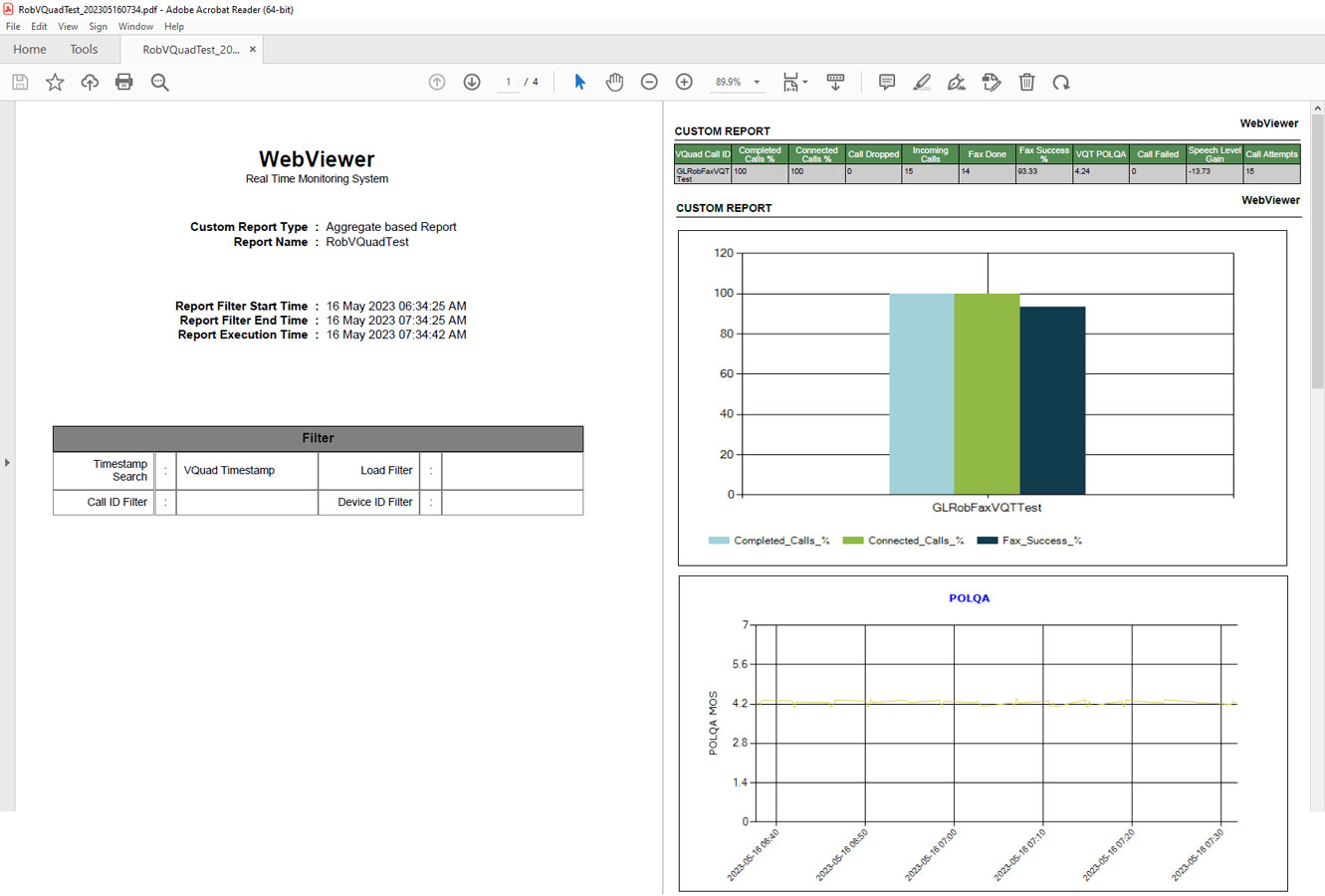

Output Results

This output results for any selected test can be exported as a text file, PDF, or Excel. The reports can be even customized using the Custom Report feature.

Screen Shot of Output Results

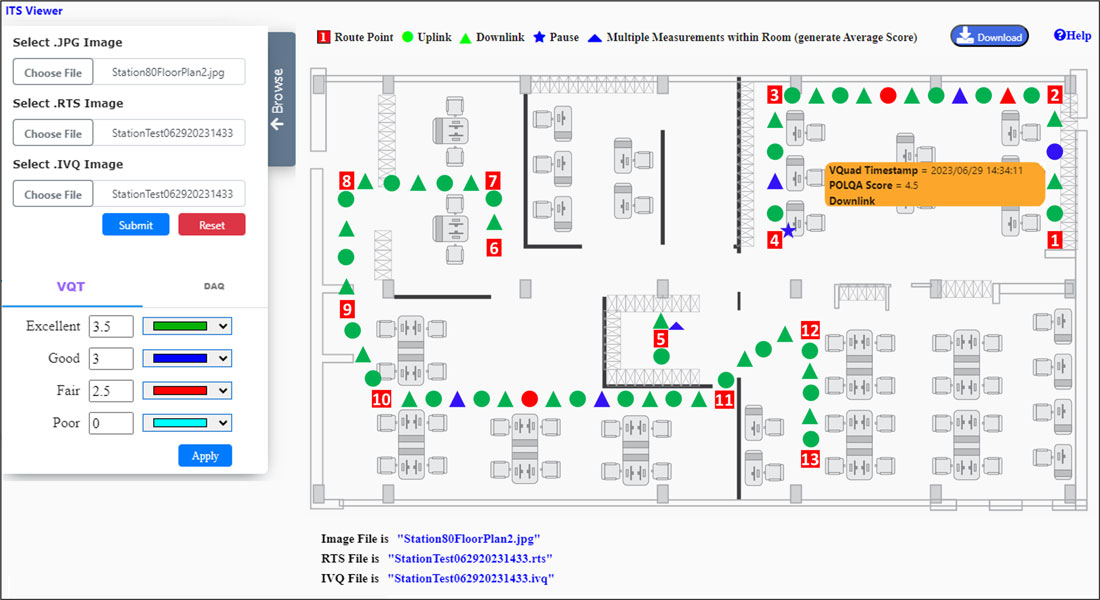

Google Maps

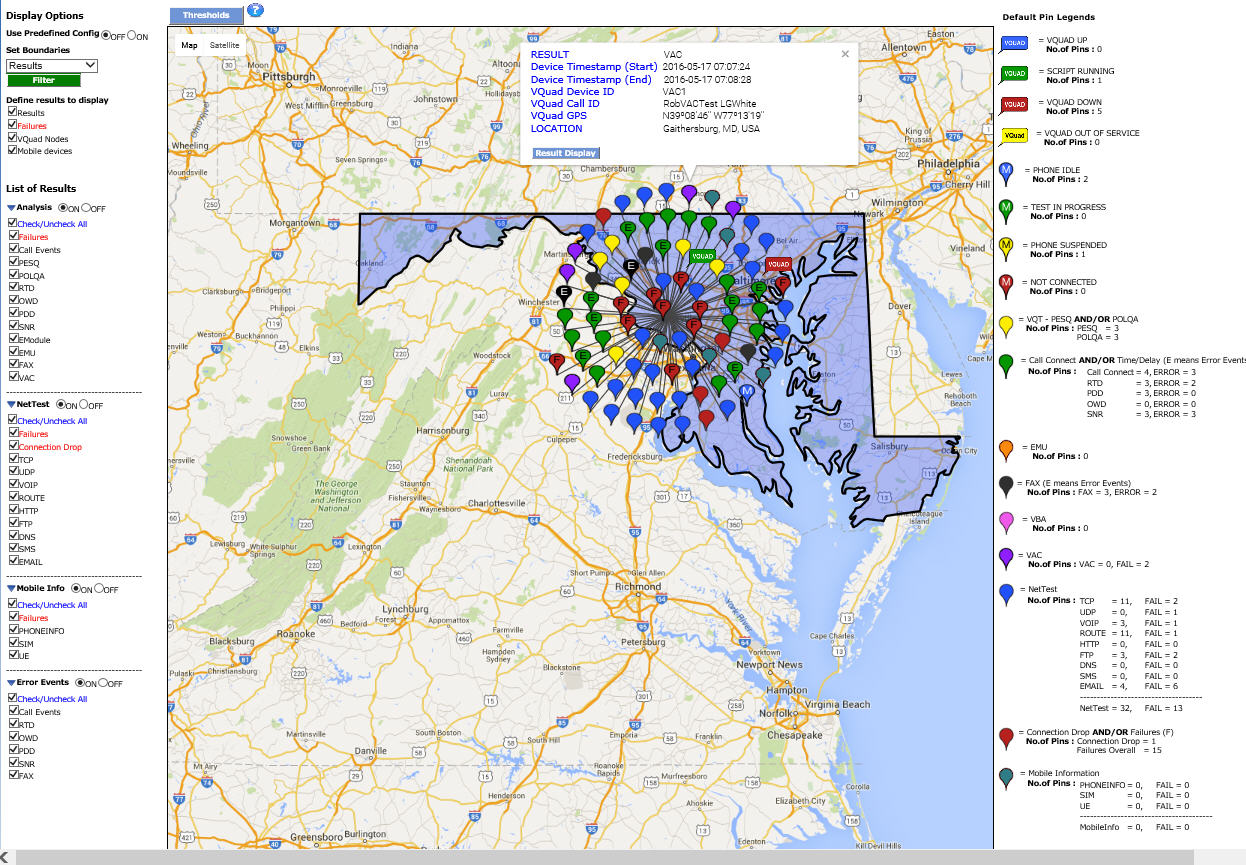

Google Maps plotting option is provided to display the GPS co-ordinates of various Results, VQuad Nodes, and Mobile Devices. Results include VQT PESQ, VQT POLQA, NetTests, Call Connect Events, EMU, FAX, and VBA tests. These are differentiated using color codes and text call-outs. Plotting can be done in real-time while drive testing and also while testing at a location.

Google Maps plotting can be customized based on the specific map configuration. The customized map plotting can be further refined by choosing the test parameter such as VQuad™ location, VQuad™ Phone ID, Call Events, Threshold Settings; and other result types.

Within the map, any node result details such as Result type, Device PhoneID, Device Name, GPS Position, and Location of the test result can be obtained. Users can also get the individual device or application status or result statistics

Screen Shot of Google Maps Plotting

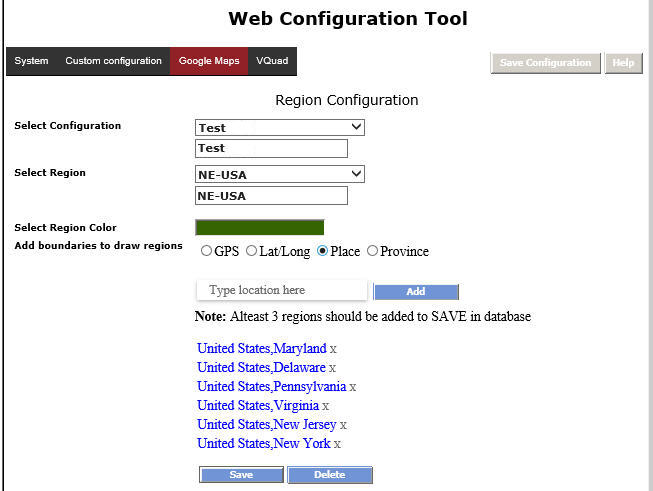

The Google maps Plotting Configurations can be created for the 4 map types (Threshold Settings, VQuad™ Location, VQuad™ Phone ID, and Call Events), and the results available for the results types, and the Phone IDs. The Pin configuration includes the color and the text settings to indicate the Pass and the Fail conditions on the map.

Screen Shot of Google Maps Plotting

Buyer's Guide:

Item No. Item Description
VQT040 Webviewer™
  VQuad™ Miscellaneous
VQT204 GPS for Dual UTA
VQT010 VQuad™ Software (Stand Alone)
VQT270 VQuad™ Probe with Dual UTA
VQT280 VQuad Probe with Dual UTA HD
VQT601 Mobile Device Controller (MDC) Software
VQT600 VQuad™ NetTest Data Server Solution
VQT610 Target Data Server
VQT022
VQT022a
VQuad™ Fax Emulation (2 simultaneous ports)
VQuad™ Fax Emulation (8 simultaneous ports)
VQT015 VQuad™ with T1 E1 Call Control
VQT030 Network Command Center (Multi-Node Command and Control Center for VQuad™ Systems)
VQT011 Dual UTA - Software Development Kit (SDK)
VQT241 VQuad™ Dual UTA with Balanced, Analog FXO, PTT, and Phone Handset Interfaces
VQT242 VQuad™ Dual UTA Bluetooth option for controlling any Bluetooth device (Call Control and Audio)
VQT251 Dual UTA HD Next generation Dual UTA with FXO Wideband support
VQT252 Dual UTA HD – Bluetooth Option
VQT442 (cable) Mobile Audio Interface for Smartphones
VQT443 (cable) 3-wire headset interface Adaptor for Smartphones
  VQT and Analysis
VQT002 Voice Quality Testing (PESQ only)
VQT006 VQT w/ POLQA Server License
VBA032 Near Real-time Voice-band Analyzer
EMU037 Echo Measurement Utility (EMU) Software

* Specifications are subject to change without notice.
