T1 E1 Testing

TRAU Traffic Playback (Emulator)

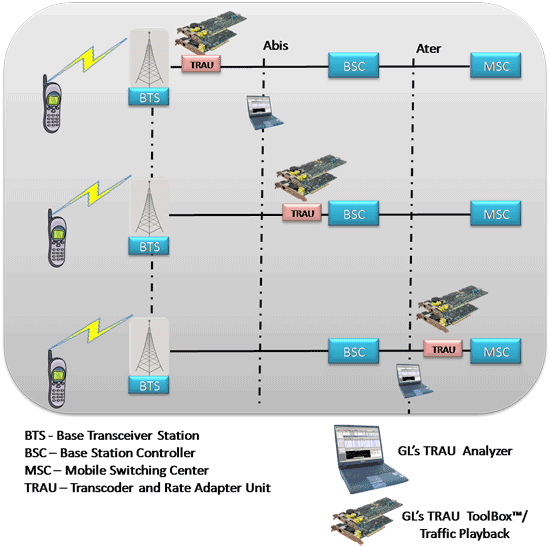

Protocol analysis network architecture

Overview

The TRAU Traffic Playback is an application used to generate TRAU traffic on T1/E1. The tool provides the ability to playback the recorded TRAU HDL file(s) using TRAU Analyzer on selected/all subchannels of T1/ E1 lines. The application allows the user to transmit a single file or multiple files on the desired subchannels at any given time. TRAU frames are time-aligned as per the control information in the frame.

EFR, FR (GSM 6.10), HR, AMR, AMR-WB, O&M, Data, Data 14.5 and Idle Speech frame types, which are stored in the recorded TRAU files, can be used for transmission. TRAU frames can be manually generated using bin2frame application, which takes text file as input and convert it into .hdl format. This file can be played in real time using TRAU Traffic Playback.

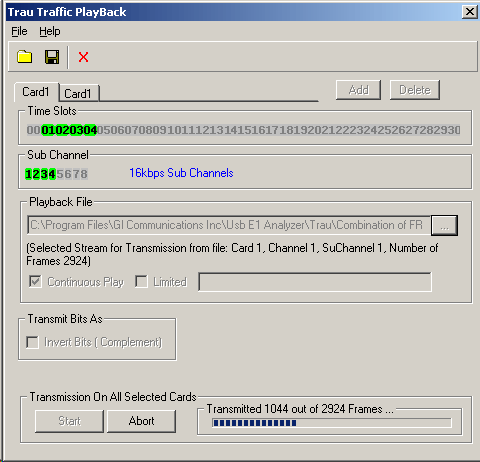

TRAU Traffic Playback


Main Features

  • Recorded trace files can be transmitted on specific channels/sub-channels.
  • Data transmission rates supported includes 16kbps and 8 kbps.
  • Provides the option to inverse bits in the selected data during transmission.
  • Trace files can include TRAU frames types such as EFR, FR (GSM 6.10), HR, AMR, AMR-WB, O&M, Data, Data 14.5 and Idle Speech frame types, which are stored in the recorded TRAU files, can be used for transmission.


Bridge and Monitor Connections



Resources

Please Note1: The XX in the Item No. refers to the hardware platform, listed at the bottom of the Buyer's Guide, which the software will be running on. Therefore, XX can either be ETA or EEA (Octal/Quad Boards), PTA or PEA (tProbe Units), UTA or UEA (USB Units), HUT or HUE (Universal Cards), and HDT or HDE (HD cards) depending upon the hardware.


Item No. Item Description
XX153 T1/E1 Real-time TRAU Protocol Analyzer

TRAU Traffic Playback

TRAU Toolbox™
OLV153 Offline TRAU Analyzer
  Other Related TRAU Applications
XX646 Multi-Channel TRAU Tx/Rx Emulation and Analysis
  Related Software
XX090 HDLC Capture and Playback Software (T1 or E1)
XX150 GSM Protocol Analyzer
XX155 T1 or E1 Real-Time GPRS Protocol Analyzer
  Related Hardware
HDT001/HDE001 Legacy HD T1 or E1 (PCI) Cards with Basic Analyzer Software
HTE001 Universal T1/E1 Card with Basic Analyzer Software
UTE001 Portable USB based Dual T1 or E1 Laptop Analyzer with Basic Analyzer Software
