Automated G.168 EC Compliance Testing of ATAs and Gateways - All IP Solution

  • AutoECTest is used to test for compliance

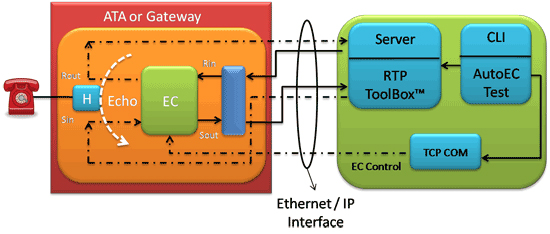

  • AutoECTest talks via a CLI (Command Line Interface) to an RTP Toolbox Server

  • RTP Toolbox Server establishes two RTP sessions with the EC under test

  • Full automation requires that Rout, Sin, Rin, and Sout streams are available thru the IP interface

  • For each compliance test in the G.168 test suite

    • Sin and Rin signals are transmitted files with Sin being a prefabricated echo file with precise echo characteristics of delay, filter, and attenuation derived from the stimulus file Rin

    • Rout and Sout are captured files via the IP interface

    • Sout is analyzed by AutoECTest and the results displayed graphically see above links to AutoECTest

  • EC control for such actions as NLP on, NLP off, etc can be done in a variety of ways please discuss this with us

  • Semi automated operation is also possible with manual control of the EC

Buyer's Guide:

Please Note: The XX in the Item No. refers to the hardware platform, listed at the bottom of the Buyer's Guide, which the software will be running on. Therefore, XX can either be ETA or EEA (Octal/Quad Boards), PTA or PEA (tProbe Units), UTA or UEA (USB Units), HUT or HUE (Universal Cards), and HDT or HDE (HD cards) depending upon the hardware.

Item No. Item Description
PKB100 RTP ToolBox™
PKB067 AutoECTest - Automatic G.168 Compliance Test Suite
PKB105 G.168 Echo Canceller Test Compliance Suite
Manual G.168 Echo Canceller Test Compliance Procedures and Codec Files (w/dongle to enable GLCView); includes PKB070
PKB067

Automated Echo Canceller Testing - All IP Version
Fully Automated EC testing per G.168 from the VoIP side - includes PKB110 - call for details and limitations (w/dongle version); includes PKB070 and AEC001

PKB080 Automated Echo Canceller Testing - TDM-VoIP
Fully Automated LEC Compliance Testing per G.168 for combined TDM-VoIP Interfaces, requires dongle (includes PKB100, PKB110, xx600, xx610, xx630 and requires additional PKV100, T1 E1 Card with xx062 and xx105); includes PKB070 and AEC001
PKB110 Client / Server for RTP Toolbox™
  Related Software
PKB080 Automated Echo Canceller Testing - TDM-VoIP
Fully Automated LEC Compliance Testing per G.168 for combined TDM-VoIP Interfaces, requires dongle (includes PKB100, PKB110, xx600, xx610, xx630 and requires additional PKV100, T1 E1 Card with xx062 and xx105); includes PKB070 and AEC001
PKB081 Automated Acoustic Echo Cancellation (AEC) Compliance Test Software
  Related Hardware
HDT001/HDE001 Legacy HD T1 or E1 (PCI) Cards with Basic Analyzer Software
HTE001 Universal T1/E1 Card with Basic Analyzer Software
UTE001 Portable USB based Dual T1 or E1 Laptop Analyzer with Basic Analyzer Software
  Recommended Accessories
SA013 T1 / E1 On Site Training Class (not including travel or hotel)
SA021 File Edit Software
SA026 Adobe Audition Multitrack Sound File Viewing and Editing Software
SA048 Goldwave Software
SA017A RJ48C to RJ48C Straight Cable, 10ft. cable
SA017A RJ48C to RJ48C Crossover Cable, 10ft. cable
SA008a Handset Adapter with Handset
SA022 Extended 1 Yr. Software Upgrades and Hardware Warranty, and Comprehensive Support for Basic and Optional Software
