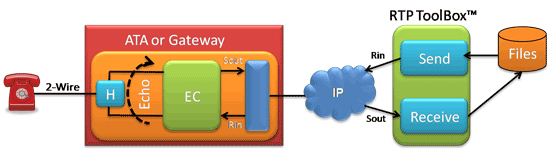

Manual G.168 EC Compliance Testing of ATAs and Gateways with 2-Wire Interfaces

  • Manualy test most G.168 compliance cases

  • Echo Path Loss (EPL) and Echo Path Delay (EPD) not controllable due to being embedded in gateway

  • Use RTP ToolBox™ (PKB100) and G.168 compliance test suite (PKB105)

  • Uses GLC View to manualy analyze G.168 compliance

  • For more information on specific G.168 procedures covered please click here

  • Manual procedures are very similar to the procedures provided at EC Compliance Testing per G.168 page

Buyer's Guide:

Please Note: The XX in the Item No. refers to the hardware platform, listed at the bottom of the Buyer's Guide, which the software will be running on. Therefore, XX can either be ETA or EEA (Octal/Quad Boards), PTA or PEA (tProbe Units), UTA or UEA (USB Units), HUT or HUE (Universal Cards), and HDT or HDE (HD cards) depending upon the hardware.

Item No. Item Description
PKB100 RTP ToolBox™
PKB105 G.168 Echo Canceller Test Compliance Suite
Manual G.168 Echo Canceller Test Compliance Procedures and Codec Files (w/dongle to enable GLCView); includes PKB070
PKB067

Automated Echo Canceller Testing - All IP Version
Fully Automated EC testing per G.168 from the VoIP side - includes PKB110 - call for details and limitations (w/dongle version); includes PKB070 and AEC001

PKB080 Automated Echo Canceller Testing - TDM-VoIP
Fully Automated LEC Compliance Testing per G.168 for combined TDM-VoIP Interfaces, requires dongle (includes PKB100, PKB110, xx600, xx610, xx630 and requires additional PKV100, T1 E1 Card with xx062 and xx105); includes PKB070 and AEC001
  Related Software
PKB081 Automated Acoustic Echo Cancellation (AEC) Compliance Test Software
  Related Hardware
HDT001/HDE001 Legacy HD T1 or E1 (PCI) Cards with Basic Analyzer Software
UTE001 Portable USB based Dual T1 or E1 Laptop Analyzer with Basic Analyzer Software
  Recommended Accessories
SA013 T1 / E1 On Site Training Class (not including travel or hotel)
SA021 File Edit Software
SA026 Adobe Audition Multitrack Sound File Viewing and Editing Software
SA048 Goldwave Software
SA017A RJ48C to RJ48C Straight Cable, 10ft. cable
SA017A RJ48C to RJ48C Crossover Cable, 10ft. cable
SA008a Handset Adapter with Handset
SA022 Extended 1 Yr. Software Upgrades and Hardware Warranty, and Comprehensive Support for Basic and Optional Software
