IPNetSim™ Handheld
(Ethernet, IP, WAN Network Emulator)


Overview

GL's IPNetSim™ Handheld is a hand-held battery operated instrument that can simulate the real-time IP and Carrier Ethernet network dynamics by means of hardware controlled packet delay, loss, jitter, errors, bandwidth limitations, congestion, and duplication. IPNetSim™ Handheld offers to manage network behaviors of up to 1 Gbps rates with accuracy always better than 1ms.

IPNetSim™ Handheld is an invaluable tool for IP equipment manufacturers, R&D departments, Network Operators, ISP and Triple Play service providers that test and verify a wide variety of projects to determine whether a network application or device is appropriate for operation in such networks.

IPNetSim™ Handheld is equipped with hardware based impairments generator, and dual GbE ports, to emulate the dynamics of real Ethernet / IP networks.


pdf User's Guide
pdf Quick Start Guide
pdf Product Brochure
View Presentation
pdf Product List
pdf Handheld Product List

Main Features

  • Shape and manage up to 16 independent flows of traffic with predefined QoS.
  • Impairment generation on each flow including Latency, Packet Loss, Duplication, Delay, Jitter
  • Impairments as per ITU-T Y.1541 standard
  • Jumbo frames support up to 17 kBytes
  • Traffic shaping and Traffic Policing
  • Events: Packet loss, delay, error, duplication, jitter, bandwidth limitations, and congestion,
  • Events are implemented at Ethernet layer
  • Users can place errors within IP protocols or edit the Ethernet/IP fields
  • Customizable filters defined by field contents on Ethernet, IP, UDP and TCP headers
  • Configurable, either deterministic or random, time delays can be inserted in every filter
  • Ability to replicate complex network dynamic by means of modifying Bandwidth and QoS parameters
  • Capable of processing and computing statistics over fractions of the Ethernet traffic meeting specific conditions
  • Detailed event log window with per flow viewing of the events.
  • Remote access via VNC

Applications

  • Verify the tolerance and the quality of video, audio or data applications either working in development laboratories or directly connected to commercial networks
  • Test QoS factors of Multi-play applications including critical Data Access, Video Streaming, Internet, VoIP, IMS, HDTV, and IPTV
  • Test routers, switches, VoIP handsets, VoIP PBXs, set-top boxes, and VoD servers
  • Evaluate the stability of switches and routers under static or dynamic traffic load conditions over minutes, hours ordays.
  • Quality of Service (QoS), Quality of Experience (QoE) testing
  • Satellite communications
  • Submarine links

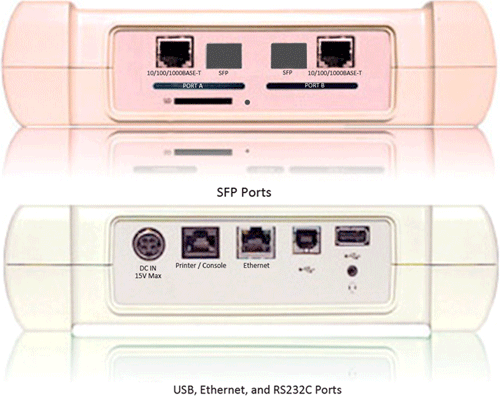

Hardware Panel



Front and Back Panel - IPNetSim™ Handheld
  • Dual RJ-45 port for electrical connection (10/100/1000BASE-T)
  • Dual optical and electrical SFPs ports operating up to 1 Gb/s
  • USB and Ethernet ports
  • Serial Port RS-232C

Operation

IPNetSim™ Handheld is inserted between two Ethernet segments in pass through mode while operating in bidirectional packet transfer mode. The emulation settings can be defined independently for 16 separate flows that can be filtered by several criteria including MAC, IP, TCP/UDP or User Mask.


Traffic Impairments

  • Traffic impairments can be defined over max. 16 traffic flows
  • Independent criteria can be used over each branch
  • Actions: Packet loss, error, duplication, delay, reordering

Selective Traffic Filters

IPNetSim™ Handheld supports Ethernet, VLAN, IPv4 and TCP / UDP filters. Filtering is configured by first enabling one or several filtering blocks and after that setting the filtering criteria.

  • 16 user-defined filters to select flows based on MAC, IP, VLAN, TCP, UDP, COS, DSCP.
  • Agnostics filters defined by 16 bits masks and user defined offset


Network Configuration


Traffic Statistics and Analysis

Tx Frame Analysis

  • Frames: Total number of frames transmitted by one tester port since the test started
  • Bytes: Total byte count transmitted by the test port from the beginning of the test. One byte is defined as an 8-bit word.
  • Broadcast frames: Total number of Ethernet broadcast frames transmitted from the beginning of the test. Broadcast frames carry the broadcast Ethernet address (FF:FF:FF:FF:FF:FF) in the destination field.
  • Multicast frames: Transmitted Ethernet multicast frames from the beginning of the test. Ethernet multicast frames have their multicast bit in their destination MAC address set to '1'. The multicast bit of a MAC address is the least significant bit of the more significant address byte.
  • Control frames: Total number of Ethernet MAC control and supervision frames transmitted from the beginning of the test. Ethernet control frames are recognized due to an special Ethertype (Type / Length field) value (0x8808).
  • Tagged frames: Total number of Ethernet VLAN frames transmitted from the beginning of the test. IEEE 802.1Q VLAN frames contain an special Ethertype (Type / Length field) value (0x8100).
  • FCS errored frames: Frames with FCS errors transmitted from the beginning of the test. An FCS errored frame may be the result of bit error insertion or a forwarded frame with a previous FCS error.

Rx Frame Analysis

  • Frames: Total number of frames received by one tester port since the test started.
  • Bytes: Total byte count received by the test port from the beginning of the test. One byte is defined as an 8-bit word.
  • Broadcast frames: Total number of Ethernet broadcast frames received from the beginning of the test. Broadcast frames carry the broadcast Ethernet address (FF:FF:FF:FF:FF:FF) in the destination field.
  • Multicast frames: Received Ethernet multicast frames from the beginning of the test. Ethernet multicast frames have their multicast bit in their destination MAC address set to '1'. The multicast bit of a MAC address is the least significant bit of the more significant address byte.
  • Control frames: Total number of Ethernet MAC control and supervision frames received from the beginning of the test. Ethernet control frames are recognized due to a special Ethertype (Type / Length field) value (0x8808).
  • Flow control frames: Total number of Ethernet Pause frames received from the beginning of the test. Pause frames are a special type of control frames and therefore their Ethertype is 0x8808. The specific features of Pause frames is that their Opcode field is 0x0001 and their destination MAC address is 01:80:C2:00:00:01 (a multicast MAC address).
  • Tagged frames: Total number of Ethernet VLAN frames received from the beginning of the test. IEEE 802.1Q VLAN frames contain an special Ethertype (Type / Length field) value (0x8100).
  • FCS errored frames: Count of all the FCS errors detected from the beginning of the test. A frame with a FCS error is a frame with a legal size which contains an invalid FCS field. FCS errors are caused by transmission errors. An optical Ethernet link with a poor power budget may experience FCS errors
  • Oversized frames: Total number of received frames which are larger than the configured MTU.
  • Undersized frames: Total number of received frames which are smaller than 64 bytes.
  • Jabbers: Jabber count from the beginning of the test. A Jabber is defined as a frame greater than 1518 bytes with a bad CRC.

Specifications

Networking Features

Protocol Support

  • 10, 100, 1000 Mbit/s Ethernet
  • IP, TCP/UDP, IEEE 802.3, IEEE 802.1Q support
  • IP packet: IPv4 (IETF RFC 791).
  • Traffic impairments can be defined over max. 16 traffic flows
  • Independent criteria can be used over each branch
  • Actions;: Packet loss, error, duplication, delay, reordering

Ethernet Filters

  • Ethernet flow: MAC origin, destination, group of address based on defined masks
  • Ethernet type and selection mask
  • VLAN and selection mask
  • CoS and selection mask

IP Filters

  • IP address origin, destination, and masks.
  • Traffic flow selection per transported protocol
  • Traffic flow selection based on DSCP with optional DSCP filters
  • Field contents at TCP/UDP layer port with optional port filters

Delay and Jitter

  • Predefined deterministic latency or random jitter using uniform and exponential distribution
  • Uniform distribution: minimum delay (Tmin) and maximum delay (Tmax)
  • Exponential distribution: minimum delay (Tmin) and average delay (Tavg)
  • Shaping filter defined by transmission rate (r) and deep (T)

Loss

  • Traffic loss deterministic and random
  • Loss defined by time start / time duration, or first frame / number of frames
  • Deterministic loss: unique, burst, periodical burst
  • Random loss: constant and Gilbert-Elliott

Errors

  • Traffic error deterministic and random
  • Deterministic errors defined by time start, or frame number
  • Random errors defined by probability

Duplication/
Re-ordering

  • Traffic duplication defined by deterministic and random events
  • Deterministic duplication defined by time or frame number
  • Random duplication defined by event probability

Results

  • Minimum, average and max delay
  • Counters and statistics for packet loss, errors, duplications and reordering

Design

Performance

  • Jumbo frames support up to 17 kBytes
  • Full Duplex operation at 1 Gbit/s or 1,5 Mframes/s
  • Accuracy better than 10-6 secs. at 1 Gbit/s
  • Performance and accuracy 100% independent of the line bit rate

GUI

  • Configuration and management on web browser
  • Configuration and management on CLI thought SSH and Telnet

Interfaces (Ports)

  • 2xGigabit Ethernet interfaces electrical and optical (SFPs based)
  • Bidirectional operation through Ethernet supporting 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-SX and 1000BASE-LX
  • Management Fast Ethernet

Operating System

  • Linux operating system

Model

  • Hand/held, battery operated, double optical port, double electrical ports, 10/100/1000 Gbit/s

Ergonomics

Hand-held model

  • Display 480 x 272 TFT full color screen
  • Dimensions: 223 mm x 144 mm x 65 mm
  • USB and Ethernet ports
  • Serial Port RS-232C
  • Rechargeable Batteries continuous working for 8 hours. Fast recharging time
  • AC Power Adapter Input: 100 ~ 240 V AC, 50/60 Hz,
  • Operating Temperature 0ºC ~ 50º C Storage Temperature -20ºC ~ 70ºC Humidity 5% ~ 95%
  • Soft LEDS All events at a glance

Emulation Features - Summary

Features

IPNetSim™ Handheld

Emulated WAN links (per port pair)

15

Form

Handheld-Battery Operated-Weight-1.1kg

Port pairs per unit

1

Interface Type

2 x RJ-45, 2 x SFP+

Max.Packet Rate

 1.5 Mframes/s

Bandwidth emulation

1 Gbps

Packet filtering

  • Source and destination IP address
  • MAC origin, destination
  • Ethertype and selection mask
  • VLAN and selection mask
  • CoS and selection mask
  • DSCP, port
  • Generic filters

Latency & Jitter

  • 0 ms – 10,000 ms in 0.1 ms increments
  • Constant
  • Random uniform
  • Random exponential

Packet Loss Models

  • Deterministic loss: unique, burst, periodical burst
  • Random loss: constant and Gilbert-Elliott
  • Loss defined by time start / time duration, or first frame / number of frames

Packet Error Models

  • Deterministic errors defined by time start, or frame number
  • Random errors defined by probability

Packet Reordering

                              (Through, Random)

Packet Duplication

 (Random)

Jumbo frames

Results

  • Minimum, average and max delay
  • Dedicated Counters and statistics per filter for packet loss, errors, duplications and reordering

Statistics download

  • Frame counts
  • Report storage and export through attached USB port

GUI

  • Built-in (keyboard and screen)
  • Remote VNC (PC, iPhone, Mobile...)

Full CLI

SSL and SSH secure access



Buyer's Guide

Item No. Item Description

IPN701

IPNetSim™ Handheld Network Impairment Generator

IPN702

IPNetSim™ Handheld Remote Option







Related Hardware

IPN010

IPNetSim™ - 100Mbps of through bandwidth

IPN100

IPNetSim™ - 1Gbps of through bandwidth

IPN400

IPNetSim™ - 1Gbps w/ 4 links through bandwidth

IPN601

IPNetSim™ - 1 Gbps MultiStream - 4 x 1000 /100 /10 Mbps

IPN610

IPNetSim™ - 10 Gbps MultiStream - 4 x 10,000 / 1000 / 100 / 10 Mbps
