Overview

UMTS (Universal Mobile Telecommunications System) being an access network in the mobile communication area provides a common interface to both GSM and GPRS core network. UMTS is capable of handling both Circuit-Switched (CS) as well as Packet-Switched (PS) data simultaneously through its UTRAN network. UMTS separates the user plane from control plane, radio network plane from the transport network plane, access network from the core network, and access stratum from the non-access stratum. Separation of transport network subsystem and radio network subsystem enables the UMTS to use multiple transport layer mechanism.

GL Communications supports the following types of UMTS analyzers:

  • For UMTS over IP transport
    • GL's UMTS Protocol Analyzer (PKV103) is available as an optional module within PacketScan™ analyzer (PKV100) or PacketScan™ HD analyzer (PKV120/PKV122) upon additional licensing. GL's UMTS Analyzer over IP offers powerful features to capture, monitor, decode, and collect statistics of UMTS signaling messages over IuCS, and IuPS interfaces. Additionally, with the support of PKV105 license PacketScan™ can handle MAP, CAP, and INAP interfaces. For more details, visit Sigtran Analyzer.
  • For UMTS over TDM transport
    • T1 E1 Real-time UMTS Analyzer (XX155) is available as an optional module within T1 E1 Analyzer. With this software, the T1 E1 Analyzer permits continuous real-time monitoring of ATM based UMTS signaling over Iub, Iur, IuCS, and IuPS interfaces. (Pre-requisites: GL's field proven E1 or T1 internal cards or USB based external units, required licenses and Windows® System)
    • T1 E1 Offline UMTS Analyzers (OLV155) is available as an independent software that allows to decode and analyze pre-recorded traces of ATM based UMTS signaling over IuCS, and IuPS interfaces.  (Pre-requisites: Hardware Dongle, and Windows® System)

GL's UMTS Protocol Analyzer is capable of capturing, decoding and performing various test measurements across UMTS network. It helps in fault diagnosis and troubleshooting of UMTS network.

In addition, it supports ATM as well as IP as the underlying transport layer. ATM based UMTS network is more popular since it ensures various QoS and Classes of Services to the end user.  Over ATM, the analyzer is also capable of capturing & reassembling frames that were transmitted with Inverse Multiplexing. With Inverse Multiplexing in ATM (IMA) feature, up to 8 T1 E1 links can be combined to form a high-speed connection, providing flexible bandwidth provisioning options. ATM cells are transmitted across multiple interfaces in a cyclical fashion, and recombined to form the original stream.

Highlights

  • Call Trace capability over IuCS and IuPS interfaces
  • Decodes different control plane protocols i.e. NBAP, RNSAP, RANAP, ALCAP, SSCOP etc and user plane protocols i.e. Iu-UP, Iu-FP, AMR etc
  • Decode NAS protocols (i.e. CC/MM/SM/SMS/GMM) along with the UTRAN specific protocols

Over TDM

  • Streams can be captured on the selected time slots (contiguous or non-contiguous), sub-channels or full bandwidth. Frames may also be contained in either one, n x 64 kbps, or n x 56 kbps data channels.
  • Supports ATM mapping, scrambling, and inverse multiplexing (IMA) options
  • CRC verification for AAL5 carrying packet data
  • Ability to configure VPI/VCI values for PVCs carrying NBAP, RNSAP, RANAP and ALCAP messages

Related Applications

Bridge and Monitor Connections

UMTS over IP

Supports decode and analyze UMTS protocol stack on NBAP, RNSAP, RANAP and more over IuCS, IuH, and IuPS interfaces.

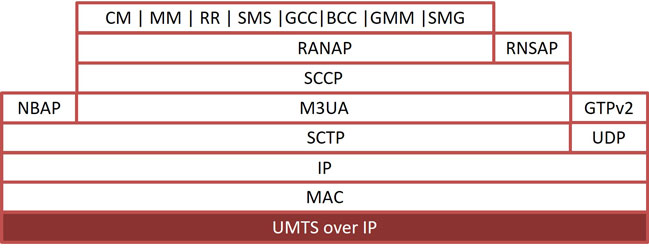

IP Protocol Stack
UMTS over IP
Supported Protocols Standard / Specification Used
RANAP 3GPP TS 25.413 V6.3.0 (2004-09)
RNSAP 3GPP TS 25.423 V6.4.0 (2004-12)
NBAP 3GPP TS 25.433 V6.3.0 (2004-09)
M3UA RFC 3332
SCCP ITU ITU-T Q.711-Q.714
GMM (GPRS Mobility Management) 3GPP TS 24.008 V5.0.0
CC 3GPP TS 24.008 V5.0.0
MM 3GPP TS 24.008 V5.0.0
RR 3GPP TS 04.18 V8.13.0
GCC (Group Call Control) 3GPP TS 44.068 V9.0.0
BCC (Broadcast Call Control) 3GPP TS 44.069 V9.0.0
SMG (GPRS Session Management) 3GPP TS 24.008 V5.0.0
SMS 3GPP TS 03.40 V7.5.0 & 3GPP TS 04.11 V7.1.0 GSM 03.38 version 7.2.0

UMTS over TDM

Supports analysis of UMTS protocols such as Iub-Interface, IuCS/IuPS-Interface, Iur-Interface.

UMTS over TDM
Supported Protocols Standard / Specification Used
ATM ITU-T I.361
AAL ITU-T I.363
AAL2 Class B (ITU-T I.363.2)
AAL5 Class C & D (ITU-T I.363.5)
SSCOP ITU-T Q.2110
SSCF for UNI ITU-T Q.2130 (07/94)
AAL Type 2 (ALCAP) ITU-T Recommendation Q.2630.1
NBAP 3GPP TS 25.433 V6.3.0 (2004-09)
Iub FP GPP TS 25.427 V6.1.0 (2004-12) and 3GPP TS 25.435 V6.1.0(2004-03)
RANAP 3GPP TS 25.413 V6.3.0 (2004-09)
Iu-UP GPP TS 25.415 V6.1.0
MTP3-B ITU-T Recommendation Q.2210
RNSAP 3GPP TS 25.423 V6.4.0 (2004-12)
SCCP ITU ITU-T Q.711-Q.714
SCCP ANSI ANSI T1.112-1996
SCTP RFC 2960
IP RFC 791
UDP RFC 768
GMM (GPRS Mobility Management) 3GPP TS 04.08 V7.19.0
GSM CC 3GPP TS 04.08 V7.17.0
GSM MM 3GPP TS 04.08 V7.17.0
SMG (GPRS Session Management) 3GPP TS 04.08 V7.19.0
SMS 3GPP TS 03.40 V7.5.0 & 3GPP TS 04.11 V7.1.0 GSM 03.38 version 7.2.0
AMR 3GPP TS 26.101 V6.0.0
SSSAR ITU-T I.366.1
UMTS MAC RLC 3GPP TS 25.321 V6.1.0 and 3GPP TS 25.322 V6.1.0
RRC 3GPP TS 25.331 V6.4.0
M3UA RFC 3332

Screenshots

UMTS over IP

 Summary, Detail, Hexdump view

Summary, Detail, Hexdump view

Protocol Filters

Protocol Filters

CDR and Statistics View

CDR and Statistics View

UMTS over TDM

Summary, Detail, Hexdump view

Summary, Detail, Hexdump view

Stream Selection

Stream Selection

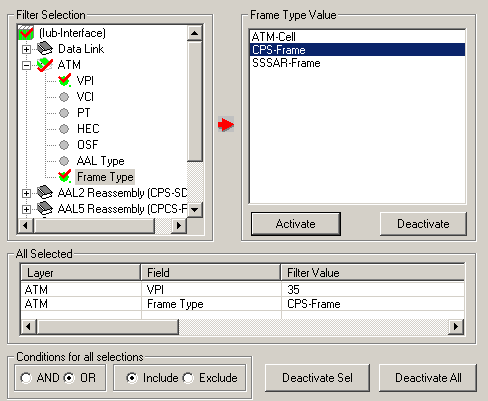

Protocol Filters

Protocol Filters

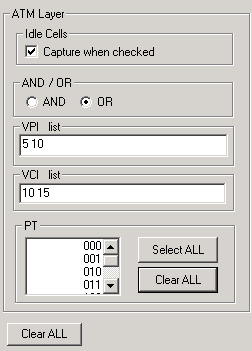

Real-time Capture Filter

Real-time Capture Filter

Capture Filter and Reassembly

Capture Filter and Reassembly

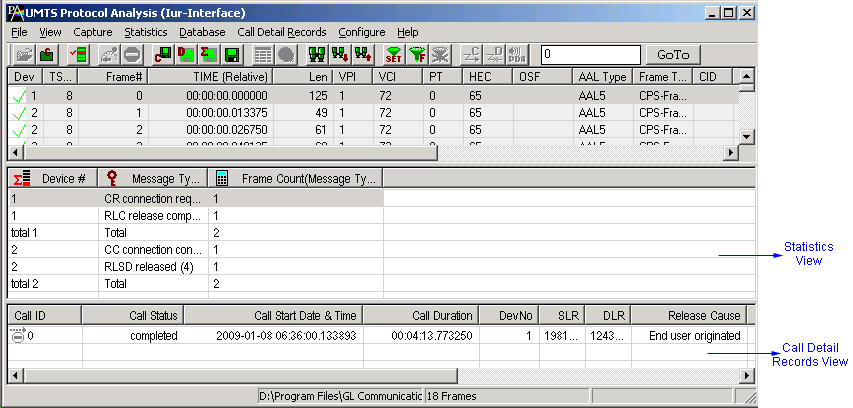

Statistics and Call Detail Records View

Statistics and Call Detail Records View

Enhanced Trace Saving Options

Enhanced Trace Saving Options

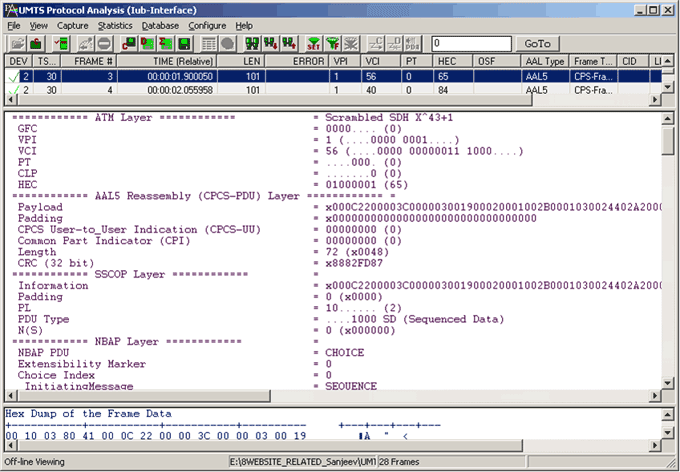

NBAP (Node B Application Part) Decode

NBAP (Node B Application Part) Decode

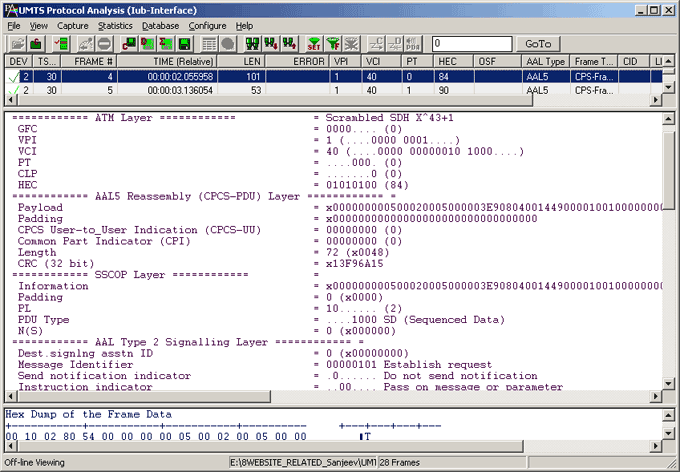

ALCAP Decode

ALCAP Decode

Captured ATM frames with IMA

Captured ATM frames with IMA

Capture Filter and Reassembly

Capture Filter and Reassembly

Resources

Please Note: The XX in the Item No. refers to the hardware platform, listed at the bottom of the Buyer's Guide, which the software will be running on. Therefore, XX can either be ETA or EEA (Octal/Quad Boards), PTA or PEA (tProbe Units), XUT or XUE (Dual PCIe Express) depending upon the hardware.

Item No. Item Description
XX165 T1 or E1 UMTS Protocol Analyzer
OLV165 Offline UMTS Protocol Analyzer
