Ethernet/IP Tester

Multi-Functional Ethernet Test Solution

Ethernet Loopback Testing with PacketExpert™

PacketExpert™ is a portable GigE Ethernet tester that supports loopback testing. It can be used to test the functionality of Ethernet devices and networks. PacketExpert™ supports layer-wise loopback as well as smart loopback. Smart Loopback handles stacked VLAN and stacked MPLS automatically.

  Request a Demo / Quote   Brochure
Ethernet tester loopback testing packetexpert™ 10GX

PacketExpert™ can automatically loopback packets from the destination to the source. PacketExpert™ supports layer-wise loopback as well as smart loopback. Smart Loopback handles stacked VLAN and stacked MPLS automatically.

PacketExpert™ 10GX supports loopback capability on all 1 Gbps ports and two 10 Gbps ports.

Loopback Types

  • Smart Loopback - Analyzes incoming traffic, automatically detects and swaps Source and Destination MAC and IP addresses and UDP ports before sending back the packet
  • Layer 1 - Loops back incoming packets as is
  • Ethernet - Swaps Source and Destination MAC addresses before sending back the packet
  • IP - Swaps Source and Destination MAC addresses, IP addresses before sending back the packet
  • UDP - Swaps Source and Destination MAC addresses, Destination IP addresses, and UDP ports before sending back the packet
PacketExpert 10g BERT

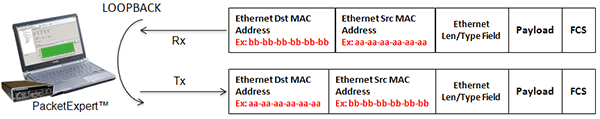

Layer 2 -Ethernet swaps Source and Destination MAC addresses

Layer 2 -Ethernet swaps Source and Destination MAC addresses

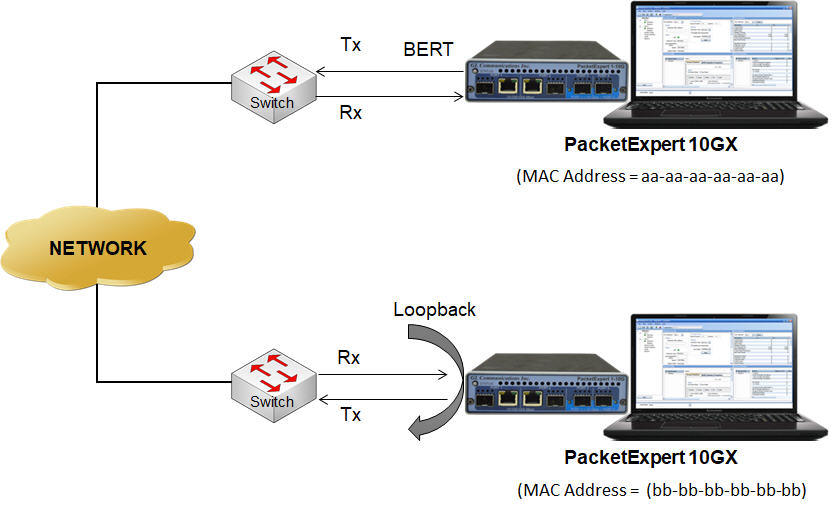

Loopback facilitates end-to-end testing when the other end is in a remote place. In such cases, one PacketExpert™ can be put in constant loopback at the remote end, and bit error rate tests can be started / stopped anytime at the local end.

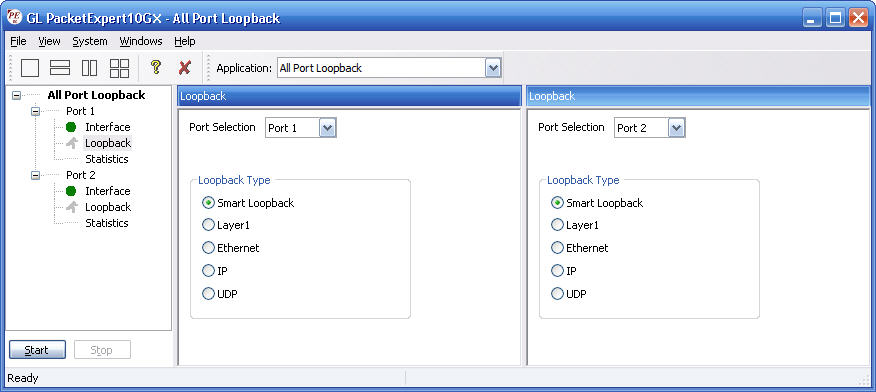

Loopback Configuration on 10G Ports

Loopback Configuration on 10G Ports

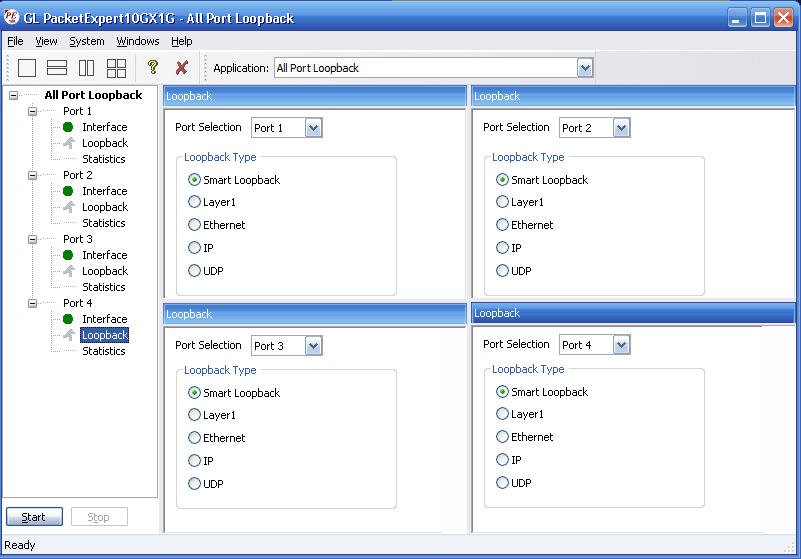

Loopback Configuration on 1G Ports

Loopback Configuration on 1G Ports



Port-wise Frame Statistics

Detailed statistics per port are provided. In addition to statistics like Frame Count, Frame Rate, Link Utilization (Layer1 line rate in %), Data Rate (Layer 2 data rate in Mbps), etc., statistics are provided based on various categories like Frame Type (Broadcast, Multicast, VLAN), Frame Lengths (64, 65-127, 1024-1518, Oversized, Undersized), Protocol Type (IPv4, IPv6, UDP, TCP, ICMP, IGRP etc.).

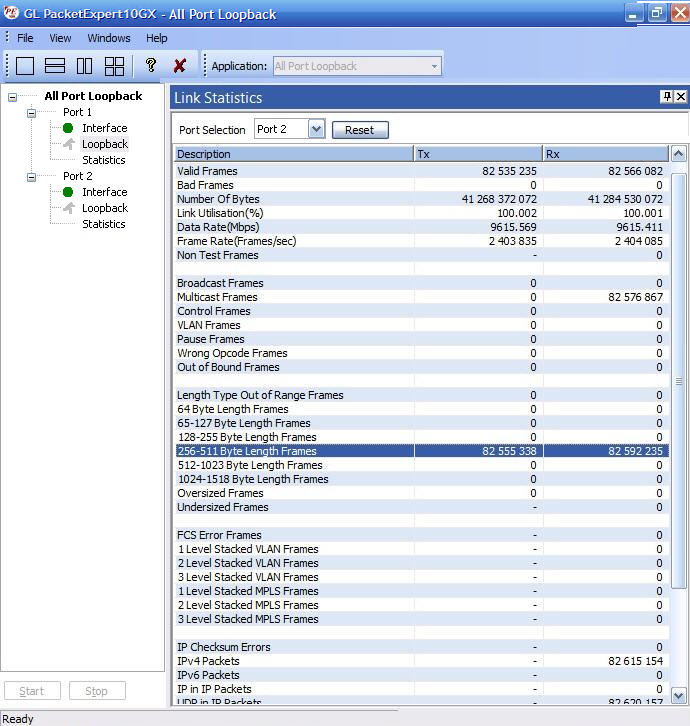

Loopback Statistics on 10G Ports

Loopback Statistics on 10G Ports
